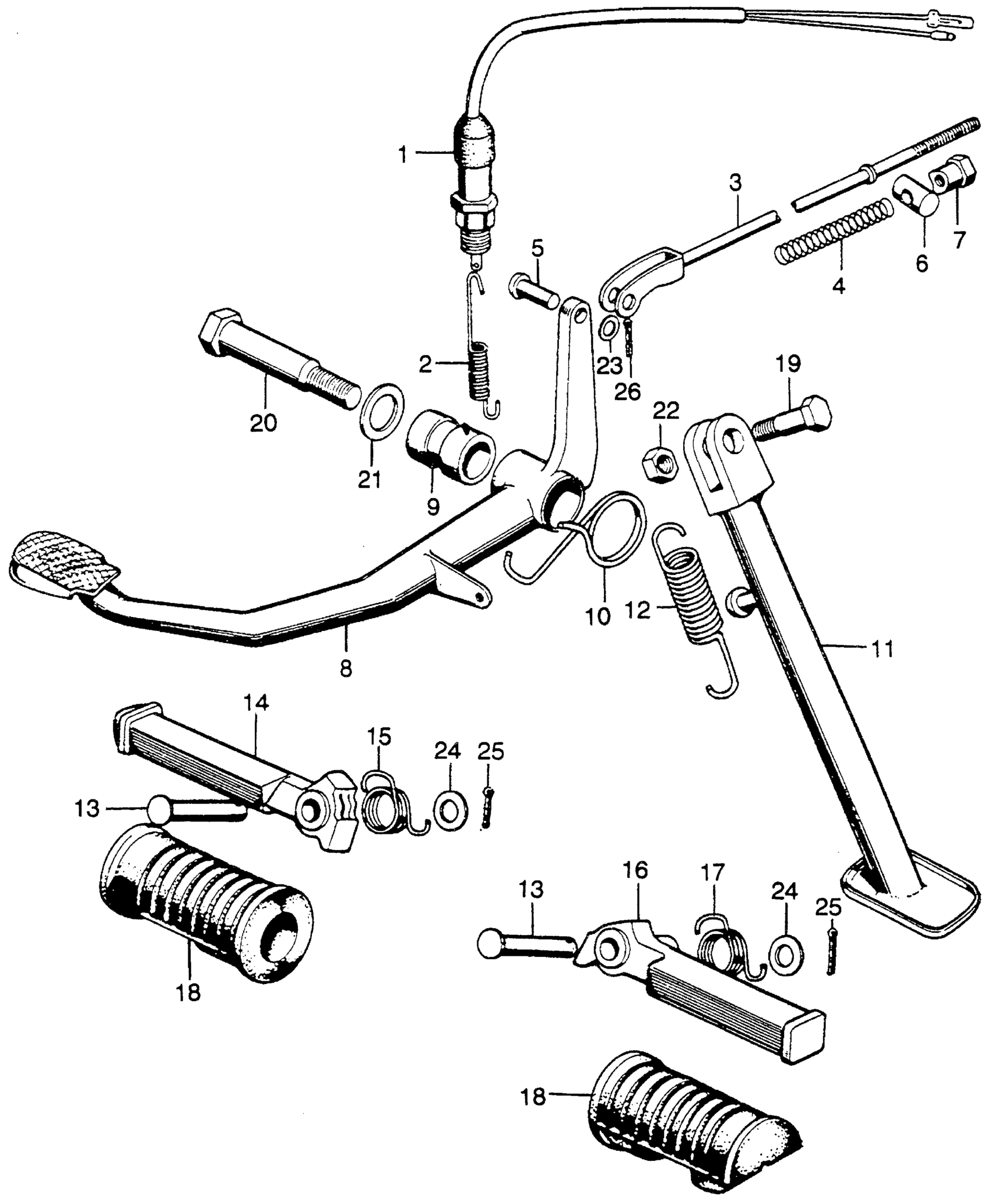

Honda SL175A MOTORCYCLE, JPN, VIN# SL175-1000001 BRAKE PEDAL + STAND Diagram

#

Description
Price

1

SWITCH ASSY., STOP This part replaces 35350-028-000.

35350-098-005

Unavailable

1

SWITCH ASSY., STOP This part replaces 35350-051-000.

35350-098-005

Unavailable

1

SWITCH ASSY., STOP This part replaces 35350-098-003.

35350-098-005

Unavailable

1

SWITCH ASSY., STOP

35350-098-005

Unavailable

2

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-033-000

Unavailable

3

ROD, RR. BRAKE (NOT AVAILABLE)

43451-307-000

Unavailable

4

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

5

PIN A, BRAKE ROD JOINT This part replaces 43472-250-000.

95015-51000

Unavailable

5

PIN A, BRAKE ROD JOINT

95015-51000

Unavailable

6

JOINT B, BRAKE ARM This part replaces 43453-250-000.

95015-32001

$1.49

6

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

6

JOINT, BRAKE ARM

95015-32001

$1.49

7

NUT B, BRAKE ROD ADJUSTING This part replaces 43457-250-000.

95015-42000

$1.83

7

NUT B, BRAKE ROD ADJUSTING This part replaces 43486-250-000.

95015-42000

$1.83

7

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

8

PEDAL, BRAKE (NOT AVAILABLE)

46500-313-020

Unavailable

9

COLLAR, BRAKE PEDAL PIVOT (NOT AVAILABLE)

46506-045-720

Unavailable

10

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-313-020

Unavailable

11

BAR, SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)

50530-313-030B

Unavailable

12

SPRING, SIDE STAND (NOT AVAILABLE)

50542-313-000

Unavailable

13

PIN, MAIN STEP BAR JOINT

50603-GS9-010

$5.46

13

PIN, MAIN STEP BAR JOINT This part replaces 50603-056-000.

50603-GS9-010

$5.46

14

ARM, R. STEP (NOT AVAILABLE)

50616-313-000

Unavailable

15

SPRING, R. STEP RETURN

50617-056-670

Unavailable

16

ARM, L. STEP (NOT AVAILABLE)

50642-313-000

Unavailable

17

SPRING, L. STEP RETURN

50644-056-670

Unavailable

18

RUBBER, STEP

50661-310-000

$13.34

19

SCREW, SIDE STAND PIVOT (NOT AVAILABLE)

90108-313-000

Unavailable

20

BOLT, RR. BRAKE PIVOT (NOT AVAILABLE)

90128-313-000

Unavailable

21

WASHER, RR. SWINGARM PIVOT BOLT

90526-268-000

$3.10

22

NUT, HEX. (10MM)

94002-10000-0S

$4.06

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

25

PIN, COTTER (1.6X25)

94201-16250

$1.49

26

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

26

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

26

PIN, COTTER (2.0X22)

94201-20220

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

26

PIN, COTTER (2.0X35)

94201-20350

$1.49

26

PIN, COTTER (2.0X22)

94201-29220

$1.49
