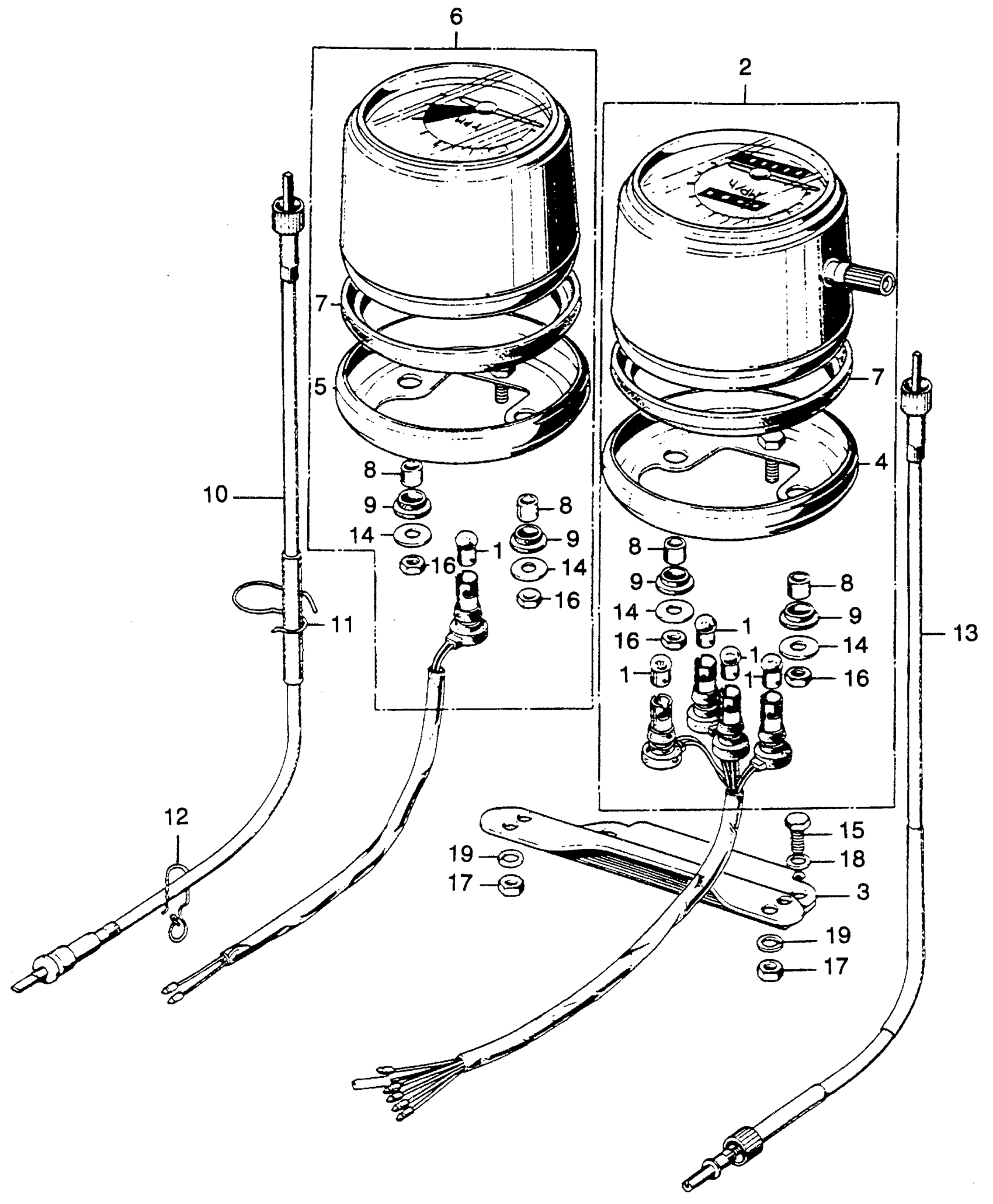

Honda SL125K2A MOTORCYCLE, JPN, VIN# SL125S-1200001 TO SL125S-1216831 SPEEDOMETER + TACHOMETER II Diagram

#

Description
Price

1

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

2

SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE)

37200-331-781

Unavailable

3

BRACKET, METER *NH83L* (OFF BLACK) (NOT AVAILABLE)

37212-331-780CT

Unavailable

4

RING, METER SETTING

37213-110-790

Unavailable

5

RING, METER SETTING (NOT AVAILABLE)

37213-331-000

Unavailable

6

TACHOMETER ASSY. (NOT AVAILABLE) This part replaces 37240-331-781.

37250-324-761

Unavailable

7

RUBBER, METER

37242-307-670

Unavailable

8

COLLAR, METER SETTING

37243-307-670

$2.44

9

RUBBER, METER SETTING

37244-307-670

$2.67

10

CABLE ASSY., TACHOMETER

37260-KB9-010

Unavailable

10

CABLE ASSY., TACHOMETER This part replaces 37260-331-010.

37260-KB9-010

Unavailable

11

CLAMP, TACHOMETER CABLE (NOT AVAILABLE)

37262-331-010

Unavailable

12

CLAMP B, TACHOMETER CABLE (NOT AVAILABLE)

37263-331-770

Unavailable

13

CABLE, SPEEDOMETER This part replaces 44830-034-000.

44830-041-000

Unavailable

13

CABLE, SPEEDOMETER

44830-041-000

Unavailable

13

CABLE, SPEEDOMETER This part replaces 44830-331-000.

44830-041-000

Unavailable

13

CABLE, SPEEDOMETER This part replaces 44831-034-000.

44830-041-000

Unavailable

14

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

14

WASHER (18MM)

90581-831-650

$1.87

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (8MM)

94001-08000-0S

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, SPRING (8MM)

94111-08000

$1.49
