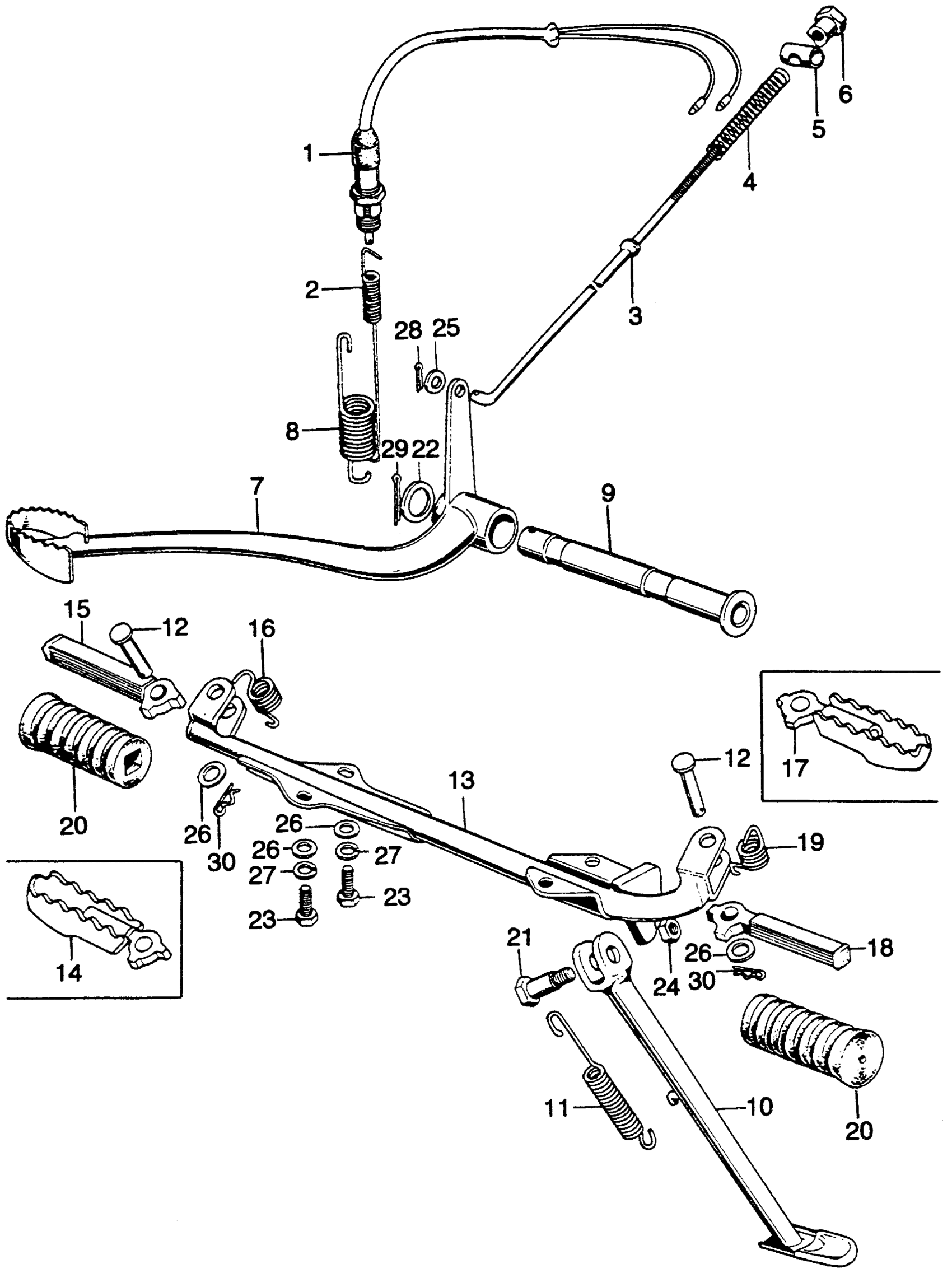

Honda SL125K1A MOTORCYCLE, JPN, VIN# SL125S-1100001 STEP BAR + SIDE STAND + BRAKEPEDAL Diagram

#

Description
Price

1

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

1

SWITCH ASSY., RR. STOP This part replaces 35350-292-003.

35350-KJ9-405

$16.97

1

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

2

SPRING, STOP SWITCH

35357-107-010

Unavailable

3

ROD, RR. BRAKE This part replaces 43450-331-770.

43451-KE6-830

Unavailable

3

ROD, RR. BRAKE

43451-KE6-830

Unavailable

4

SPRING A, BRAKE ROD This part replaces 43472-001-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

5

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

5

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

5

JOINT A, BRAKE ARM

95015-31001

$1.53

6

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

6

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

7

PEDAL, BRAKE *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE) This part replaces 46500-331-771CT.

46500-331-771SG

Unavailable

7

PEDAL, BRAKE *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

46500-331-771SG

Unavailable

8

SPRING, BRAKE PEDAL

46514-107-010

$5.99

9

PIPE, MAIN STAND PIVOT This part replaces 50526-331-000.

50526-383-670

Unavailable

9

PIPE, MAIN STAND PIVOT

50526-383-670

Unavailable

10

BAR, SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)

50530-331-770B

Unavailable

11

SPRING A, SIDE STAND This part replaces 50542-046-750.

95014-72102

$2.84

11

SPRING A, SIDE STAND This part replaces 95014-72100.

95014-72102

$2.84

11

SPRING A, SIDE STAND This part replaces 95014-72101.

95014-72102

$2.84

11

SPRING A, SIDE STAND

95014-72102

$2.84

12

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

12

PIN, STEP BAR JOINT

50603-033-010

$3.30

13

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50610-331-670B.

50610-110-790B

Unavailable

13

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-110-790B

Unavailable

15

ARM, R. STEP (NOT AVAILABLE)

50616-331-000

Unavailable

16

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

18

STEP, L.

50642-331-000

Unavailable

19

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

20

RUBBER, STEP

50661-331-770

$16.37

21

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

22

WASHER (17X22)

90521-028-000

$1.89

23

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

23

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

24

NUT, HEX. (10MM)

94002-10000-0S

$4.06

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, PLAIN (8MM)

94101-08000

$1.49

27

WASHER, SPRING (8MM)

94111-08000

$1.49

28

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

28

PIN, COTTER (1.6X25)

94201-16250

$1.49

29

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

29

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

29

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

29

PIN, COTTER (3.0X45)

94201-30450

$1.49

30

PIN, LOCK (8MM)

94251-08000

$1.49
