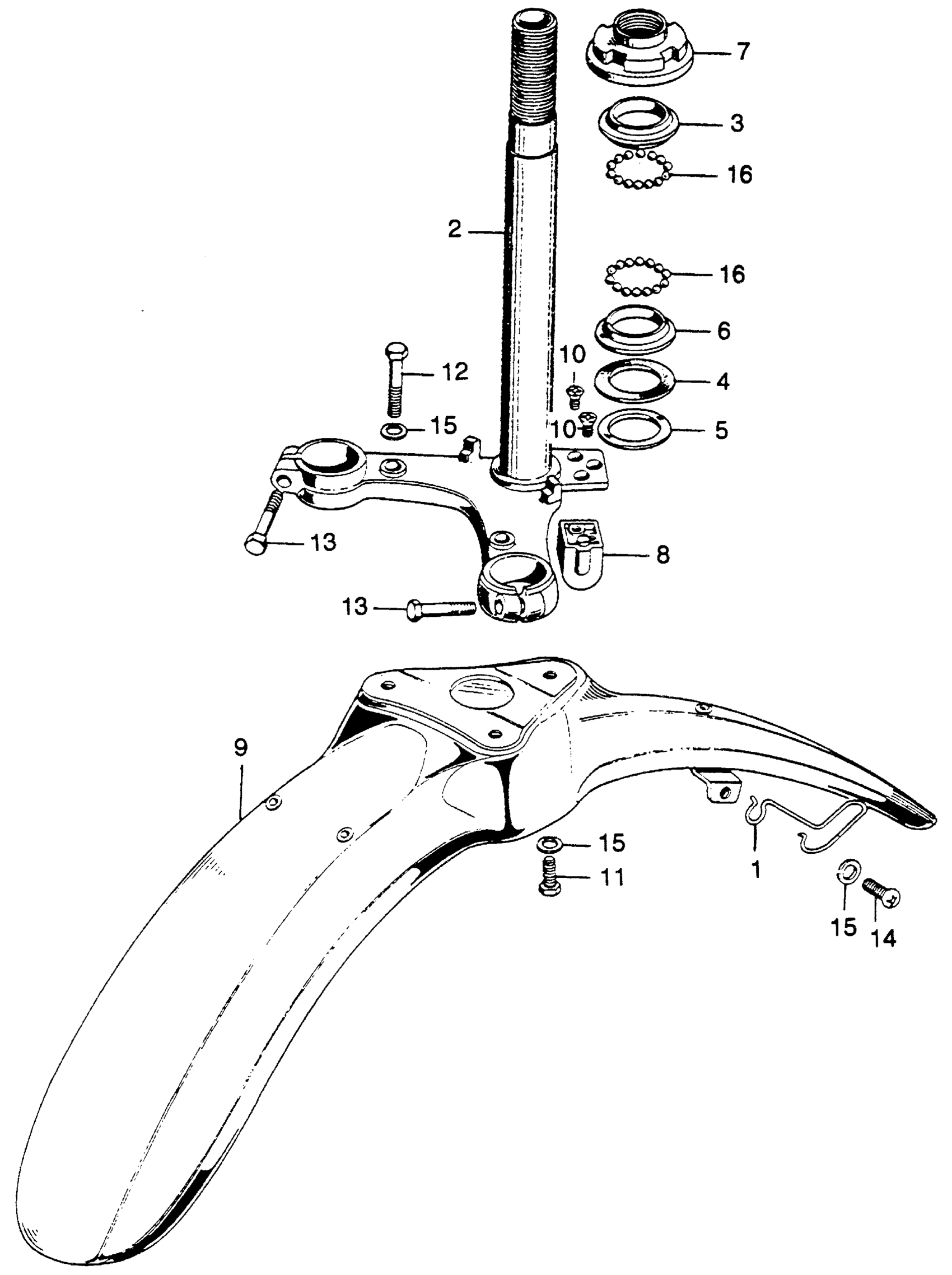

Honda SL125K1A MOTORCYCLE, JPN, VIN# SL125S-1100001 STEERING STEM + FRONT FENDER Diagram

#

Description
Price

1

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-331-770

Unavailable

2

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-074-000B

Unavailable

3

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

3

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

3

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$11.09

4

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

5

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

6

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

6

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

6

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.73

6

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$10.73

7

THREAD, STEERING HEAD TOP

53220-074-000

$15.84

8

SWITCH, HANDLE LOCK (NOT AVAILABLE)

35010-001-010

Unavailable

8

SWITCH, HANDLE LOCK (NOT AVAILABLE) This part replaces 53600-001-020.

35010-001-010

Unavailable

9

FENDER, FR. *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

61100-331-670MA

Unavailable

9

FENDER, FR. (NOT AVAILABLE)

61100-331-670Z

Unavailable

10

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

11

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

12

BOLT, HEX. (6X35) This part replaces 92000-06035.

92101-06035-0A

$1.77

12

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

12

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

12

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

12

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

12

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

13

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

13

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

13

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

14

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

14

SCREW, PAN (6X8)

93500-06008

$1.49

14

SCREW, PAN (6X8)

93500-06008-0A

$1.49

14

SCREW, PAN (6X8)

93500-06008-0H

$1.49

14

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
