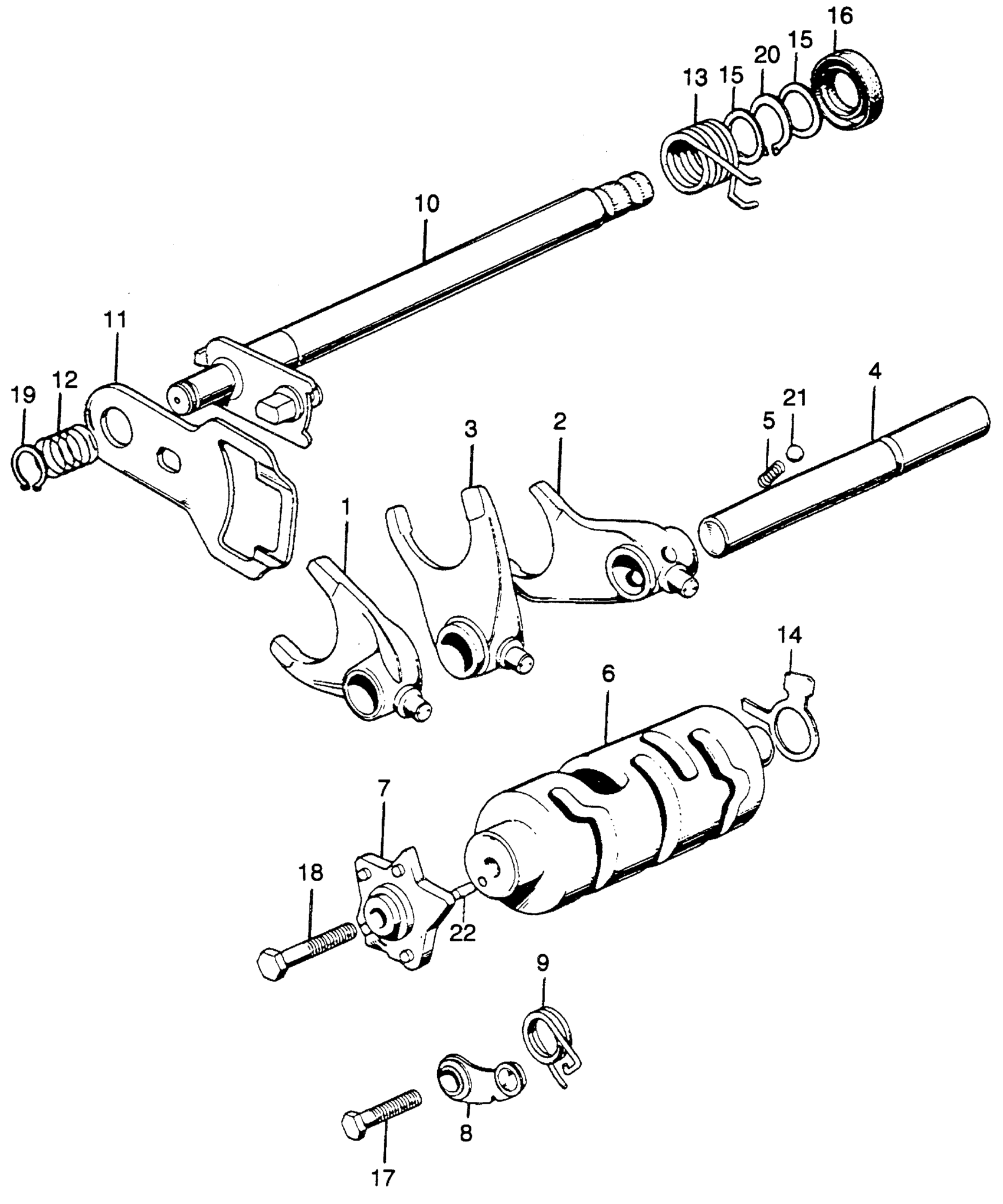

Honda SL125K1A MOTORCYCLE, JPN, VIN# SL125S-1100001 GEARSHIFT Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-107-000

$52.69

2

FORK, L. GEARSHIFT

24221-107-000

$72.95

3

FORK, CENTER GEARSHIFT This part replaces 24231-107-000.

24231-107-010

Unavailable

3

FORK, CENTER GEARSHIFT

24231-107-010

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE

24241-107-000

Unavailable

5

SPRING, BALL SETTING (NOT AVAILABLE)

24271-107-000

Unavailable

6

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-107-000

Unavailable

7

CAM, GEARSHIFT

24411-KCN-000

$28.74

7

CAM, GEARSHIFT This part replaces 24411-107-000.

24411-KCN-000

$28.74

7

CAM, GEARSHIFT This part replaces 24411-107-003.

24411-KCN-000

$28.74

7

CAM, GEARSHIFT This part replaces 24411-107-013.

24411-KCN-000

$28.74

8

STOPPER, GEARSHIFT DRUM

24430-324-000

Unavailable

9

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-107-761

Unavailable

10

SPINDLE, GEARSHIFT

24610-107-760

Unavailable

11

PLATE, GEARSHIFT

24621-107-760

$13.51

12

SPRING, GEARSHIFT PLATE

24631-107-000

$2.92

13

SPRING, GEARSHIFT RETURN

24651-107-000

$5.81

14

ROTOR, NEUTRAL SWITCH

35753-KG2-951

$4.76

14

ROTOR, NEUTRAL SWITCH This part replaces 35753-028-601.

35753-KG2-951

$4.76

15

WASHER, THRUST (14MM)

90451-001-000

$3.67

16

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

17

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

17

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

18

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

18

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

19

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

20

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

21

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

22

ROLLER (4X10)

96220-40100

$1.49
