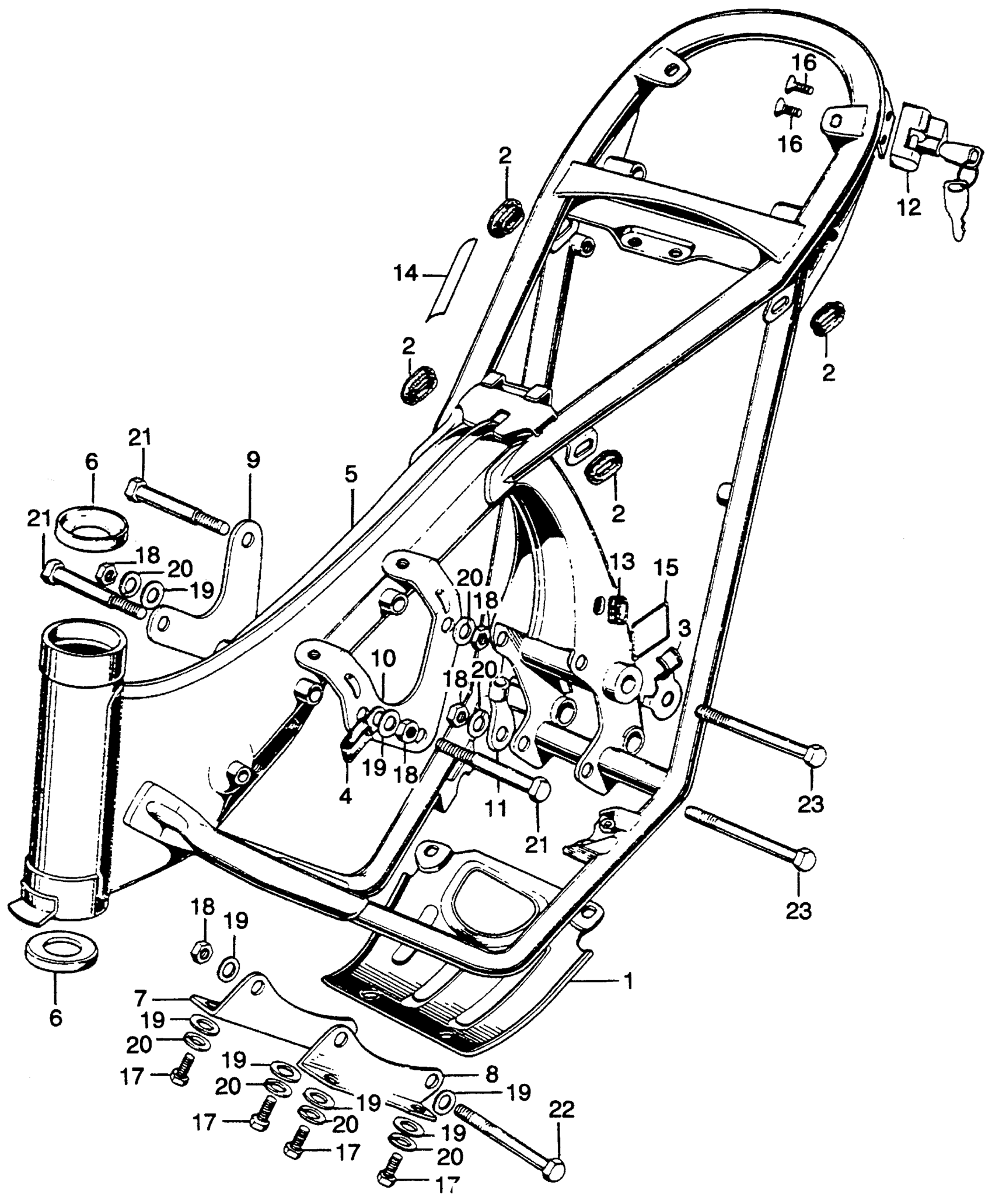

Honda SL125K1A MOTORCYCLE, JPN, VIN# SL125S-1100001 FRAME Diagram

#

Description
Price

1

PROTECTOR, CRANKCASE (NOT AVAILABLE)

11911-331-670

Unavailable

2

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

GROMMET A, AIR CLEANER HOUSING This part replaces 95020-52030.

17247-303-000

$8.13

3

CLIP, ALTERNATOR WIRE

32907-331-000

Unavailable

4

CLIP, COMBINATION SWITCH WIRE (NOT AVAILABLE)

32908-107-700

Unavailable

5

FRAME *NH1* (BLACK)

50100-331-771B

Unavailable

6

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

6

RACE, STEERING TOP BALL

50301-041-010

$12.39

6

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

7

PLATE, R. ENGINE HANGER *NH1* (BLACK)

50351-110-030B

Unavailable

8

PLATE, L. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50352-110-030B

Unavailable

9

PLATE, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50353-107-000

Unavailable

10

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE) This part replaces 50354-107-010.

50354-330-000

Unavailable

10

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50354-330-000

Unavailable

11

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

50356-107-000

Unavailable

12

HOLDER ASSY., HELMET (NOT AVAILABLE)

50710-110-781

Unavailable

13

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

14

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

14

LABEL, MUFFLER CAUTION This part replaces 87506-045-000.

87504-028-670

$2.92

15

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-331-770

Unavailable

16

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

17

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

17

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

18

NUT, HEX. (8MM)

94030-08000

$1.49

19

WASHER, PLAIN (8MM)

94101-08000

$1.49

20

WASHER, SPRING (8MM)

94111-08000

$1.49

21

BOLT, HEX. (8X70) This part replaces 95300-08070.

95301-08070-00

$2.47

21

BOLT, HEX. (8X70) This part replaces 95300-08070-00.

95301-08070-00

$2.47

22

BOLT, HEX. (8X90) (NOT AVAILABLE) This part replaces 95300-08090.

95300-08090-00

Unavailable

22

BOLT, HEX. (8X90) (NOT AVAILABLE)

95300-08090-00

Unavailable

23

BOLT, HEX. (8X111) This part replaces 95300-08111.

95300-08111-00

$2.92

23

BOLT, HEX. (8X111)

95300-08111-00

$2.92
