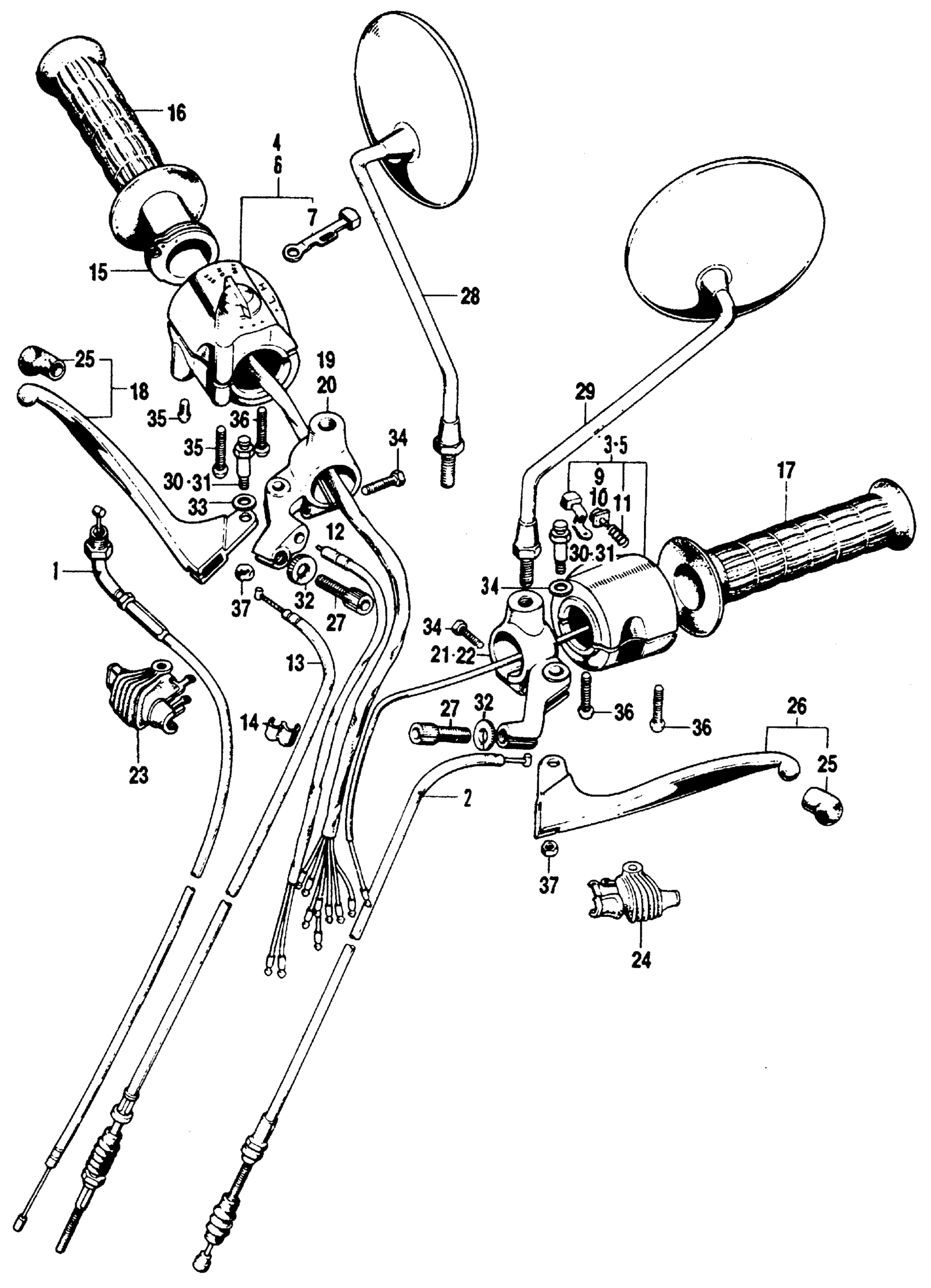

Honda SL100K3A MOTORCYCLE, JPN, VIN# SL100-1300001 TURN SIGNAL + LIGHTING SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-110-010

Unavailable

2

CABLE, CLUTCH

22870-KBG-A00

Unavailable

2

CABLE, CLUTCH This part replaces 22870-KV0-000.

22870-KBG-A00

Unavailable

2

CABLE, CLUTCH This part replaces 22870-110-000.

22870-KBG-A00

Unavailable

2

CABLE, CLUTCH This part replaces 22870-364-670.

22870-KBG-A00

Unavailable

4

SWITCH ASSY., LIGHTING & STOP

35250-110-791

Unavailable

5

SWITCH ASSY., HORN DIMMER

35250-310-003

Unavailable

7

KNOB, LIGHTING SWITCH (NOT AVAILABLE)

35315-235-000

Unavailable

9

BUTTON, HORN SWITCH PUSH

35317-001-310

$4.62

10

BUTTON, HORN SWITCH PUSH (NOT AVAILABLE) This part replaces 35317-235-000.

35317-310-810

Unavailable

10

BUTTON, HORN SWITCH PUSH (NOT AVAILABLE)

35317-310-810

Unavailable

11

SPRING, BUTTON

35318-259-000

$5.33

12

SWITCH ASSY., FR. STOP This part replaces 35340-102-003.

35340-GAN-620

$19.20

12

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$19.20

12

SWITCH ASSY., FR. STOP This part replaces 35340-401-681.

35340-GAN-620

$19.20

12

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$19.20

12

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

13

CABLE, FR. BRAKE This part replaces 45450-110-010.

45450-440-P00

Unavailable

13

CABLE, FR. BRAKE

45450-440-P00

Unavailable

13

CABLE, FR. BRAKE This part replaces 45450-440-405.

45450-440-P00

Unavailable

14

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

15

PIPE A, THROTTLE GRIP This part replaces 53141-240-000.

95014-51100

$17.62

15

PIPE A, THROTTLE GRIP

95014-51100

$17.62

16

GRIP, R. HANDLE This part replaces 53165-074-000.

95011-15100

Unavailable

16

GRIP, R. HANDLE

95011-15100

Unavailable

17

GRIP, L. HANDLE (NOT AVAILABLE) This part replaces 53166-074-000.

95011-15200

Unavailable

17

GRIP, L. HANDLE (NOT AVAILABLE)

95011-15200

Unavailable

18

LEVER, R. HANDLEBAR This part replaces 53170-074-670.

53175-KY0-980

$31.02

18

LEVER, R. HANDLEBAR This part replaces 53170-286-670.

53175-KY0-980

$31.02

18

LEVER, R. HANDLEBAR This part replaces 53170-329-000.

53175-KY0-980

$31.02

18

LEVER, R. HANDLEBAR This part replaces 53170-329-010.

53175-KY0-980

$31.02

18

LEVER, R. HANDLEBAR This part replaces 53170-369-700.

53175-KY0-980

$31.02

18

LEVER, R. HANDLEBAR This part replaces 53175-286-000.

53175-KY0-980

$31.02

18

LEVER, R. HANDLEBAR This part replaces 53175-329-000.

53175-KY0-980

$31.02

18

LEVER, R. HANDLEBAR This part replaces 53175-369-700.

53175-KY0-980

$31.02

18

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

20

BRACKET, R. HANDLEBAR

53171-312-003

$52.94

22

BRACKET, L. HANDLEBAR

53172-310-010

$56.00

23

COVER, R. CONTROL LEVER

53176-329-000

$12.41

24

COVER, L. CONTROL LEVER

53179-329-000

$15.07

25

CAP A, LEVER This part replaces 53180-286-000.

95010-16001

$5.97

25

CAP A, LEVER This part replaces 95010-16000.

95010-16001

$5.97

25

CAP A, LEVER

95010-16001

$5.97

26

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

26

LEVER, L. HANDLE

53178-369-700

$28.35

26

LEVER, L. HANDLE This part replaces 53190-074-670.

53178-369-700

$28.35

26

LEVER, L. HANDLE This part replaces 53190-286-670.

53178-369-700

$28.35

26

LEVER, L. HANDLE This part replaces 53190-329-000.

53178-369-700

$28.35

26

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

26

LEVER, L. HANDLE This part replaces 53190-369-700.

53178-369-700

$28.35

26

LEVER, L. HANDLE This part replaces 53190-371-980.

53178-369-700

$28.35

27

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

28

MIRROR, R. This part replaces 88110-074-000.

88110-329-730

Unavailable

28

MIRROR, R.

88110-329-730

Unavailable

29

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-074-000.

88220-329-730

Unavailable

29

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-329-730.

88220-329-730

Unavailable

31

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.75

32

NUT, FIXING This part replaces 90321-268-000.

90321-315-670

$7.31

32

NUT, FIXING

90321-315-670

$7.31

32

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

33

WASHER (7X12)

90501-310-000

$1.74

34

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

34

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

35

SCREW, PAN (5X6)

93500-05006-0A

$1.49

36

SCREW, PAN (5X24) (SOURCE: VINTAGE PARTS INC.)

93500-05024-0A

Unavailable

37

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM)

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
