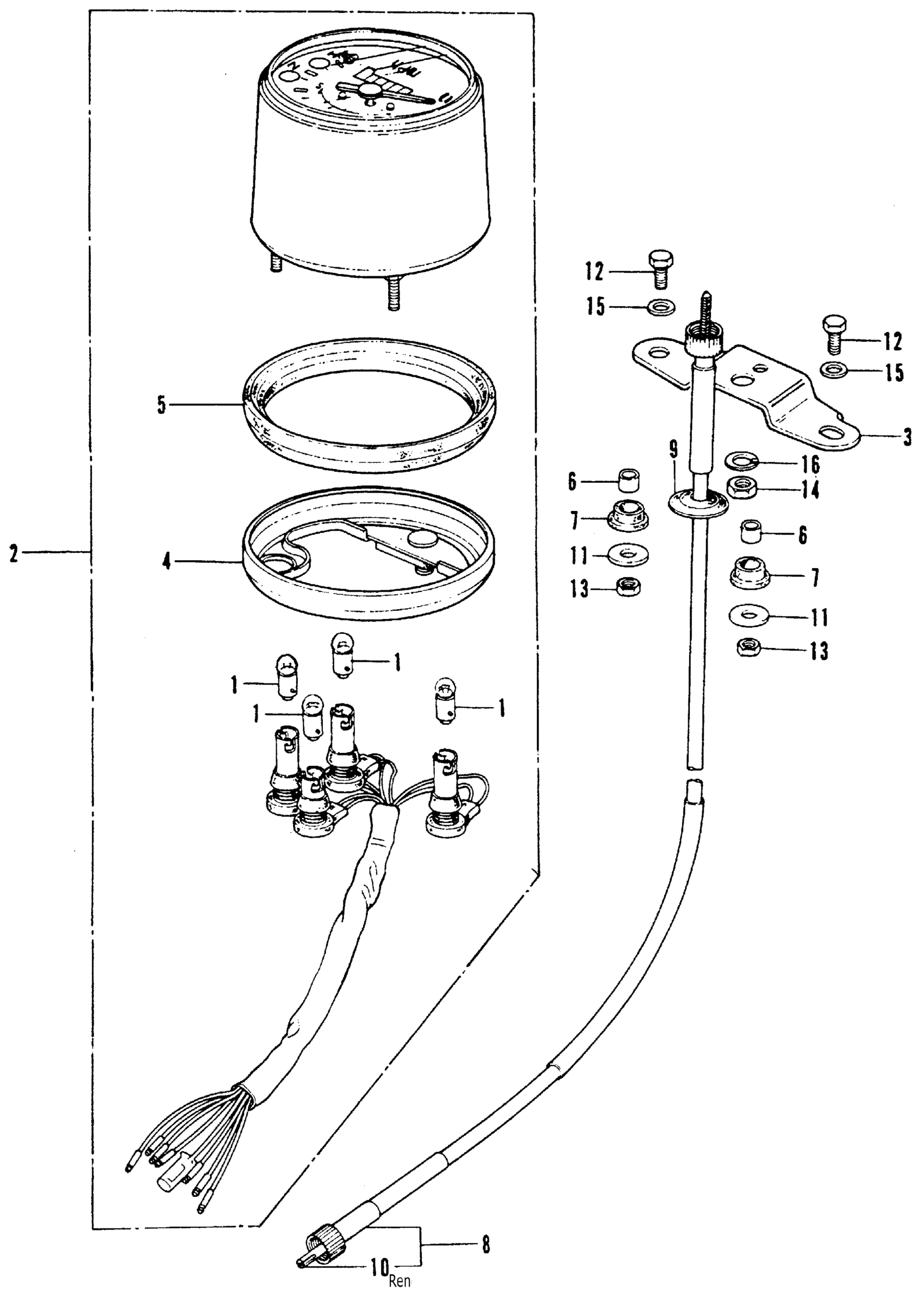

Honda SL100K3A MOTORCYCLE, JPN, VIN# SL100-1300001 SPEEDOMETER K3 Diagram

#

Description
Price

1

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

2

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-110-791

Unavailable

3

HOLDER, SPEEDOMETER (NOT AVAILABLE)

37212-110-790

$10.39

4

RING, METER SETTING

37213-110-790

Unavailable

5

RUBBER, METER

37242-307-670

Unavailable

6

COLLAR, METER SETTING

37243-307-670

$2.44

7

RUBBER, METER SETTING

37244-307-670

$2.67

8

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE)

44830-110-000

Unavailable

9

COVER, METER CABLE HOLE (NOT AVAILABLE) This part replaces 44831-106-300.

44834-391-670

Unavailable

9

COVER, METER CABLE HOLE (NOT AVAILABLE)

44834-391-670

Unavailable

10

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE)

44830-110-000

Unavailable

10

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE) This part replaces 44832-110-000.

44830-110-000

Unavailable

11

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

11

WASHER (18MM)

90581-831-650

$1.87

12

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

13

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM)

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (8MM)

94001-08000-0S

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

WASHER, SPRING (8MM)

94111-08000

$1.49
