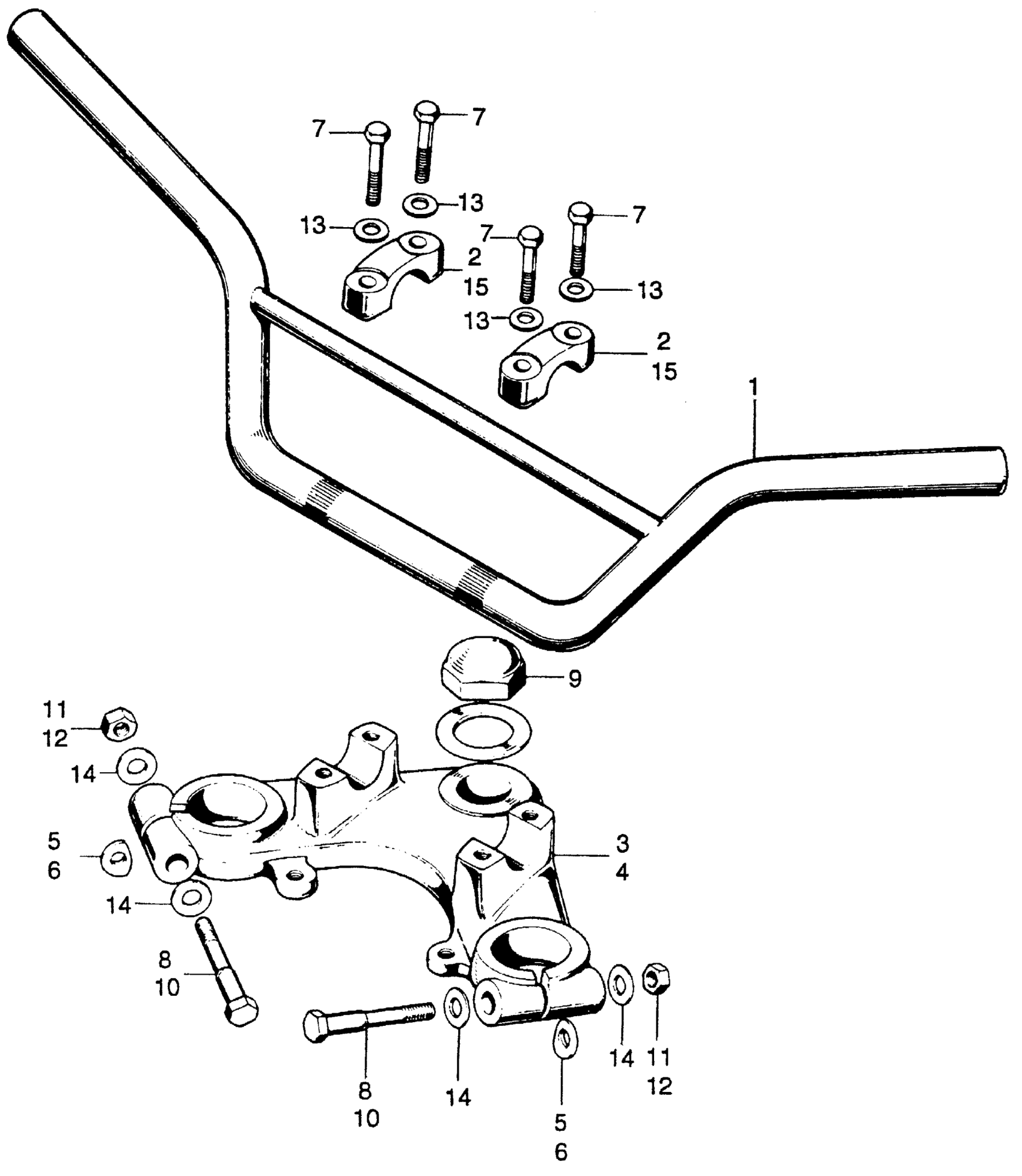

Honda SL100K3A MOTORCYCLE, JPN, VIN# SL100-1300001 HANDLEBAR + FORK TOP BRIDGE Diagram

#

Description
Price

1

HANDLEBAR (NOT AVAILABLE)

53100-110-700

Unavailable

4

BRIDGE, FORK TOP *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

53230-110-315SG

Unavailable

4

BRIDGE, FORK TOP *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE) This part replaces 53231-110-790CT.

53230-110-315SG

Unavailable

4

BRIDGE, FORK TOP *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE) This part replaces 53231-110-790SG.

53230-110-315SG

Unavailable

6

SPACER, FORK TOP BRIDGE (NOT AVAILABLE)

53235-300-000

Unavailable

7

BOLT, HEX. (6X28)

90117-065-000

$2.43

9

NUT, STEERING STEM This part replaces 90304-011-000.

90304-159-000

$6.71

9

NUT, STEERING STEM

90304-159-000

$6.71

9

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$6.71

10

BOLT, HEX. (8X56) This part replaces 93000-08056-0B.

93101-08056-0B

Unavailable

11

NUT, HEX. (8MM)

94001-08020-0S

$0.82

13

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

13

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

13

WASHER, PLAIN (6MM)

94101-06800

Unavailable

14

WASHER, PLAIN (8MM)

94101-08000

$0.76

15

HOLDER A2, HANDLEBAR (UPPER) This part replaces 95014-21200.

95014-21201

Unavailable

15

HOLDER A2, HANDLEBAR (UPPER)

95014-21201

Unavailable
