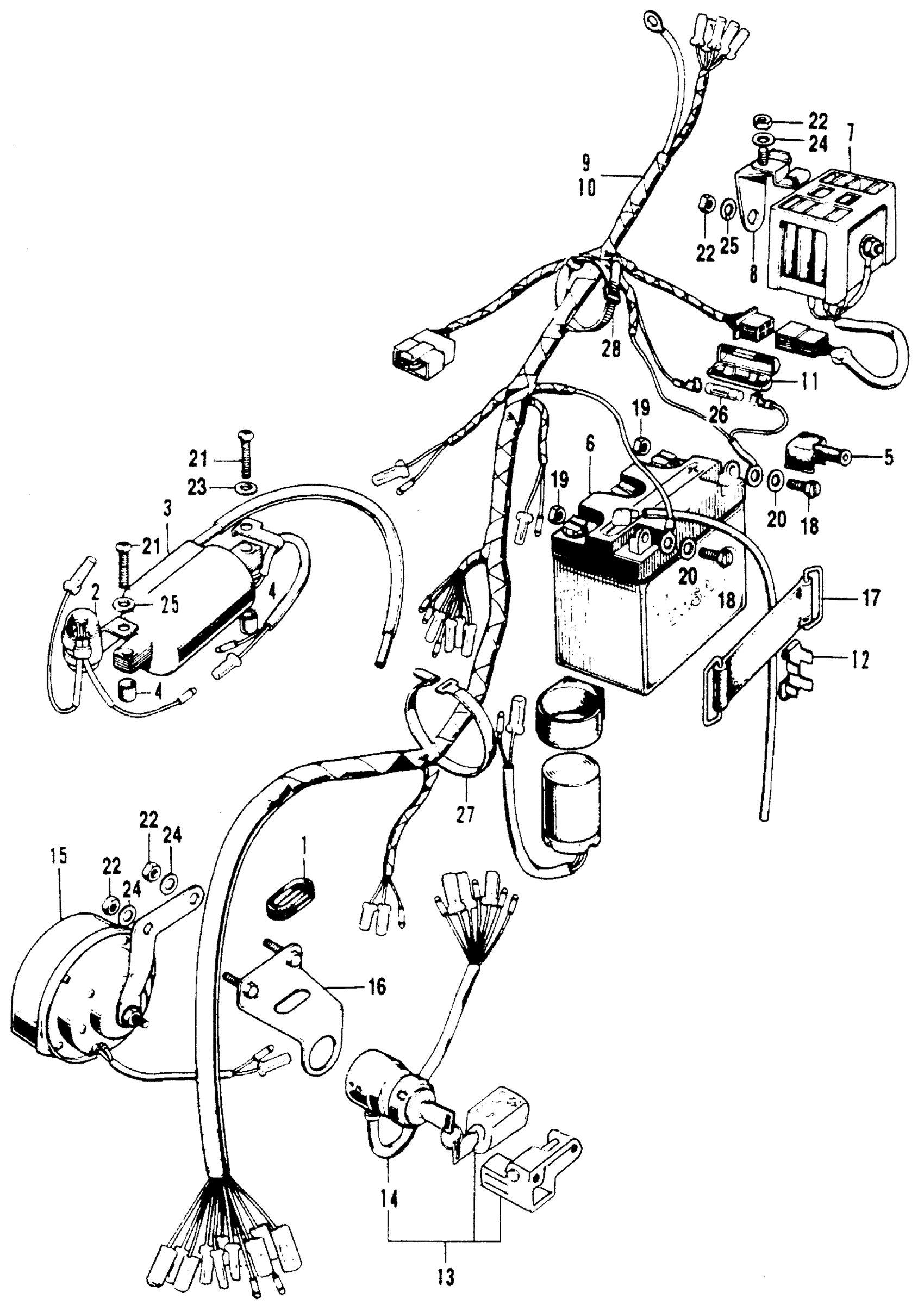

Honda SL100A MOTORCYCLE, JPN, VIN# SL100-100001 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-240-000

$2.92

2

CONDENSER ASSY. This part replaces 30250-107-000.

30250-330-003

Unavailable

2

CONDENSER ASSY.

30250-330-003

Unavailable

3

COIL, IGNITION This part replaces 30400-107-007.

30530-330-405

Unavailable

3

COIL, IGNITION This part replaces 30400-107-154.

30530-330-405

Unavailable

3

COIL, IGNITION

30530-330-405

Unavailable

4

COLLAR, IGNITION COIL SETTING This part replaces 30507-107-000.

30507-441-000

$2.92

4

COLLAR, IGNITION COIL SETTING

30507-441-000

$2.92

5

COVER, BATTERY TERMINAL (NOT AVAILABLE)

31468-107-000

Unavailable

6

BATTERY (6N6-3B) This part replaces 31500-110-671.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 31500-324-601.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 31500-329-671.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 31500-329-677.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 98202-63260.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 98203-63250.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 98203-63260.

31500-329-677AH

Unavailable

7

RECTIFIER

31700-107-782

Unavailable

7

RECTIFIER This part replaces 31701-107-701.

31700-107-782

Unavailable

8

STAY, SELENIUM RECTIFIER (NOT AVAILABLE) This part replaces 31705-110-000.

31707-110-000

Unavailable

9

WIRE HARNESS

32100-110-671

Unavailable

11

CASE, FUSE CONNECTOR

32111-230-000

$4.28

12

HOLDER, FUSE (NOT AVAILABLE)

32113-107-000

Unavailable

13

SWITCH KIT, MAIN

35030-110-781

Unavailable

14

SWITCH, IGNITION (NOT AVAILABLE)

35010-111-671

Unavailable

14

SWITCH ASSY., COMBINATION This part replaces 35100-111-671.

35100-324-761

Unavailable

14

SWITCH ASSY., COMBINATION This part replaces 35100-324-760.

35100-324-761

Unavailable

14

SWITCH ASSY., COMBINATION

35100-324-761

Unavailable

15

HORN ASSY. (NOT AVAILABLE)

38100-110-671

Unavailable

16

BRACKET, MAIN SWITCH (NOT AVAILABLE)

50375-107-000

Unavailable

17

BAND, BATTERY This part replaces 95012-15000.

95012-15001

$6.31

17

BAND, BATTERY

95012-15001

$6.31

18

BOLT, BATTERY TERMINAL (NOT AVAILABLE)

90122-107-000

Unavailable

19

NUT, BATTERY TERMINAL

90306-107-000

Unavailable

20

WASHER, BATTERY TERMINAL

90501-107-000

$1.20

21

SCREW, PAN (5X28) (NOT AVAILABLE)

93500-05028-4J

Unavailable

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

WASHER, PLAIN (5MM)

94101-05000

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

FUSE A (15A)

98200-11500

$1.49

27

BAND A3, WIRE This part replaces 32161-001-000.

95014-61300

$1.97

27

BAND A3, CABLE

95014-61300

$1.97

28

BAND B3, CABLE HARNESS

95014-62300

$2.25
