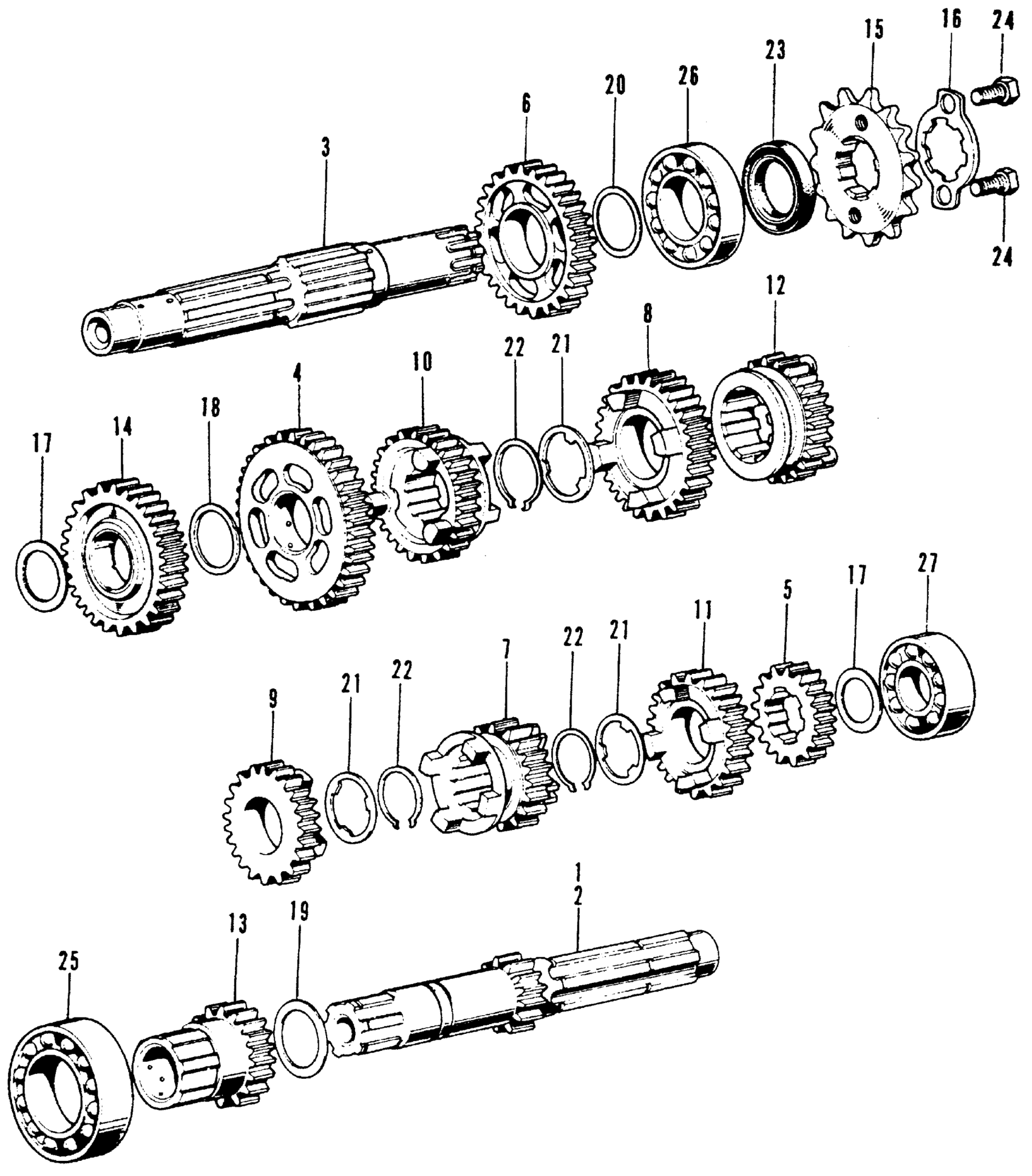

Honda SL100A MOTORCYCLE, JPN, VIN# SL100-100001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (14T)

23211-107-000

Unavailable

3

COUNTERSHAFT, TRANSMISSION This part replaces 23221-107-000.

23221-107-020

Unavailable

3

COUNTERSHAFT, TRANSMISSION This part replaces 23221-107-010.

23221-107-020

Unavailable

3

COUNTERSHAFT, TRANSMISSION

23221-107-020

Unavailable

4

GEAR, COUNTERSHAFT LOW (35T) | Use up to Engine SN 206799

23421-107-000

Unavailable

5

GEAR, COUNTERSHAFT SECOND (18T)

23441-107-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (31T) | Use up to Engine SN 209799

23451-107-000

Unavailable

7

GEAR, MAINSHAFT THIRD (21T) | Use up to Engine SN 206799

23461-107-000

Unavailable

7

GEAR, MAINSHAFT THIRD (22T) | Use from Engine SN 209800 This part replaces 23461-331-670.

23461-427-000

Unavailable

7

GEAR, MAINSHAFT THIRD (22T) | Use from Engine SN 209800

23461-427-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (28T) | Use up to Engine SN 209799

23471-107-000

Unavailable

9

GEAR, MAINSHAFT FIFTH (24T) This part replaces 23481-107-000.

23501-KC1-000

Unavailable

9

GEAR, MAINSHAFT FIFTH (24T)

23501-KC1-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (26T) (NOT AVAILABLE) | Use up to Engine SN 206799

23491-107-000

Unavailable

11

GEAR, MAINSHAFT TOP (26T) | Use up to Engine SN 206799

23501-107-000

Unavailable

12

GEAR, COUNTERSHAFT TOP (24T) | Use up to Engine SN 206799

23511-107-000

$84.97

13

GEAR, STARTER (19T) This part replaces 23520-107-000.

23520-383-000

Unavailable

13

GEAR, STARTER (19T)

23520-383-000

Unavailable

14

GEAR, IDLE STARTER (29T) (NOT AVAILABLE) This part replaces 23530-107-000.

23530-383-000

Unavailable

14

GEAR, IDLE STARTER (29T) (NOT AVAILABLE)

23530-383-000

Unavailable

15

SPROCKET, DRIVE (14T) This part replaces 23801-KF9-900.

23801-KF9-505

$38.11

15

SPROCKET, DRIVE (14T) This part replaces 23801-107-760.

23801-KF9-505

$38.11

16

PLATE B, FIXING This part replaces 23811-028-000.

95014-92100

$1.49

16

PLATE B, FIXING

95014-92100

$1.49

17

WASHER, THRUST (15MM)

90451-107-000

$1.49

18

WASHER, THRUST (16.5MM)

90452-107-000

Unavailable

19

WASHER A, THRUST (20MM)

90453-107-000

$2.25

20

WASHER, THRUST (20MM)

90454-107-000

$1.80

21

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

22

SET-RING (20MM)

90605-200-000

$2.92

23

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-000.

91201-030-033

$5.54

23

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-003.

91201-030-033

$5.54

23

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.54

23

OIL SEAL (20X34X7)

91201-030-015

Unavailable

23

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

23

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

23

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

24

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

24

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

25

BEARING, RADIAL BALL (6006) This part replaces 96100-60060.

96100-60060-00

$13.13

25

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

26

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

26

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

27

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.) This part replaces 96120-62020.

96120-62020-10

Unavailable

27

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.)

96120-62020-10

Unavailable
