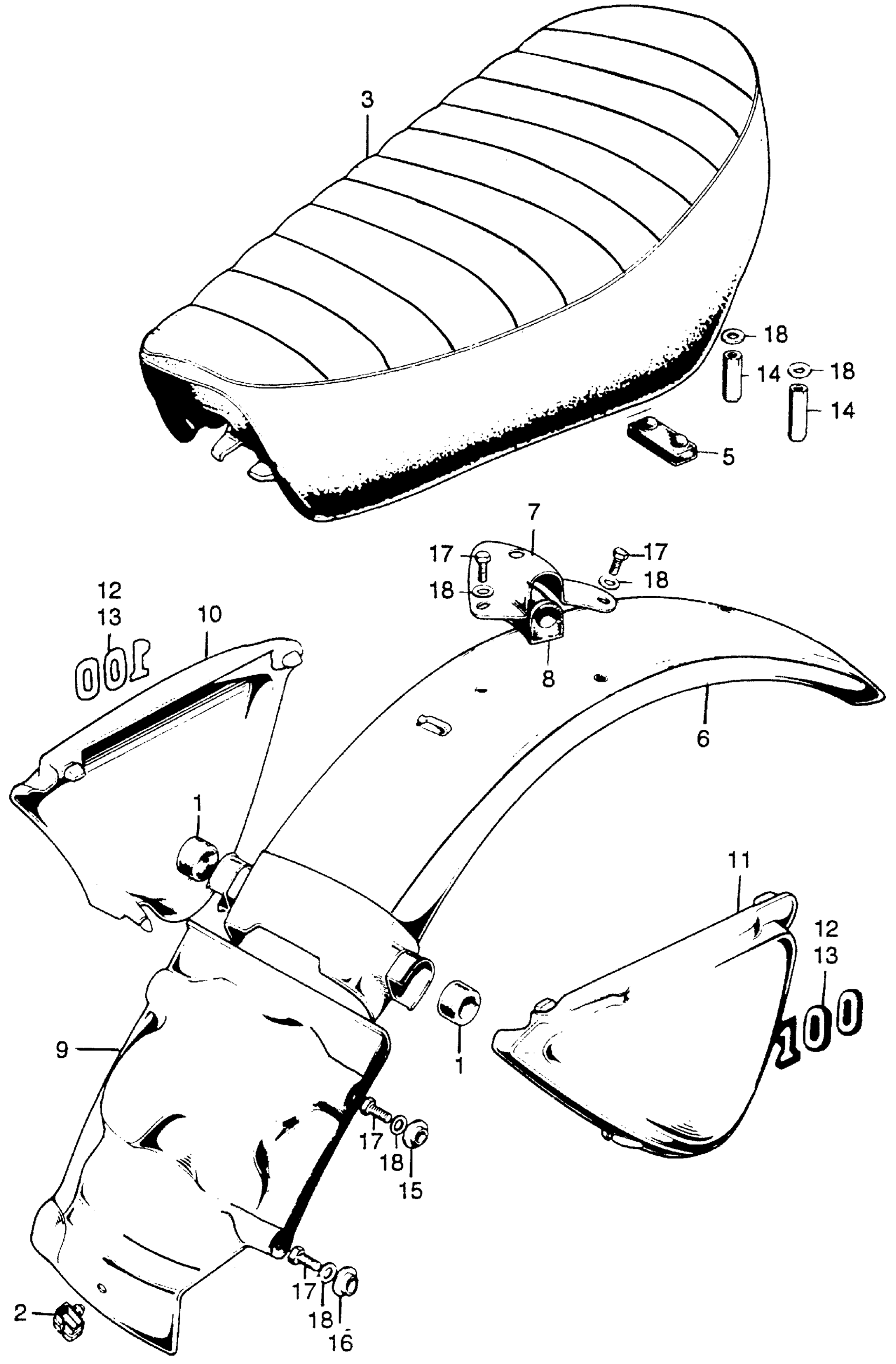

Honda SL100A MOTORCYCLE, JPN, VIN# SL100-100001 SEAT + REAR FENDER + SIDE COVER Diagram

#

Description
Price

1

RUBBER, FR. FUEL TANK (NOT AVAILABLE)

17611-240-000

Unavailable

2

GROMMET, CABLE This part replaces 32985-292-000.

32985-300-000

$3.35

2

GROMMET, CABLE

32985-300-000

$3.35

3

SEAT ASSY. *NH1L* (BLACK) (NOT AVAILABLE)

77200-110-670A

Unavailable

5

RUBBER B, SEAT SETTING

77205-286-000

$5.28

6

FENDER, RR. (NOT AVAILABLE)

80100-110-671Z

Unavailable

7

STAY, RR. FENDER MOUNT (NOT AVAILABLE)

80105-110-000

Unavailable

8

RUBBER, RR. FENDER MOUNT (NOT AVAILABLE)

80106-110-000

Unavailable

9

FENDER B, RR.

80120-331-010

Unavailable

10

COVER, R. SIDE *PB3C* (CANDY SAPPHIRE BLUE) (NOT AVAILABLE)

83540-110-010CN

Unavailable

10

COVER, R. SIDE *G2C* (CANDY EMERALD GREEN) (NOT AVAILABLE)

83540-110-010DF

Unavailable

10

COVER, R. SIDE *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

83540-110-010CM

Unavailable

11

COVER, L. SIDE *PB3C* (CANDY SAPPHIRE BLUE) (NOT AVAILABLE)

83640-110-010CN

Unavailable

11

COVER, L. SIDE *G2C* (CANDY EMERALD GREEN) (NOT AVAILABLE)

83640-110-010DF

Unavailable

11

COVER, L. SIDE *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

83640-110-010CM

Unavailable

12

EMBLEM, SIDE COVER (NOT AVAILABLE)

87128-107-670

Unavailable

15

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

16

WASHER, DISTANCE (7X10) (NOT AVAILABLE)

90544-028-000

Unavailable

17

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49
