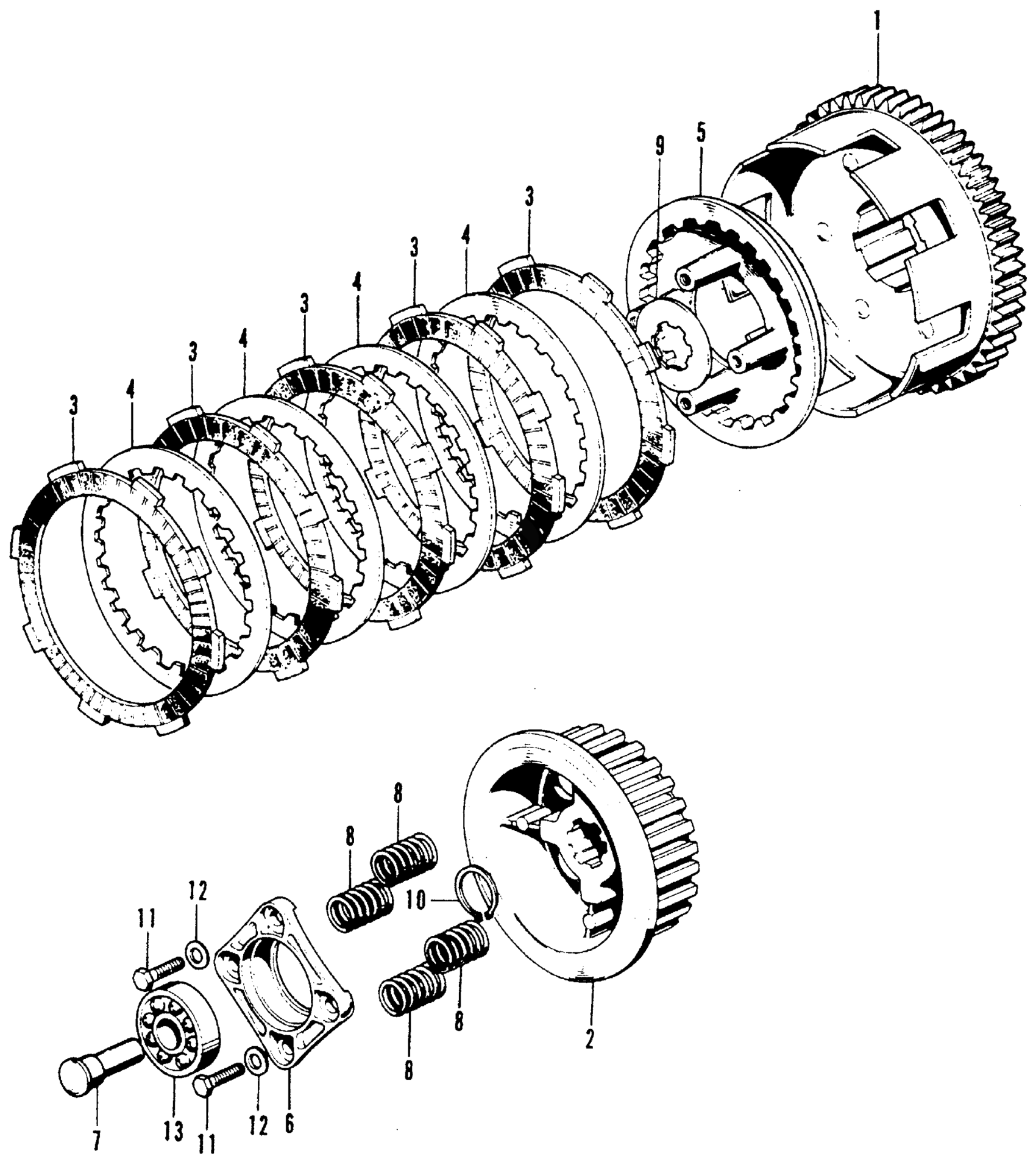

Honda SL100A MOTORCYCLE, JPN, VIN# SL100-100001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-107-010

Unavailable

3

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$17.44

3

DISK, CLUTCH FRICTION This part replaces 22201-KB4-670.

22201-166-000

$17.44

3

DISK, CLUTCH FRICTION This part replaces 22201-107-000.

22201-166-000

$17.44

3

DISK, CLUTCH FRICTION

22201-166-000

$17.44

4

PLATE, CLUTCH

22311-KN4-680

$6.31

4

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.31

5

PLATE, CLUTCH PRESSURE This part replaces 22350-107-000.

22350-107-010

$30.91

5

PLATE, CLUTCH PRESSURE

22350-107-010

$30.91

6

PLATE, CLUTCH LIFTER

22361-107-000

$17.55

7

PIN, CLUTCH LIFTER GUIDE

22366-107-700

Unavailable

8

SPRING, CLUTCH This part replaces 22401-268-000.

95014-75140

$3.06

8

SPRING, CLUTCH

95014-75140

$3.06

9

WASHER B, SPLINE (20MM)

90461-107-000

$4.58

10

SET-RING (20MM)

90605-200-000

$2.92

11

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

11

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

12

WASHER, PLAIN (6MM)

94101-06800

$1.49

13

BEARING, RADIAL BALL (6001) This part replaces 96100-60010.

96100-60010-00

$17.13

13

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
