STEERING SL 900 B964291 and Intl. SL 900 I964291 (4935583558A013)

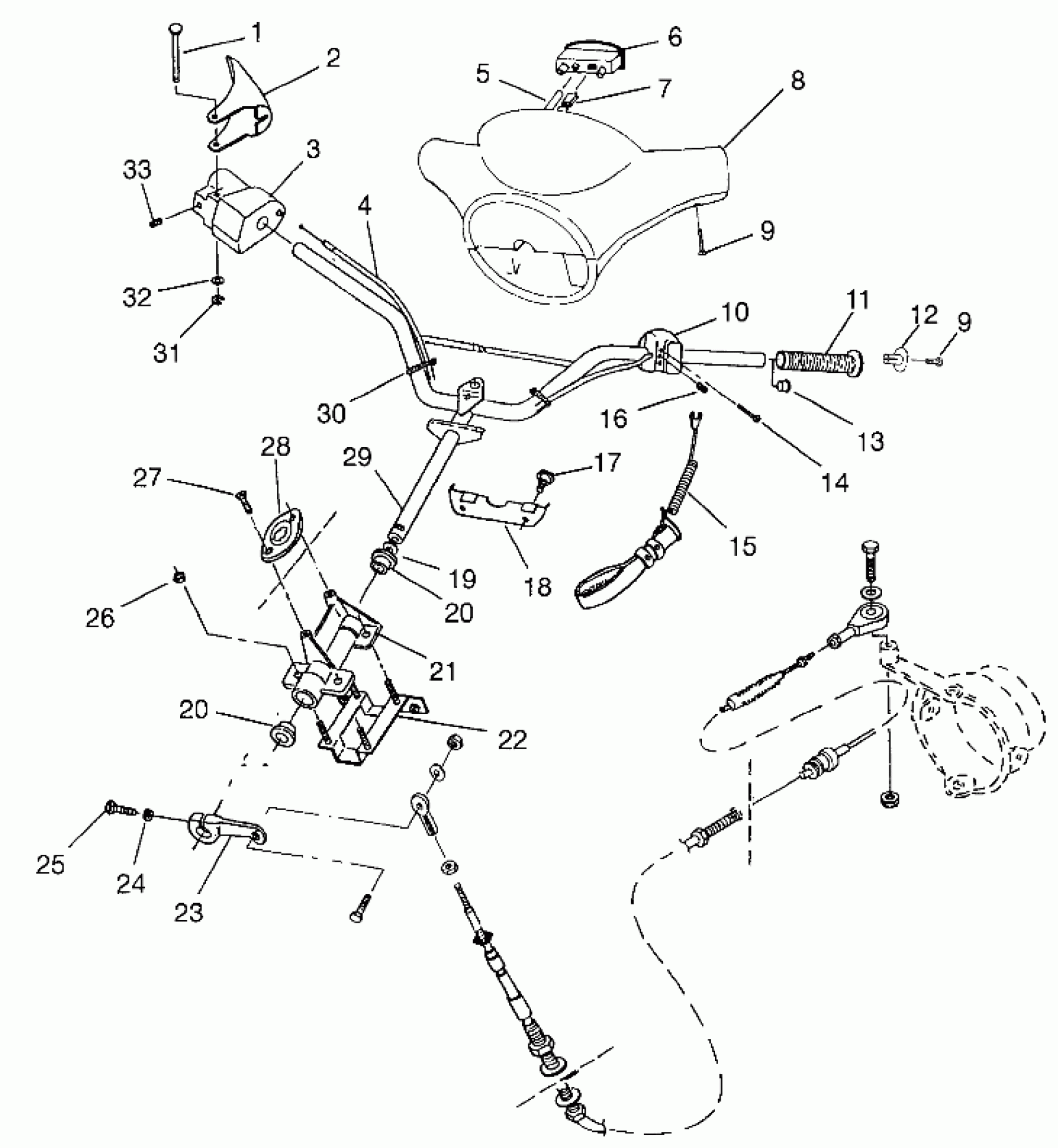

Polaris SL 900 - B964291 STEERING SL 900 B964291 and Intl. SL 900 I964291 (4935583558A013) Diagram
#
1
Pin, Retaining
7661628
Unavailable
2
LEVER,THROTTLE
5432372
Unavailable
3
BLOCK, THROTTLE
5432339
Unavailable
4
CABLE,THROTTLE
7080608
Unavailable
5
LINE,FUEL Substituted by 8450058-277
8450058-235
Unavailable
6
GAUGE,MULTI-FUNCTION
3280252
Unavailable
7
HARNESS,WIRE,MFD(SL)
2460518
Unavailable
8
PAD,H'BAR,PUR.VEL.
5431957-194
Unavailable
9
SCREW, SS.(10)
7512047
Unavailable
9
SCREW, SS.(10)
7512047
Unavailable
10
SWITCH,STOP/TRIM/TETHER
4110162
Unavailable
11
GRIP,H'BAR,P.RED
5410638-136
Unavailable
12
PLUG,HANDGRIP,BLK.
7010082-070
Unavailable
13
CAPLUG(10)
7080467
Unavailable
14
SCREW(10)
7516602
Unavailable
15
CORD, TETHER Substituted by 7080675
7080518
Unavailable
16
SCREW, S.S.(10)
7516601
Unavailable
17
BOLT,SHOULDER(10)
7515387
Unavailable
18
STOP, STEERING
5222677
Unavailable
19
BUSH.(10)
7555875
Unavailable
20
BUSHING,STRG.SUPPORT
5431382
Unavailable
20
BUSHING,STRG.SUPPORT
5431382
Unavailable
21
SUPPORT,STRG.HUB,BLK. Substituted by 5131509
5130974-067
Unavailable
22
PLATE, BOLT
1060101
Unavailable
23
ARM,STEERING,BLK. Substituted by 5131441
5130958-067
Unavailable
24
WASHER, LOCK, S.S.(10)
7552610
Unavailable
25
BOLT, S.S.(10)
7515375
Unavailable
26
NUT, HEX, S.S.(10)
7542335
Unavailable
27
SCREW,S.S.(10)
7512074
Unavailable
28
BRKT, RECEIVER
5431427
Unavailable
29
POST,STEERING,W/H'BAR
1823175
Unavailable
30
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
31
RING,RETAIN.EXT.,S.S.(10)
7710426
Unavailable
32
WASHER, FLAT, S.S.(10)
7555840
$3.35
33
SCREW, SET, S.S.(10)
7515115
Unavailable
