PROPULSION SL 900 B964291 and Intl. SL 900 I964291 (4935583558B003)

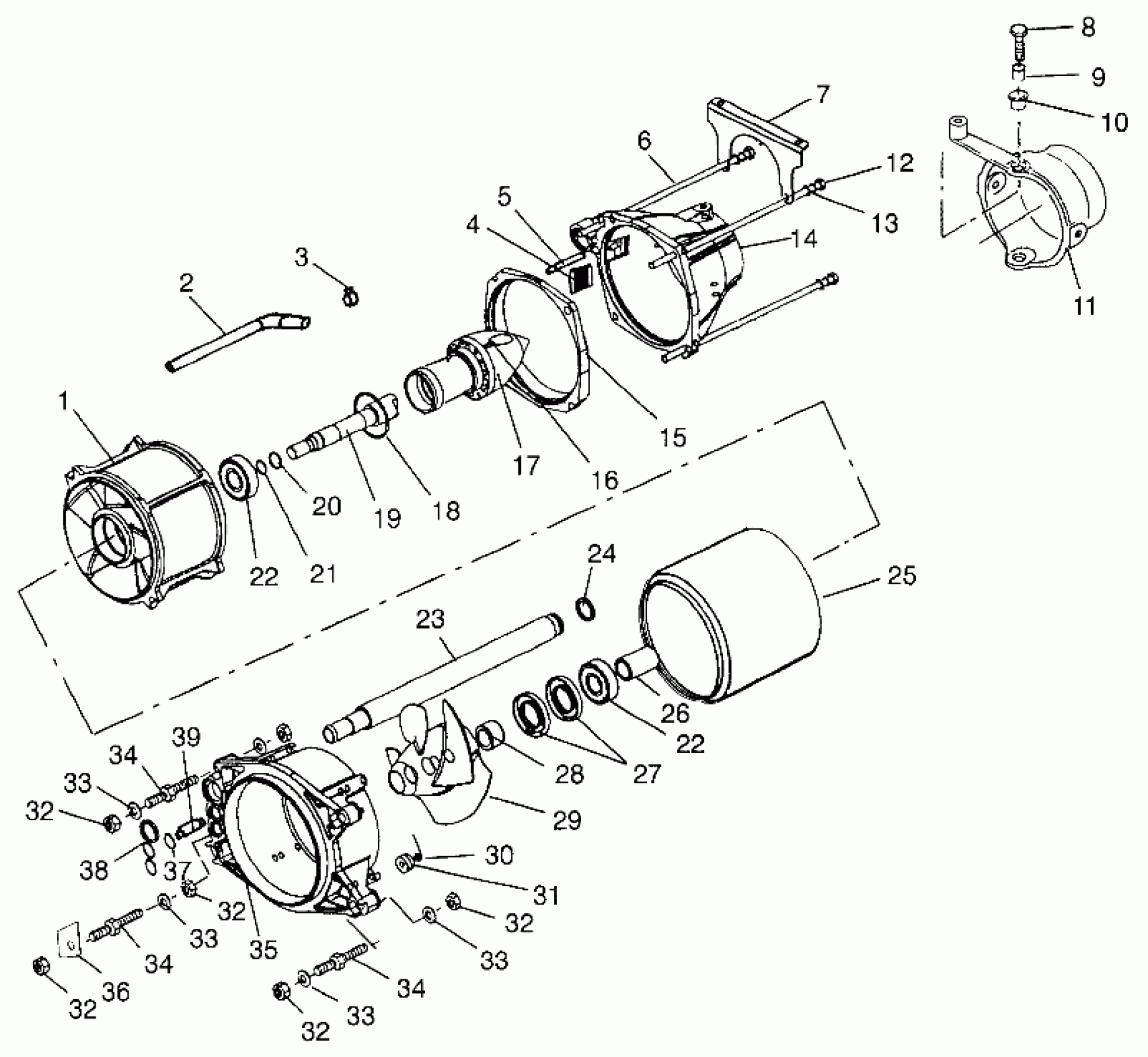

Polaris SL 900 - B964291 PROPULSION SL 900 B964291 and Intl. SL 900 I964291 (4935583558B003) Diagram
#
1
STATOR,PUMP (Mach)
5130983
Unavailable
2
DESC NOT_AVAILABLE
8450054-35
Unavailable
4
SCREEN,ENG.INLET
5431523
Unavailable
5
TUBE,SIPHON,BILGE
5010293
Unavailable
6
Bolt
7515389
Unavailable
7
BRKT,PUMP EXT,SL
5241880
Unavailable
8
BOLT, S.S.(10)
7515366
Unavailable
9
Collar
5130938
Unavailable
10
BRG,STRG.NOZZLE,(10)
5431518
Unavailable
11
NOZZLE,STRG.REVERSE
5130960
Unavailable
12
WASHER, LOCK, S.S.(10)
7552610
Unavailable
13
WASHER, FLAT, S.S.,(10)
7555835
Unavailable
14
NOZZLE ASM,1 TUBE
1350021
Unavailable
15
WEDGE,PUMP,(SLX)
5630564
Unavailable
16
SCREW(10)
7512064
Unavailable
17
Cone, Pump
5431519
Unavailable
18
O-RING(10)
5410819
Unavailable
19
SHAFT, STUB Substituted by 5132674
5020697
Unavailable
20
O-RING(10)
5410818
Unavailable
21
O-RING,(10)
5410817
Unavailable
22
Bearing
3514008
Unavailable
22
Bearing
3514008
Unavailable
23
PIPE,WATER,ENG.(MACH)
5131166
Unavailable
24
O RING,(10)
5410735
Unavailable
25
EXTENSION,PUMP
5131196
Unavailable
26
Spacer
5010294
Unavailable
27
SEAL,BRG,STATOR
3610043
Unavailable
28
Spacer, Impeller
5010295
Unavailable
29
IMPELLER,17-22,3 BLADE,SS
5131337
Unavailable
30
SCREW(10)
7522019
Unavailable
31
ANODE-ZINC Substituted by 2200745
5630598
Unavailable
32
NUT,HEX,S.S.(10)
7542455
Unavailable
32
NUT,HEX,S.S.(10)
7542455
Unavailable
32
NUT,HEX,S.S.(10)
7542455
Unavailable
32
NUT,HEX,S.S.(10)
7542455
Unavailable
32
NUT,HEX,S.S.(10)
7542455
Unavailable
34
STUD,MTG,PUMP
5020877
Unavailable
34
STUD,MTG,PUMP
5020877
Unavailable
34
STUD,MTG,PUMP
5020877
Unavailable
35
HSG,PUMP,(148MM) Substituted by 5131815
5131311
Unavailable
36
BRKT,STRG.CABLE
5241741
Unavailable
37
SEAL,SIPHON TUBE
5411016
Unavailable
38
SEAL,WATER PIPE
5411107
Unavailable
39
PIPE,WATER BILGE
5020835
Unavailable
