HULL and BODY SL 900 B964291 and Intl. SL 900 I964291 (4935583558A005)

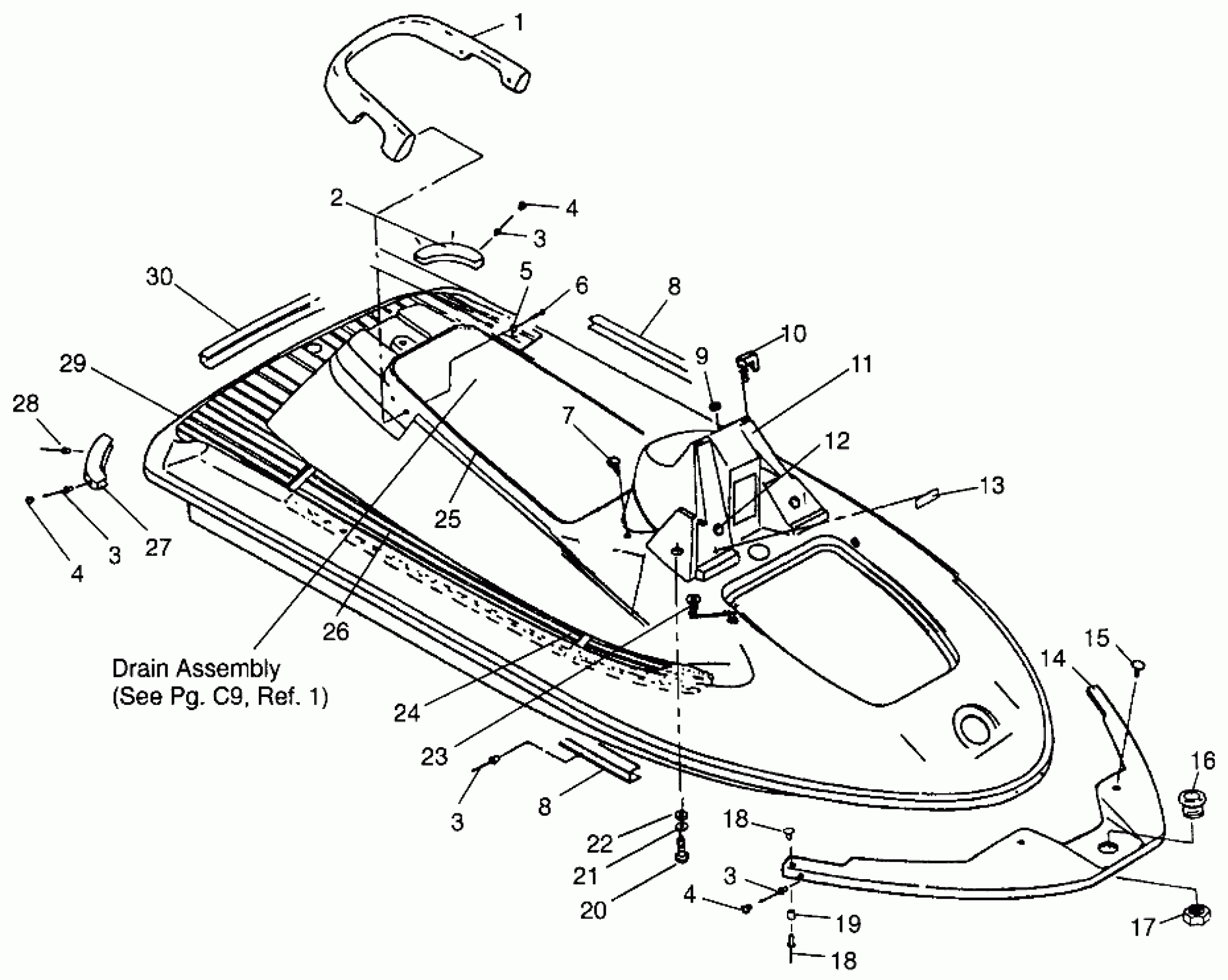

Polaris SL 900 - B964291 HULL and BODY SL 900 B964291 and Intl. SL 900 I964291 (4935583558A005) Diagram
#
1
HANDLE,GRAB,PUR.VEL. Substituted by 5431729-194
5431392-194
Unavailable
2
BUMPER,LH,R.,PUR.VEL. Substituted by 2201026-194
5431561-194
Unavailable
3
RIVET(50)
7621480
Unavailable
3
RIVET(50)
7621480
Unavailable
3
RIVET(50)
7621480
Unavailable
3
RIVET(50)
7621480
Unavailable
4
PLUG,R.BUMP,PUR.VEL.
5431994-194
Unavailable
4
PLUG,R.BUMP,PUR.VEL.
5431994-194
Unavailable
4
PLUG,R.BUMP,PUR.VEL.
5431994-194
Unavailable
5
WASHER, LOCK, S.S.(10)
7552610
Unavailable
6
BOLT, S.S.(10)
7515361
Unavailable
7
CLIP, XMASTREE(10)
7080514
Unavailable
8
RAIL,RUB,SIDE,PURP.VELVET
5521309-194
Unavailable
8
RAIL,RUB,SIDE,PURP.VELVET
5521309-194
Unavailable
9
GROMMET
5410720
$5.75
10
BUMPER,CORNER
5431740
Unavailable
11
POD,STRG,NOTCH,P.RED
5432146-136
Unavailable
12
Grommet, Vent
5410682
Unavailable
13
DECAL,RECOMMENDED OIL
7074959
Unavailable
14
BUMPER,FR,PURP.VEL. Substituted by 5410945-214
5410945-194
Unavailable
15
CLIP-DART,PURP.VELVET(10) Substituted by 7670084-214
7670084-194
Unavailable
16
GROMMET,BOW EYE,PURP.VIOLET
5431950-194
Unavailable
17
NUT,BOW EYE,PURP.VIOLET
5431951-194
Unavailable
18
FASTENER,2PC,(10)
7621506
Unavailable
18
FASTENER,2PC,(10)
7621506
Unavailable
19
SPACER,FR.BUMPER
5431474
Unavailable
20
BOLT(10)
7515127
Unavailable
21
WASHER, LOCK, S.S.(10)
7555838
Unavailable
22
WASHER,S.S.(10)
7555891
Unavailable
23
BUMPER,DECK
5431741
Unavailable
24
PAD,FOOTWELL,FRT,BUFFED,P VEL
5811316-194
Unavailable
25
SEAL, SEAT
5521371
Unavailable
26
PAD,FOOTWELL,CTR,BUFFED,P VEL
5811315-194
Unavailable
27
BUMPER,RH,R.,PUR.VEL. Substituted by 2201026-194
5431562-194
Unavailable
28
RIVET,(50)
7621492
Unavailable
29
PAD,R.FOOTWELL,BUFFED,P VEL
5811314-194
Unavailable
30
RAIL,RUB,REAR,PURP.VELVET
5521310-194
Unavailable
