FRONT STORAGE COMPARTMENT SL 900 B964291 and Intl. SL 900 I964291 (4935583558A008)

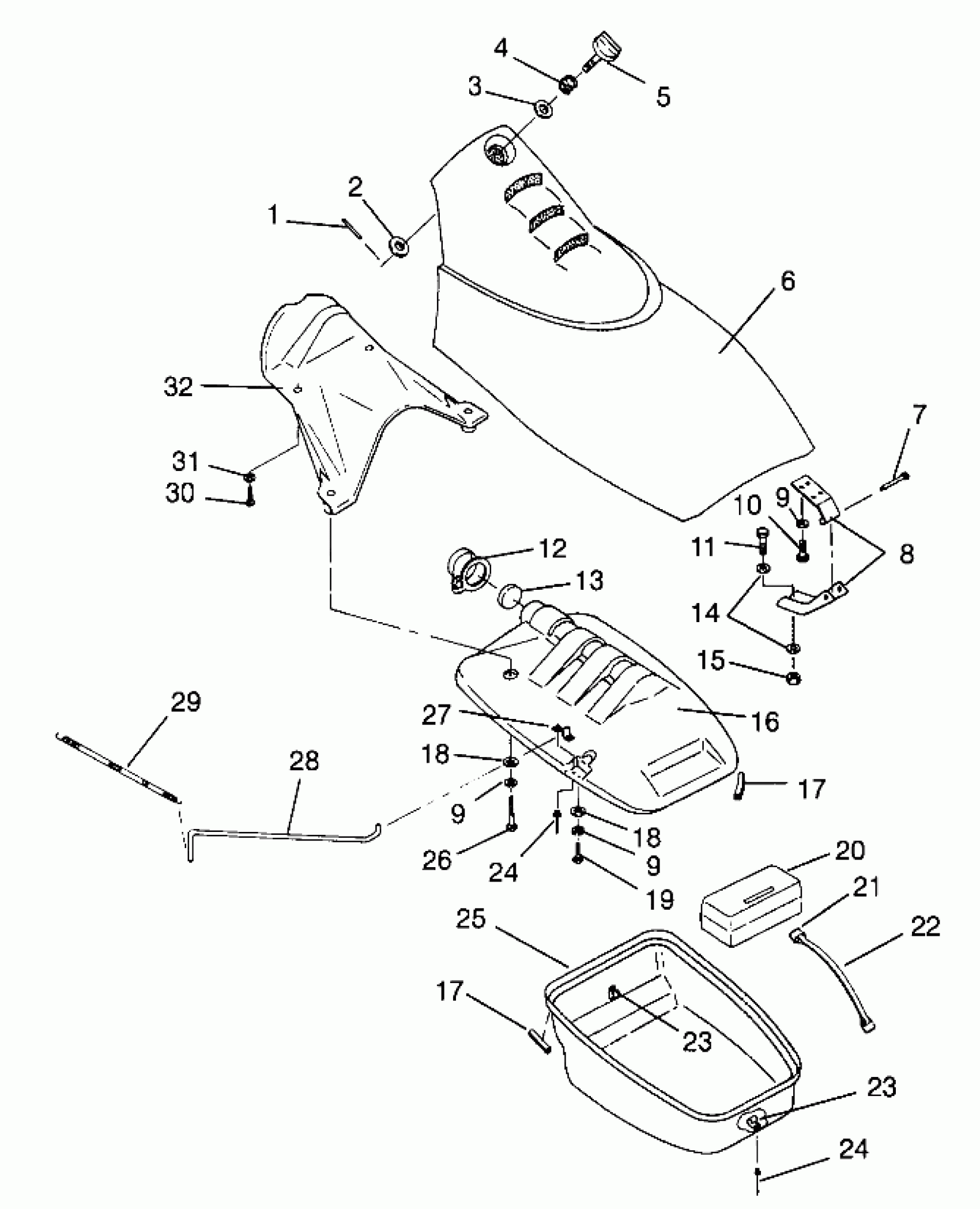

Polaris SL 900 - B964291 FRONT STORAGE COMPARTMENT SL 900 B964291 and Intl. SL 900 I964291 (4935583558A008) Diagram
#
1
PIN, GROOVED, S.S.(10)
7661630
Unavailable
2
CUSHION, VIBRATION
5810570
Unavailable
3
WASHER, WEAR
5431426
Unavailable
4
SPRING,COMPRESSION
7041275
Unavailable
5
KNOB,DOOR COMP,P. RED
5431383-136
Unavailable
6
DOOR,COMPART.P. RED Substituted by 2201145-136
5431324-136
Unavailable
7
PIN, HINGE Substituted by 2635012
7661629
Unavailable
8
HINGE ASM,COMPARTMENT (Incl. 7)
2635012
Unavailable
9
WASHER, LOCK, S.S.(10)
7555838
Unavailable
9
WASHER, LOCK, S.S.(10)
7555838
Unavailable
9
WASHER, LOCK, S.S.(10)
7555838
Unavailable
10
BOLT, S.S.(10)
7515121
Unavailable
11
BOLT, S.S.
7515365
Unavailable
12
CAP,FIRE EXT.,YELLOW
5431398-053
Unavailable
13
PAD,FOAM,FIRE EXT.
5810799
Unavailable
14
WASHER, FLAT, S.S.(10)
7555831
Unavailable
15
NUT, HEX, S.S.(10)
7542335
Unavailable
16
LID,BCKT,FR.STORAGE Substituted by 5432579
5431489
Unavailable
17
SEAL,FR.STORAGE BKT.
5521252
Unavailable
17
SEAL,FR.STORAGE BKT.
5521252
Unavailable
18
WASHER, FLAT, S.S.(10)
7555839
Unavailable
18
WASHER, FLAT, S.S.(10)
7555839
Unavailable
19
BOLT(10)
7515127
Unavailable
20
BOX, TOOL
5431508
Unavailable
21
HOOK,'D',SST/SS,(10)
5224472
$2.19
22
STRAP-BATTERY
5430621
$20.22
23
Clip
5240187
Unavailable
23
Clip
5240187
Unavailable
24
RIVET
7621478
Unavailable
24
RIVET
7621478
Unavailable
25
BUCKET,FR.STORAGE Substituted by 5432526
5431394
Unavailable
26
BOLT(10)
7515130
Unavailable
27
RETAINER,DOOR SUPPORT
5222782
Unavailable
28
SUPPORT,DOOR,COMPART.
5224471
Unavailable
29
SPRING,DOOR SUPPORT
7042038
Unavailable
30
SCREW(10)
7512049
Unavailable
31
WASHER, FLAT, S.S.(10)
7555837
Unavailable
32
BAFFLE,AIR INTAKE
5431546
Unavailable
