ELECTRICAL BOX SL 900 B964291 and Intl. SL 900 I964291 (4935583558B011)

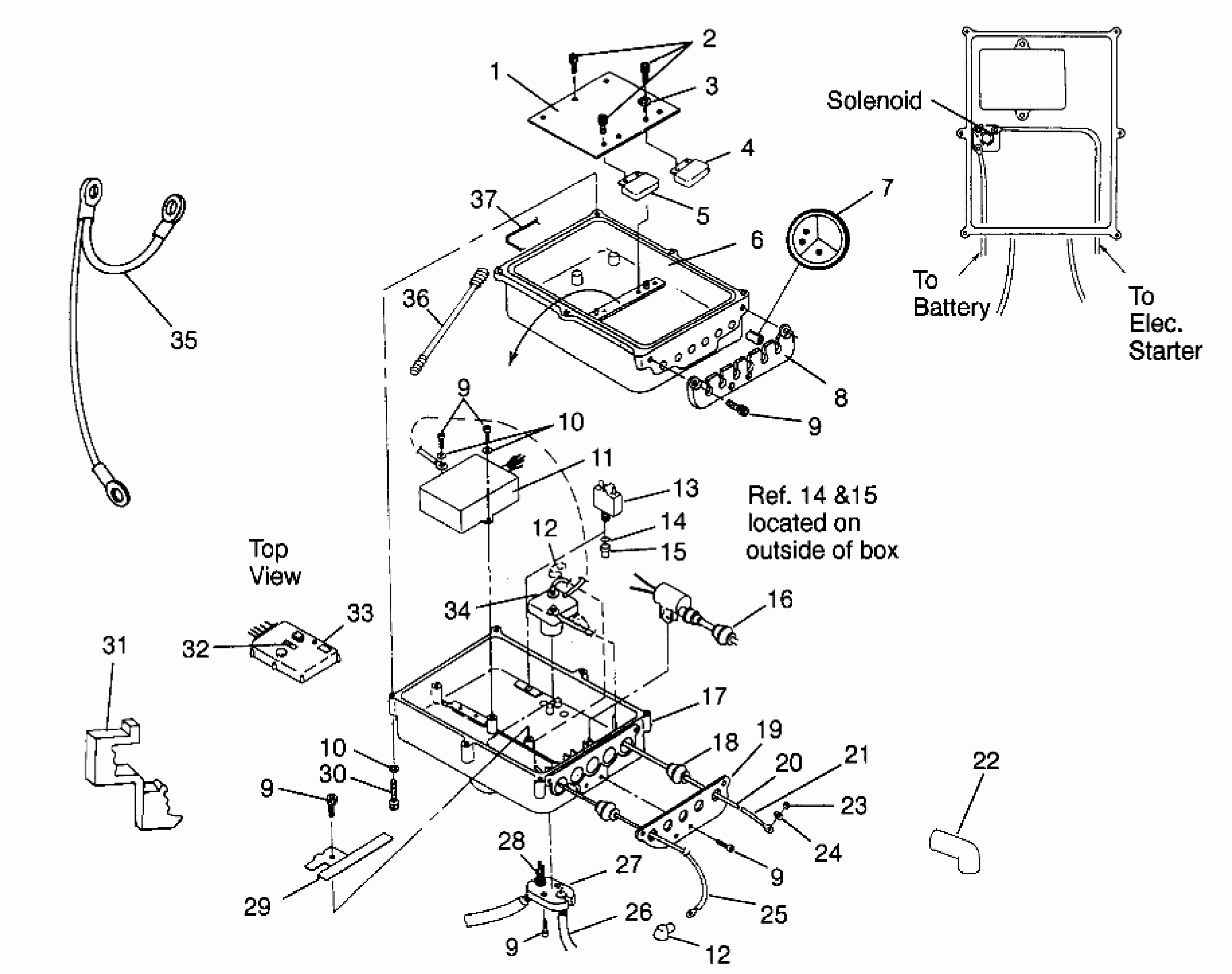

Polaris SL 900 - B964291 ELECTRICAL BOX SL 900 B964291 and Intl. SL 900 I964291 (4935583558B011) Diagram
#
1
BOARD,TERMINAL
4040068
Unavailable
2
SCREW,S.S.(10)
7512072
Unavailable
3
WASHER, LOCK(10)
7552615
$4.99
4
SWITCH,LOWFUEL&O'HEAT
4060145
Unavailable
5
REGULATOR/RECT/CUT-OFF Substituted by 4060171
4060115
Unavailable
6
BOX,BOTTOM,ELEC.
5131256
Unavailable
7
O-RING,(10)
5410817
Unavailable
7
GROMMET,SECTION,2-HOLE
5410852
Unavailable
7
GROMMET,SECTION,NO HOLE
5410850
Unavailable
7
GROMMET,SECTION,1 HOLE
5410851
Unavailable
8
PLATE,6-HOLE,CAST
5630497
Unavailable
9
BOLT, S.S.(10)
7515118
Unavailable
9
BOLT, S.S.(10)
7515118
Unavailable
9
BOLT, S.S.(10)
7515118
Unavailable
9
BOLT, S.S.(10)
7515118
Unavailable
9
BOLT, S.S.(10)
7515118
Unavailable
10
WASHER(10)
7555836
$3.99
10
WASHER(10)
7555836
$3.99
11
Controller, Ignition (See Pg., Ref.)
-------
Unavailable
12
INSULATOR-CABLE
5410346
$6.39
12
INSULATOR-CABLE
5410346
$6.39
13
CKT.BREAKER,15A.(WATER.)
2434011
Unavailable
14
O-RING
5410725
Unavailable
15
BOOT,THREADED,RED
7080461
Unavailable
16
GROMMET, COIL
5410677
Unavailable
17
TOP, ELEC.BOX
5131174
Unavailable
18
GROMMET, 16 GA.(10)
5410678
Unavailable
19
PLATE, 5-HOLE
5630416
Unavailable
20
CABLE,RED,SOL./START.
4010081
Unavailable
21
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
21
CONDUIT,CONVOL(30 CM)
4010051-30
Unavailable
22
Cap, Spark Plug (See Pg., Ref.)
-------
Unavailable
23
NUT, 6 MM.,S.S.(10)
7546705
$4.79
24
WASHER, LOCK(10)
7552613
Unavailable
25
CABLE,RED,BATT/SOL.
4010082
Unavailable
26
HARNESS,WIRE,MFD(SL)
2460518
Unavailable
27
PLATE, 2-HOLE
5630415
Unavailable
28
GROMMET,WIRE HARNESS
5410973
Unavailable
29
BRKT,COIL RETAINER
5241182
Unavailable
30
BOLT(10)
7515119
Unavailable
31
T-CLIP(10)
7080471
$3.59
32
DECAL,WARN,HI.VOLT.
7073713
Unavailable
33
DECAL,ELECT.BOX RESET
7073734
Unavailable
34
Switch, Magnetic (See Pg., Ref.)
-------
Unavailable
35
HARNESS,GND-CONTROL BOX
2460581
Unavailable
36
WIRE,JUMPER
4010117
Unavailable
37
O-RING,(ELEC.BOX)
5410912
Unavailable
