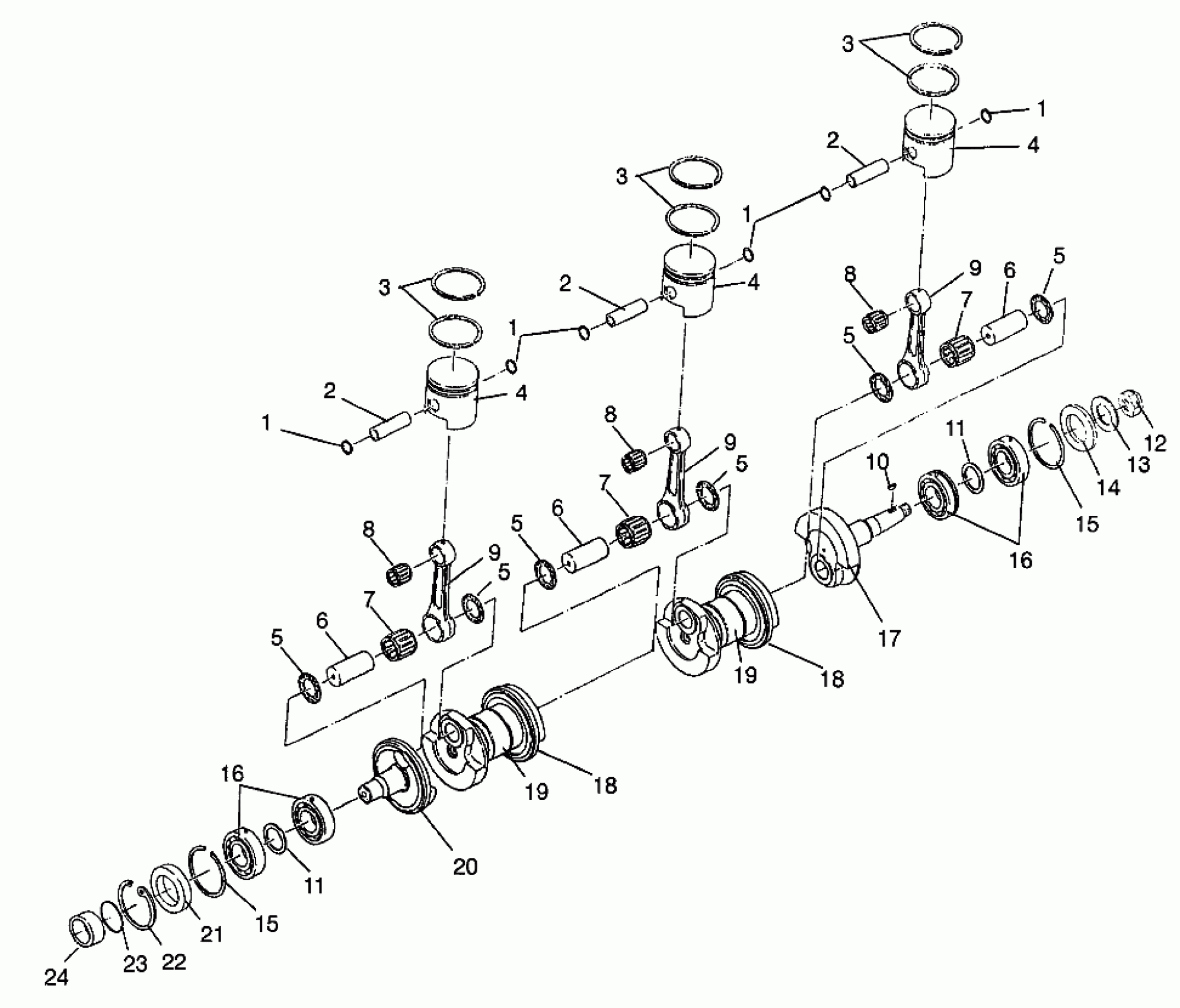

Polaris SL 900 - B964291 CRANKSHAFT & PISTON SL 900 B964291 and Intl. SL 900 I964291 (4935583558C003) Diagram

#

Description
Price

-

CRANKSHAFT, 3 CYL Substituted by 2201238 (Incl. 5-7, 12, 17-20)

1201586

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

2

Pin, Piston

3022961

$20.48

2

Pin, Piston

3022961

$20.48

2

Pin, Piston

3022961

$20.48

3

KIT,PISTONRINGS,.25MM.O/S

2200817

$68.79

3

KIT,PISTONRINGS,STD. (2 Rings)

2200818

Unavailable

3

KIT,PISTONRINGS,.50MM.O/S

2200816

$82.99

3

KIT,PISTONRINGS,.25MM.O/S

2200817

$68.79

3

KIT,PISTONRINGS,STD. (2 Rings)

2200818

Unavailable

3

KIT,PISTONRINGS,.50MM.O/S

2200816

$82.99

3

KIT,PISTONRINGS,.25MM.O/S

2200817

$68.79

3

KIT,PISTONRINGS,STD. (2 Rings)

2200818

Unavailable

3

KIT,PISTONRINGS,.50MM.O/S

2200816

$82.99

4

KIT,PISTON ASM, STD. (Incl. 1, 2, 3)

2200821

$195.99

4

KIT,PISTON ASM,.25MM.O/S (Incl. 1, 2, 3)

2200820

$185.99

4

KIT,PISTON ASM,.50MM.O/S (Incl. 1, 2, 3)

2200819

$175.99

4

KIT,PISTON ASM, STD. (Incl. 1, 2, 3)

2200821

$195.99

4

KIT,PISTON ASM,.25MM.O/S (Incl. 1, 2, 3)

2200820

$185.99

4

KIT,PISTON ASM,.50MM.O/S (Incl. 1, 2, 3)

2200819

$175.99

4

KIT,PISTON ASM, STD. (Incl. 1, 2, 3)

2200821

$195.99

4

KIT,PISTON ASM,.25MM.O/S (Incl. 1, 2, 3)

2200820

$185.99

4

KIT,PISTON ASM,.50MM.O/S (Incl. 1, 2, 3)

2200819

$175.99

5

Washer, Thrust (See Ref. 9)

----

Unavailable

5

Washer, Thrust (See Ref. 9)

----

Unavailable

5

Washer, Thrust (See Ref. 9)

----

Unavailable

5

Washer, Thrust (See Ref. 9)

----

Unavailable

5

Washer, Thrust (See Ref. 9)

----

Unavailable

5

Washer, Thrust (See Ref. 9)

----

Unavailable

6

Pin, Crankshaft (See Ref. 9)

----

Unavailable

6

Pin, Crankshaft (See Ref. 9)

----

Unavailable

6

Pin, Crankshaft (See Ref. 9)

----

Unavailable

7

Bearing, Connecting Rod (See Ref. 9)

----

Unavailable

7

Bearing, Connecting Rod (See Ref. 9)

----

Unavailable

7

Bearing, Connecting Rod (See Ref. 9)

----

Unavailable

8

BEARING,CONNECT.ROD

3584001

Unavailable

8

BEARING,CONNECT.ROD

3584001

Unavailable

8

BEARING,CONNECT.ROD

3584001

Unavailable

9

KIT,CONN.ROD ASM.(PWC) Substituted by 2201022 (Incl. 5-7)

2200674

$305.56

9

KIT,CONN.ROD ASM.(PWC) Substituted by 2201022 (Incl. 5-7)

2200674

$305.56

9

KIT,CONN.ROD ASM.(PWC) Substituted by 2201022 (Incl. 5-7)

2200674

$305.56

10

KEY,WOODRUFF(10)

7721117

$29.99

11

BUSHING(10)

7555905

$3.99

11

BUSHING(10)

7555905

$3.99

12

Nut, Pump Drive (See Pg., Ref.)

----

Unavailable

13

Washer (See Pg., Ref.)

----

Unavailable

14

Seal

3610044

$24.27

15

RING,RETAINING,(10)

7710441

Unavailable

15

RING,RETAINING,(10)

7710441

Unavailable

16

BEARING,DEEP GROOVE Substituted by 3585503

3585501

$31.75

16

BEARING,DEEP GROOVE Substituted by 3585503

3585501

$31.75

17

CRANKWEB,MAG.

5131085

Unavailable

18

CRANKWEB,CTR,BIGBORE

5131084

$154.99

18

CRANKWEB,CTR,BIGBORE

5131084

$154.99

19

Labyrinth

5131086

Unavailable

19

Labyrinth

5131086

Unavailable

20

CRANKWEB,PTO,BIGBORE

5131083

$135.30

21

SEAL Substituted by 5411524

5410913

Unavailable

22

RING,RETAINING(10)

7710435

Unavailable

23

O RING,(10)

5410613

$1.98

24

COLLAR,CRANKSHAFT

5131195

Unavailable
