STEERING SL 780 B974088 and Intl. SL 780 I974088 (4940924092A013)

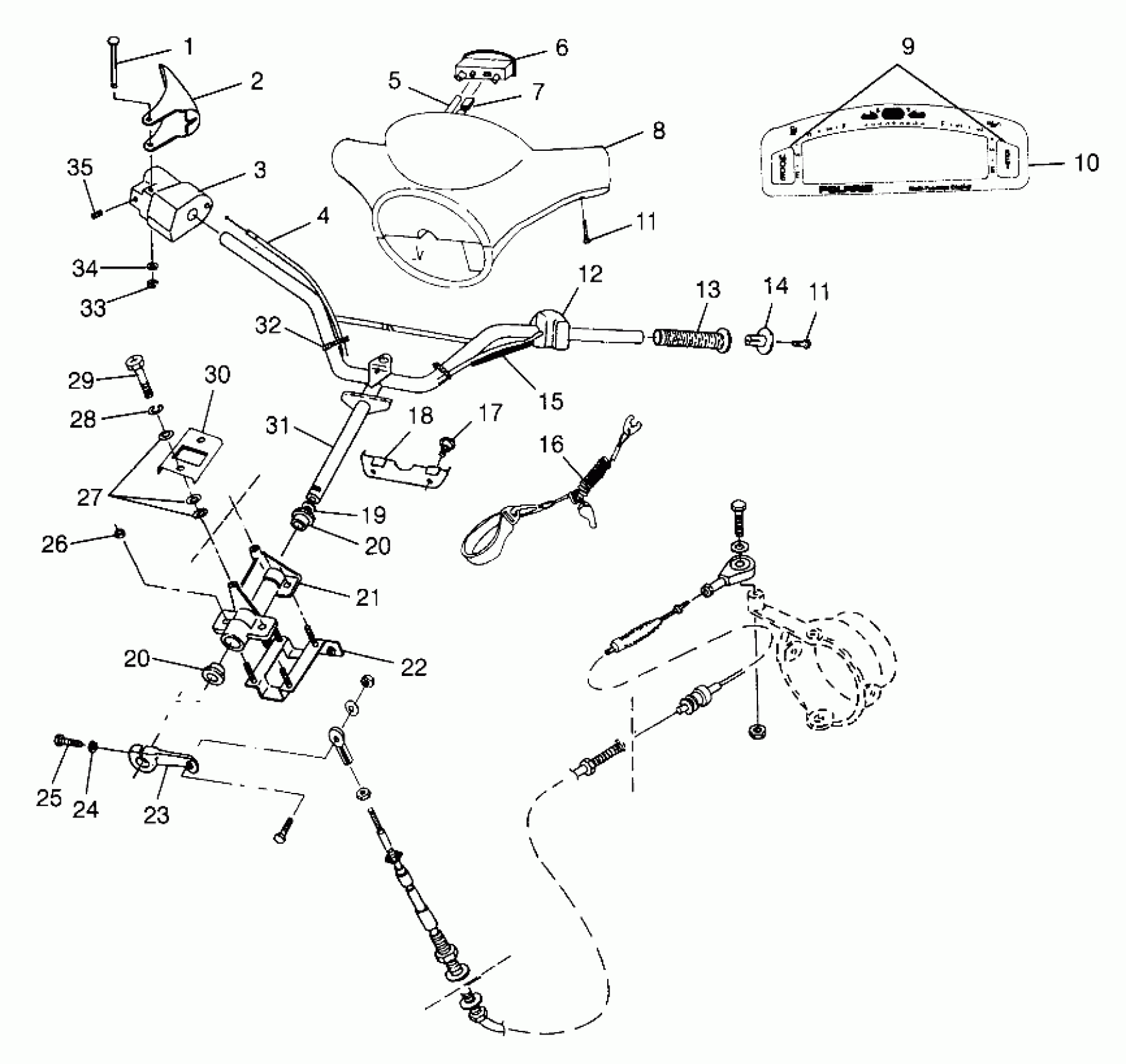

Polaris SL 780 - B974088 STEERING SL 780 B974088 and Intl. SL 780 I974088 (4940924092A013) Diagram
#
1
Pin, Retaining
7661628
Unavailable
2
LEVER,THROTTLE CONTROL
5431397
Unavailable
3
BLOCK,THROTTLE CONTROL
5431396
Unavailable
4
CABLE,THROTTLE
7080504
Unavailable
5
PITOT LINE,90DEG FORMED,235CM. Substituted by 8450070-277
8450070-235
Unavailable
6
GAUGE,MULTI-FUNCTION Substituted by 3280252
3280202
Unavailable
7
HARNESS,WIRE,MFD(SL)
2460518
Unavailable
8
PAD,H'BAR,MFD,WLD.GRP.
5432510-237
Unavailable
9
KIT,MFD.BUTTON Substituted by 2201263
2200826
Unavailable
10
BEZEL,MFD,W/OVERLAY
3280266
Unavailable
11
SCREW, SS.(10)
7512047
Unavailable
11
SCREW, SS.(10)
7512047
Unavailable
12
SWITCH,ST/SP/TR/BG/CK
4110215
Unavailable
13
GRIP,H'BAR,LBLUE Substituted by 5411221-070
5411221-217
Unavailable
14
PLUG,HANDGRIP,BLK.
7010082-070
Unavailable
15
CABLE,CHOKE,67.92
7080668
Unavailable
16
LANYARD,W/WHISTLE
7080675
Unavailable
17
BOLT,SHOULDER(10)
7515387
Unavailable
18
STOP, STEERING
5222677
Unavailable
19
BUSH.(10)
7555875
Unavailable
20
BUSHING,STRG.SUPPORT
5431382
Unavailable
20
BUSHING,STRG.SUPPORT
5431382
Unavailable
21
HUB,SPRT.STRG/ANODE.
5131509
Unavailable
22
PLATE, BOLT
1060101
Unavailable
23
ARM,STRNG.,ANODIZED
5131441
Unavailable
24
WASHER, LOCK, S.S.(10)
7552610
Unavailable
25
BOLT, S.S.(10)
7515375
Unavailable
26
NUT, HEX, S.S.(10)
7542335
Unavailable
27
WASHER, FLAT, S.S.(10)
7555837
Unavailable
28
WASHER, LOCK(10)
7552615
$4.99
29
SCREW, S.S.(10)
7512051
Unavailable
30
PLATE,LATCH,RCVR,ROLLED Substituted by 5211860
5211836
Unavailable
31
POST,STRG,W/H'BAR,TRIM
1860119
Unavailable
32
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
33
RING,RETAIN.EXT.,S.S.(10)
7710426
Unavailable
34
WASHER, FLAT, S.S.(10)
7555840
$3.35
35
SCREW, SET, S.S.(10)
7515115
Unavailable
