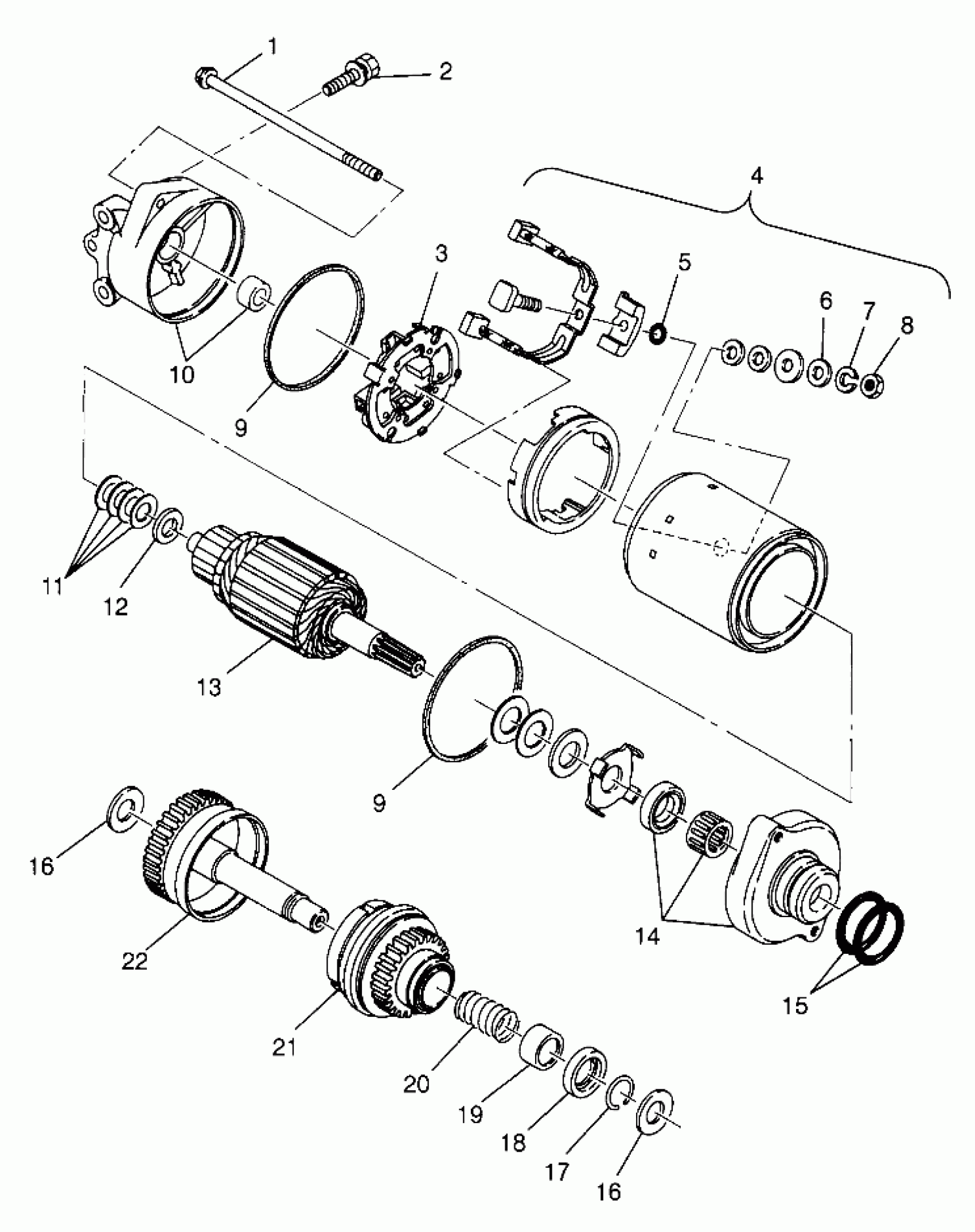

Polaris SL 780 - B974088 STARTING MOTOR SL 780 B974088 and Intl. SL 780 I974088 (4940924092C007) Diagram

#

Description
Price

-

MOTOR ASM,STARTER (Incl. 1, 3-15)

3240281

Unavailable

1

Bolt, Through

3240113

$8.73

2

BOLT, FLANGE

3240062

Unavailable

3

Spring, Brush

3240111

$1.38

4

BRUSH, COMPL. (Incl. 3-8)

3240115

Unavailable

5

O-RING

3084408

Unavailable

6

WASHER(10)

3240119

Unavailable

7

WASHER, SPRING(10)

3240117

Unavailable

8

NUT(10)

3240116

Unavailable

9

RING, RUBBER

3084405

Unavailable

9

RING, RUBBER

3084405

Unavailable

10

BRACKET ASM,REAR

3240207

$53.17

11

WASHER, THRUST(10)

3240118

Unavailable

12

Washer, Thrust

3240112

$0.32

13

ARMATURE ASM.

3240205

$139.99

14

BRACKET ASM,FRONT Substituted by 3240281 (Incl. 15)

3240282

Unavailable

15

O-Ring

3240114

$6.99

16

WASHER Substituted by 7555908

3240134

$3.17

16

WASHER Substituted by 7555908

3240134

$3.17

17

SNAP RING

3240126

$0.32

18

Stopper

3240125

Unavailable

19

Cover

3240123

$3.81

20

SPRING

3240124

Unavailable

21

GEAR ASM. Substituted by 3240120

3240122

$292.59

22

GEAR ASM. Substituted by 4060119 (Incl. 17-21)

3240120

$292.59

22

SHAFT COMPL.

3240121

Unavailable
