PROPULSION SL 780 B974088 and Intl. SL 780 I974088 (4940924092B004)

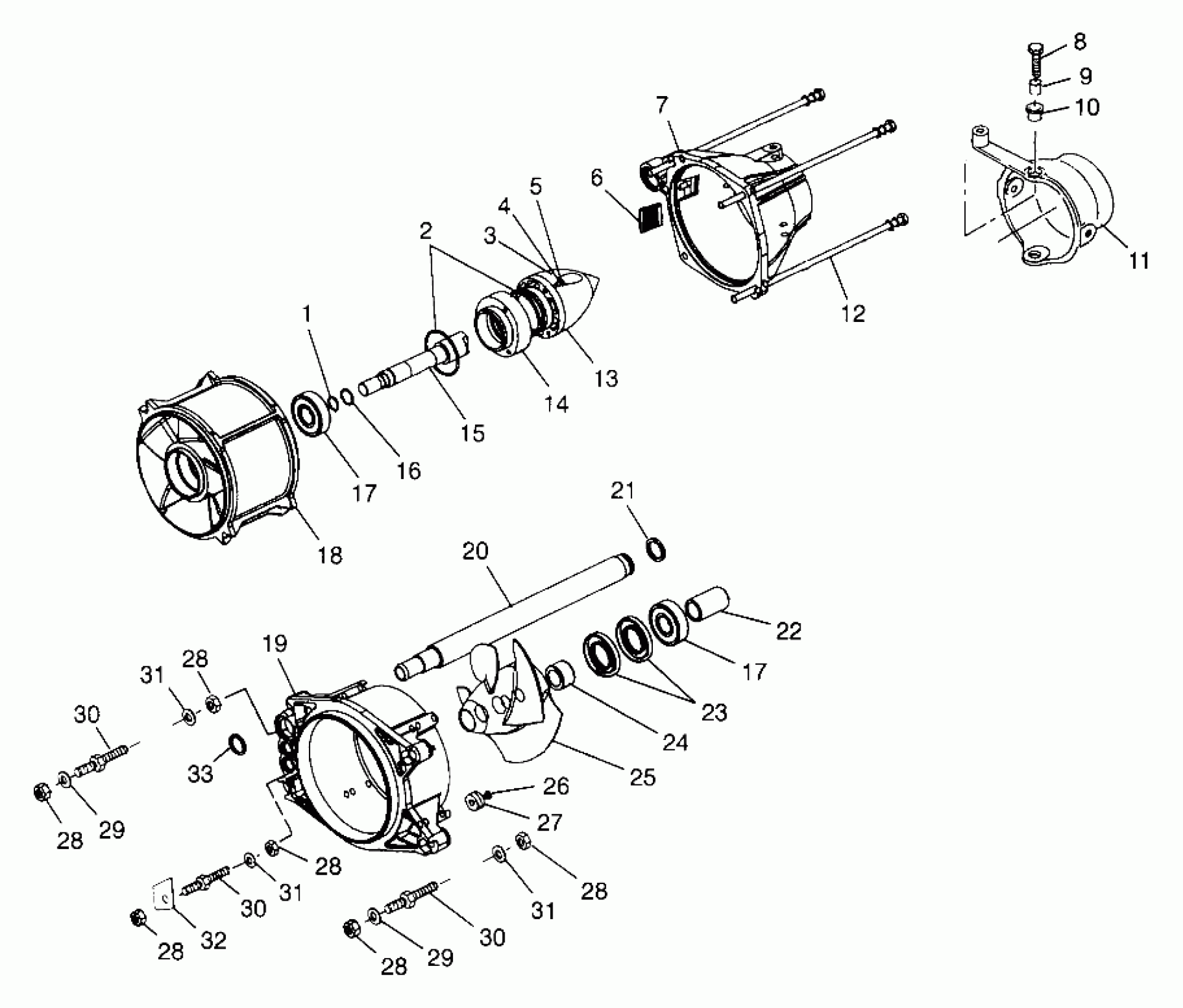

Polaris SL 780 - B974088 PROPULSION SL 780 B974088 and Intl. SL 780 I974088 (4940924092B004) Diagram
#
1
O-RING,(10)
5410817
Unavailable
2
O-RING(10)
5410819
Unavailable
3
WASHER, LOCK(10)
7552615
$4.99
4
WASHER, FLAT(10)
7555861
Unavailable
5
SCREW,S.S.,ALLEN(10)
7512090
Unavailable
6
SCREEN,ENG.INLET
5431523
Unavailable
7
NOZZLE,STAT.0 DEG,NO WED/SP
5131666
Unavailable
8
BOLT, S.S.(10)
7515366
Unavailable
9
Collar
5130938
Unavailable
10
BRG,STRG.NOZZLE,(10)
5431518
Unavailable
11
NOZZLE,STRG.REVERSE
5130960
Unavailable
12
BOLT
7515377
Unavailable
13
Cone, Pump
5431519
Unavailable
14
EXTENSION,TAILCONE,3/4"
5131245
Unavailable
15
SHAFT, STUB Substituted by 5132674
5020697
Unavailable
16
O-RING(10)
5410818
Unavailable
17
Bearing
3514008
Unavailable
17
Bearing
3514008
Unavailable
18
STATOR,PUMP,MACH Substituted by 5130983
5131708
Unavailable
19
HSG,PUMP,(MACH) Substituted by 2873081
5131310
Unavailable
20
PIPE,WATER,ENGINE
5431655
Unavailable
21
O RING,(10)
5410735
Unavailable
22
Spacer
5010294
Unavailable
23
SEAL,BRG,STATOR
3610043
Unavailable
24
Spacer, Impeller
5010295
Unavailable
25
IMPELLER,SL750
5131079
Unavailable
26
SCREW(10)
7522019
Unavailable
27
ANODE-ZINC Substituted by 2200745
5630598
Unavailable
28
NUT,HEX,S.S.(10)
7542455
Unavailable
28
NUT,HEX,S.S.(10)
7542455
Unavailable
28
NUT,HEX,S.S.(10)
7542455
Unavailable
28
NUT,HEX,S.S.(10)
7542455
Unavailable
28
NUT,HEX,S.S.(10)
7542455
Unavailable
28
NUT,HEX,S.S.(10)
7542455
Unavailable
29
Washer
7555966
$2.63
29
Washer
7555966
$2.63
30
STUD,MTG,PUMP
5020877
Unavailable
30
STUD,MTG,PUMP
5020877
Unavailable
30
STUD,MTG,PUMP
5020877
Unavailable
31
WASHER, FLAT(10)
7555841
Unavailable
31
WASHER, FLAT(10)
7555841
Unavailable
31
WASHER, FLAT(10)
7555841
Unavailable
32
BRKT,STRG.CABLE
5241741
Unavailable
33
SEAL,WATER PIPE
5411107
Unavailable
