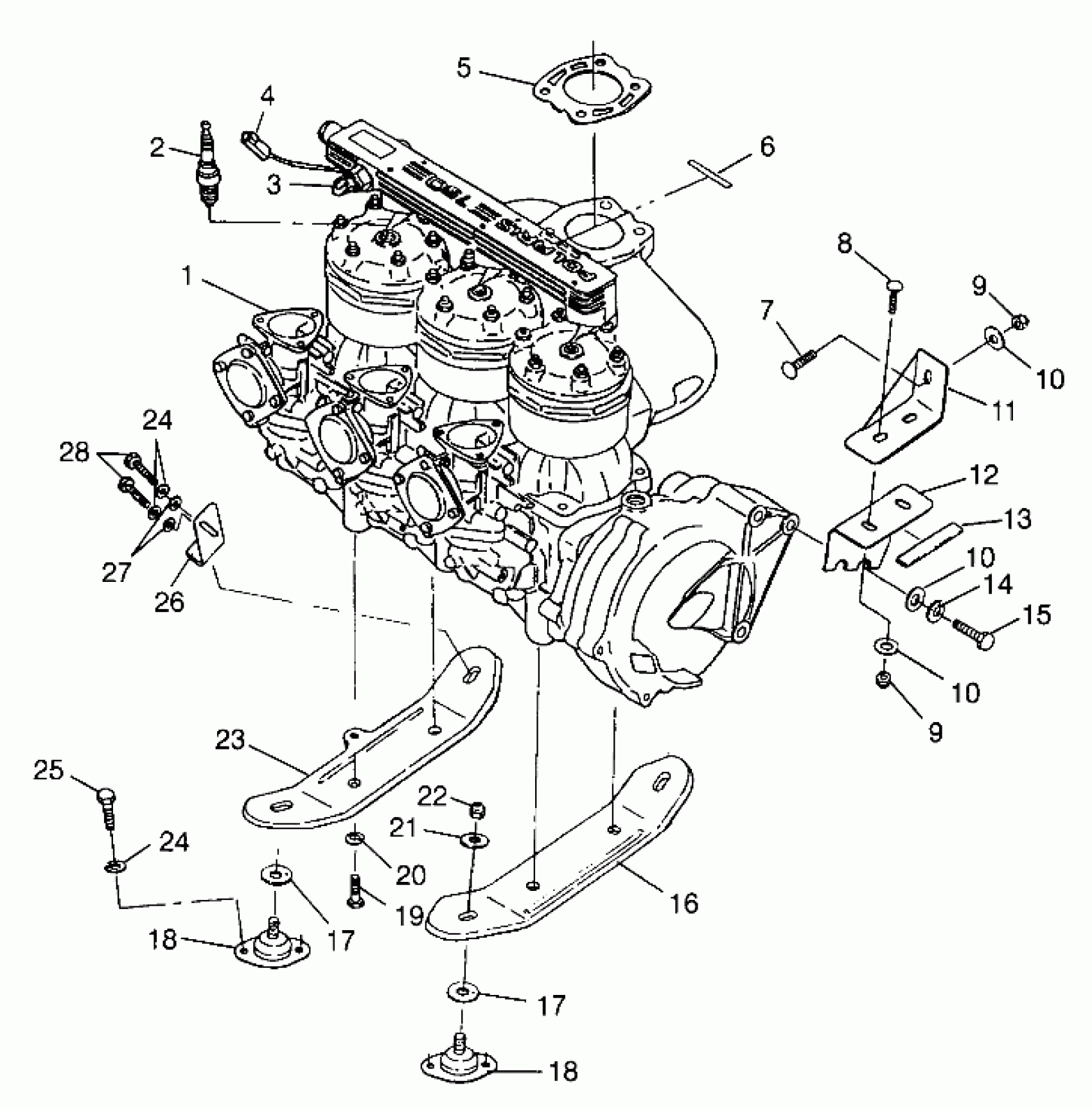

Polaris SL 780 - B974088 ENGINE MOUNTING SL 780 B974088 and Intl. SL 780 I974088 (4940924092B001) Diagram

#

Description
Price

1

ENG.(S.B.)EC78PWE02

3240286

Unavailable

2

SPARKPLUG, BPR-8ES(10)

3070174

Unavailable

3

SWITCH, TEMP.

4110174

Unavailable

4

Temp. Sensor (82 C) (See Pg. A31, Ref. 1)

----

Unavailable

5

Gasket, Exhaust (See Pg. A22, Ref. 5)

----

Unavailable

6

DECAL,WARN.ELEC.OPER.

7073712

Unavailable

7

BOLT(10)

7515516

$7.14

8

BOLT(10)

7515517

Unavailable

9

NUT,HEX,S.S.(10)

7542455

Unavailable

9

NUT,HEX,S.S.(10)

7542455

Unavailable

10

WASHER, FLAT(10)

7555841

Unavailable

10

WASHER, FLAT(10)

7555841

Unavailable

10

WASHER, FLAT(10)

7555841

Unavailable

11

MOUNT, (SLX)

1060118

Unavailable

12

BRACE,MUFFLER

5240702

Unavailable

13

Trim, Edge

8360012-10

$44.51

14

WASHER, LOCK, SS.(10)

7552608

$2.38

15

BOLT, S.S.(10)

7516914

Unavailable

16

PLATE,R.MT,CAST,(FUJI)

5630577

Unavailable

17

SHIM,ENG.MT.(PWC)

5211727

Unavailable

17

SHIM,ENG.MT.(PWC)

5211727

Unavailable

18

MT,ENG,ANTI-ROTATION Substituted by 3021103

3110055

$73.81

18

MT,ENG,ANTI-ROTATION Substituted by 3021103

3110055

$73.81

19

BOLT, S.S.(10)

7512573

$1.75

20

WASHER,LOCK,S.S.

7552609

$1.75

21

WASHER, FLAT, S.S.(10)

7555848

Unavailable

22

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

$3.59

23

PLATE,FR,RELIEVED,780

5630725

$90.48

24

WASHER, LOCK, S.S.(10)

7552610

Unavailable

24

WASHER, LOCK, S.S.(10)

7552610

Unavailable

25

BOLT, S.S.(10)

7515361

$2.19

26

BRKT,R.MUFFLER

5241211

Unavailable

27

WASHER, FLAT, S.S.,(10)

7555835

$0.69

28

BOLT, S.S.(10)

7515357

Unavailable
