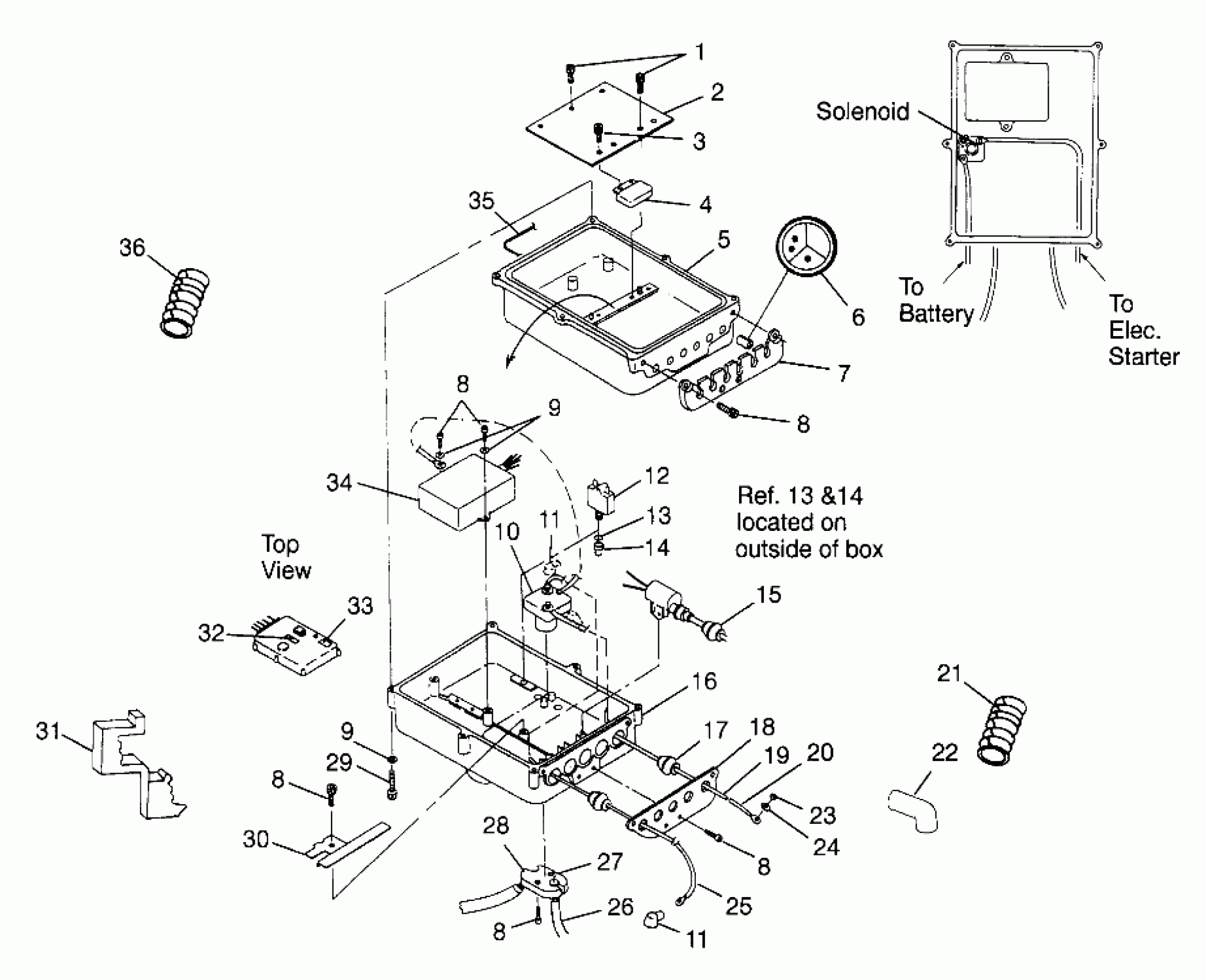

Polaris SL 780 - B974088 ELECTRICAL BOX SL 780 B974088 and Intl. SL 780 I974088 (4940924092B011) Diagram

#

Description
Price

1

BOLT, S.S.(10)

7512042

$2.62

2

TERM.BOARD ASM,MFD

2434014

Unavailable

3

SCREW,S.S.(10)

7512072

Unavailable

4

REG./RECT/CUTOFF,LR23 Substituted by 4060192

4060171

Unavailable

5

BOTTOM,ELEC.BOX

5131663

Unavailable

6

O-RING,(10)

5410817

Unavailable

6

GROMMET,SECTION,2-HOLE

5410852

Unavailable

6

GROMMET,SECTION,NO HOLE

5410850

Unavailable

7

PLATE,6-HOLE,CAST

5630497

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

9

WASHER(10)

7555836

$3.99

9

WASHER(10)

7555836

$3.99

10

Magnetic Switch (See Pg. A36, Ref. 9)

-------

Unavailable

11

INSULATOR-CABLE

5410346

$6.39

11

INSULATOR-CABLE

5410346

$6.39

12

CKT.BREAKER,15A.(WATER.)

2434011

Unavailable

13

O-RING

5410725

Unavailable

14

BOOT,THREADED,RED

7080461

Unavailable

15

GROMMET, COIL

5410677

Unavailable

16

TOP,ELECT.BOX

5131018

Unavailable

17

GROMMET, 16 GA.(10)

5410678

Unavailable

18

PLATE, 5-HOLE

5630416

Unavailable

19

CABLE,RED,SOL./START.

4010081

Unavailable

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

20

CONDUIT,CONVOL(30 CM)

4010051-30

Unavailable

21

CONDUIT,FLEX,1.250ID Substituted by 5521287-63

5521287-60

Unavailable

22

Cap, Spark Plug (See Pg. A36, Ref. 6)

-------

Unavailable

23

NUT, 6 MM.,S.S.(10)

7546705

$4.79

24

WASHER, LOCK(10)

7552613

Unavailable

25

CABLE,RED,BATT/SOL.

4010082

Unavailable

26

HARNESS,WIRE,MFD(SL)

2460518

Unavailable

27

PLATE, 2-HOLE

5630415

Unavailable

28

GROMMET,WIRE HARNESS

5410973

Unavailable

29

BOLT(10)

7515119

Unavailable

30

BRKT,RETAINER,COIL

5240414

Unavailable

31

T-CLIP(10)

7080471

$3.59

32

DECAL,WARN,HI.VOLT.

7073713

Unavailable

33

DECAL,ELECT.BOX RESET

7073734

Unavailable

34

C.D.I. System (See Pg. A36, Ref. 8)

-------

Unavailable

35

O-RING,(ELEC.BOX)

5410912

Unavailable

36

CONDUIT,CONVOL. Substituted by 4010051-15

4010051-05

Unavailable
