TRIM PACKAGE SL 780 B964087 and Intl. SL 780 I964087 (4935523552B004)

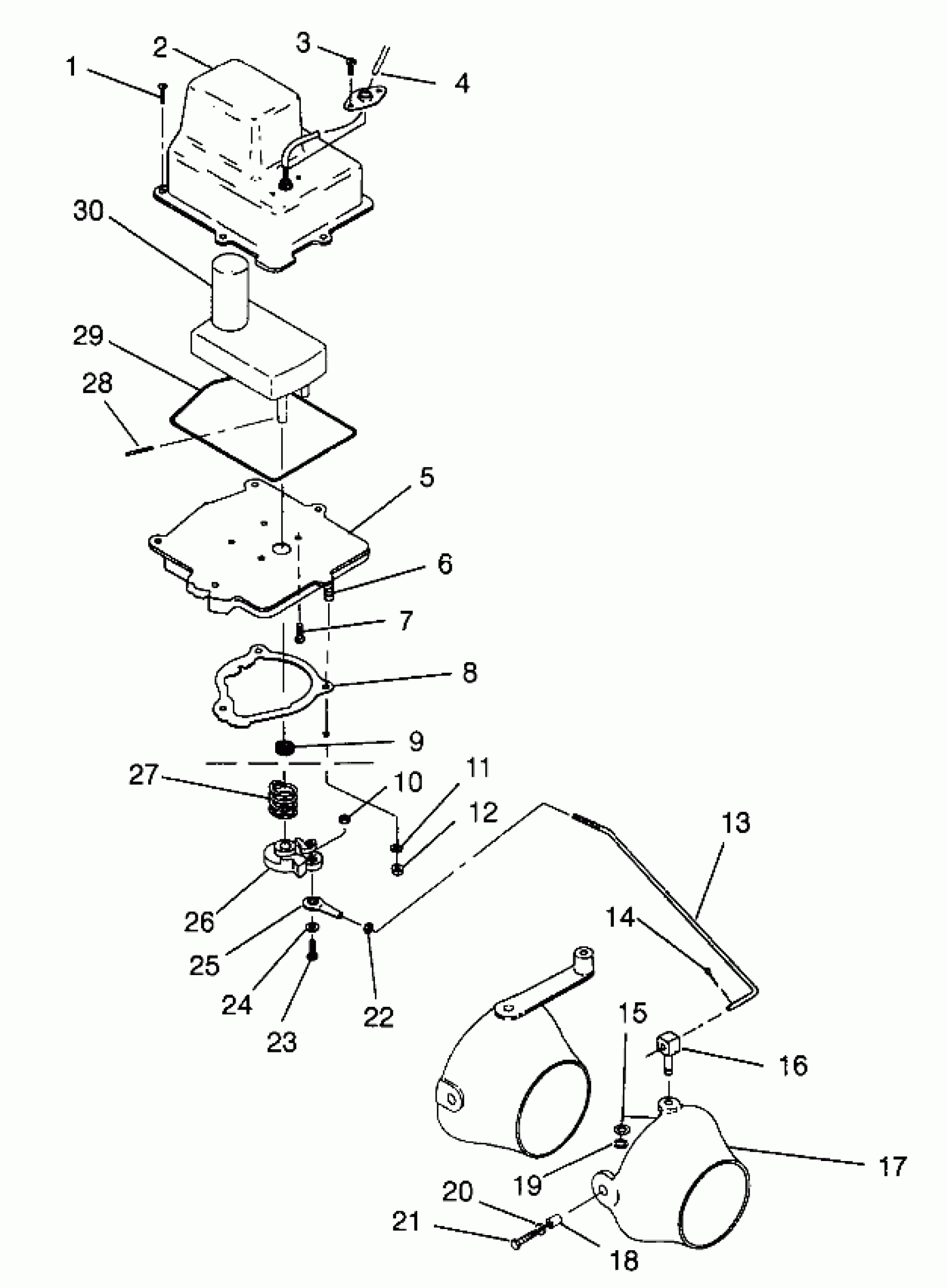

Polaris SL 780 - B964087 TRIM PACKAGE SL 780 B964087 and Intl. SL 780 I964087 (4935523552B004) Diagram
#
Description
Price
1
SCREW(10)
7512052
Unavailable
2
COVER,TRIM MTR.
5431551
Unavailable
3
SCREW(10)
7511873
Unavailable
4
HARNESS,TRIM
2460481
Unavailable
5
BASE, MOTOR Substituted by 5630798
5630543
Unavailable
6
STUD,S.S.(10)
5131050
Unavailable
7
SCREW(10)
7511872
Unavailable
8
GASKET, MOTOR BASE
5810818
Unavailable
9
SEAL, OIL
3610042
Unavailable
10
NUT, HEX, S.S.(10)
7541931
$4.79
11
WASHER, FLAT, S.S.(10)
7555839
Unavailable
12
NUT,NYLOK,S.S.(10)
7542133
Unavailable
13
LINKAGE,THREADED
5224550
Unavailable
14
PIN, COTTER(10)
7661010
$1.49
15
WASHER(10)
7555866
Unavailable
16
SWIVEL, ROD END Substituted by 5131463
5130939
Unavailable
17
NOZZLE,TRIM
5431765
Unavailable
18
Collar
5130938
Unavailable
19
RING-E,RET.(10)
7710427
Unavailable
20
WASHER,FLAT,S.S.(10)
7555874
$2.39
21
BOLT, S.S.(10)
7515361
Unavailable
22
NUT (10)
1860102
Unavailable
23
BOLT, S.S.(10)
7512041
Unavailable
24
WASHER, FLAT, S.S.(10)
7555837
Unavailable
25
ROD END, S.S.
7060154
Unavailable
26
LEVER, TRIM
5431550
Unavailable
27
SPRING,TRIM,HVY.
7041469
Unavailable
28
PIN, DRIVE Substituted by 7661418
7661417
Unavailable
29
O RING,MTR.COVER
5410756
Unavailable
30
GEAR ASM, MOTOR
4170004
Unavailable
