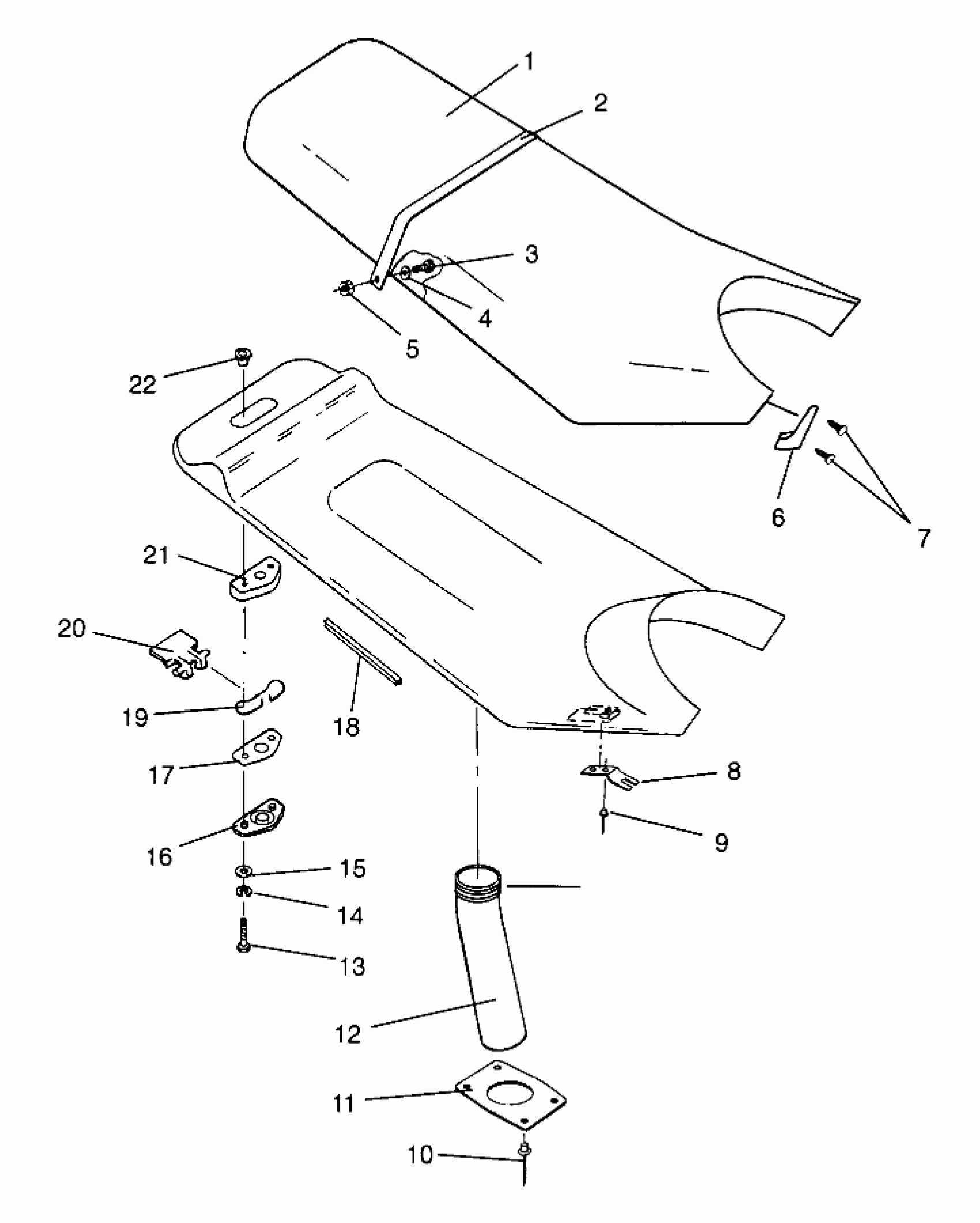

Polaris SL 780 - B964087 SEAT SL 780 B964087 and Intl. SL 780 I964087 (4935523552A011) Diagram

#

Description

Price

1

COVER,SEAT,PUR.WAVE

2681726-214

Unavailable

1

SEAT ASM,PUR.WAVE ,PWC (Incl. 1, 13-22)

2681955-214

Unavailable

2

STRAP,SEAT,PUR.WAVE

2690134-214

Unavailable

3

SCREW(10) Substituted by 7512052

7512055

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

Unavailable

5

NUT, WELD

7541935

Unavailable

6

SHIELD,LH SEAT,PUR.WAVE

5432124-214

Unavailable

6

SHIELD,RH SEAT,PUR.WAVE

5432125-214

Unavailable

7

SCREW(10)

7512089

Unavailable

8

CLIP,SEAT RETAINER

5222694

Unavailable

9

RIVET(50)

7661834

$5.99

10

RIVET(50)

7621479

$1.99

11

PLATE, RETAINER

5211347

Unavailable

12

DUCT, AIR OUTLET

5431369

Unavailable

13

BOLT, SS.(10)

7515123

Unavailable

14

WASHER, LOCK, S.S.(10)

7555838

Unavailable

15

WASHER, FLAT, S.S.(10)

7555839

Unavailable

16

PLATE,LATCH,BOT.SEAT BASE

5431357

Unavailable

17

PLATE,SEATBASE LATCH

5211314

Unavailable

18

SEAL,SEAT PROTRUSION

5521368

Unavailable

19

SPRING,SEATBASE LATCH

7042036

Unavailable

20

HANDLE, SEAT

5431358

Unavailable

21

PLATE,TOP,SEATBASE LATCH

5431359

Unavailable

22

NUT, TEE(10)

7542137

Unavailable
