PROPULSION SL 780 B964087 and Intl. SL 780 I964087 (4935523552B003)

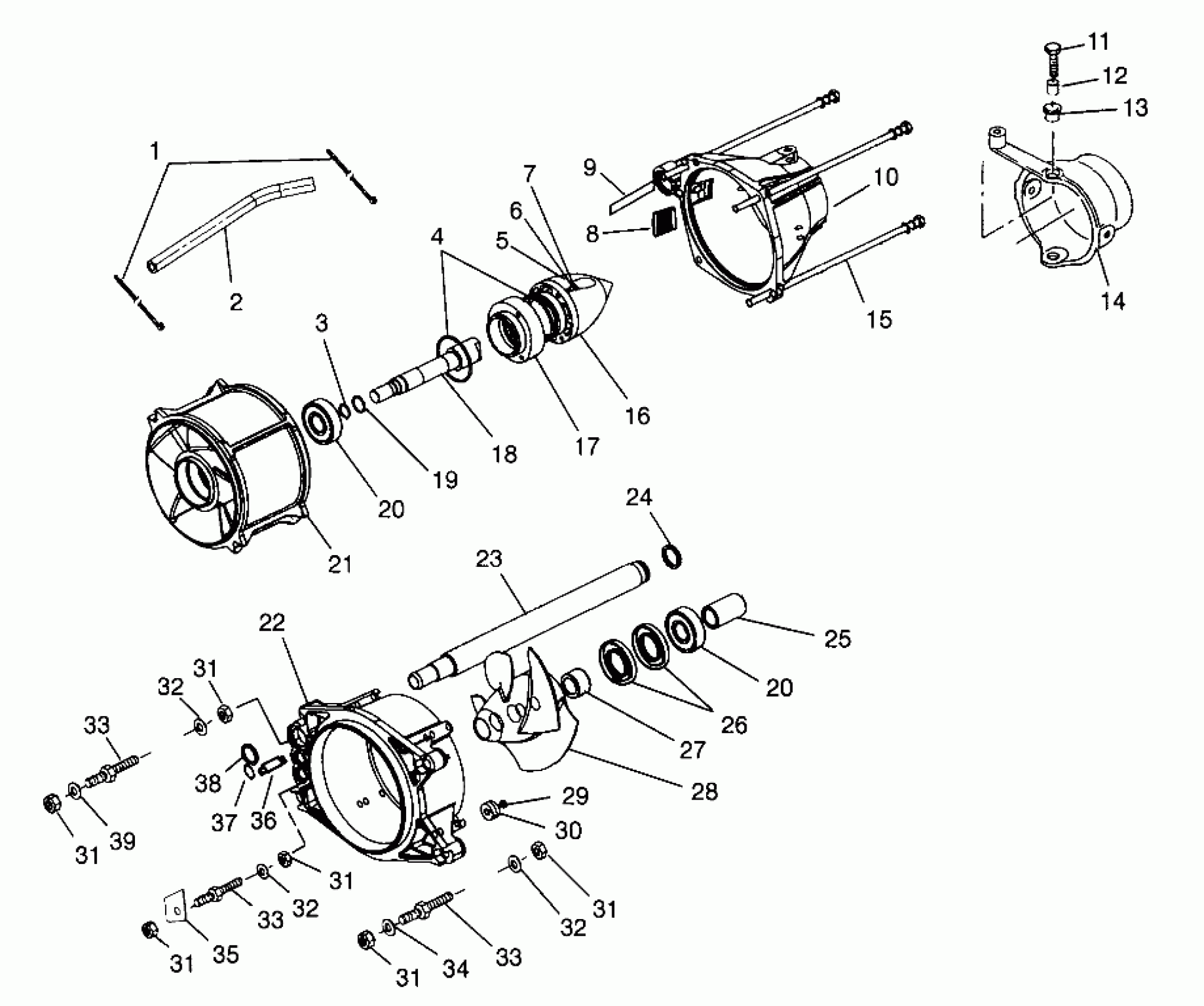

Polaris SL 780 - B964087 PROPULSION SL 780 B964087 and Intl. SL 780 I964087 (4935523552B003) Diagram
#
1
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
2
HOSE,WATER Substituted by 8450054-100
8450054-23
Unavailable
3
O-RING,(10)
5410817
Unavailable
4
O-RING(10)
5410819
Unavailable
5
WASHER, LOCK(10)
7552615
$4.99
6
WASHER, FLAT(10)
7555861
Unavailable
7
SCREW,S.S.,ALLEN(10)
7512090
Unavailable
8
SCREEN,ENG.INLET
5431523
Unavailable
9
TUBE,SIPHON,BILGE
5010293
Unavailable
10
NOZZLE ASM,1 TUBE,0 DEG
1350023
Unavailable
11
BOLT, S.S.(10)
7515366
Unavailable
12
Collar
5130938
Unavailable
13
BRG,STRG.NOZZLE,(10)
5431518
Unavailable
14
NOZZLE,STRG.REVERSE
5130960
Unavailable
15
BOLT
7515377
Unavailable
16
Cone, Pump
5431519
Unavailable
17
EXTENSION,TAILCONE,3/4"
5131245
Unavailable
18
SHAFT, STUB Substituted by 5132674
5020697
Unavailable
19
O-RING(10)
5410818
Unavailable
20
Bearing
3514008
Unavailable
20
Bearing
3514008
Unavailable
21
STATOR,PUMP (Mach.)
5130983
Unavailable
22
HSG,PUMP,(MACH) Substituted by 2873081
5131310
Unavailable
23
PIPE,WATER,ENGINE
5431655
Unavailable
24
O RING,(10)
5410735
Unavailable
25
Spacer
5010294
Unavailable
26
SEAL,BRG,STATOR
3610043
Unavailable
27
Spacer, Impeller
5010295
Unavailable
28
IMPELLER,SL750
5131079
Unavailable
29
SCREW(10)
7522019
Unavailable
30
ANODE-ZINC Substituted by 2200745
5630598
Unavailable
31
NUT,HEX,S.S.(10)
7542455
Unavailable
31
NUT,HEX,S.S.(10)
7542455
Unavailable
31
NUT,HEX,S.S.(10)
7542455
Unavailable
31
NUT,HEX,S.S.(10)
7542455
Unavailable
31
NUT,HEX,S.S.(10)
7542455
Unavailable
31
NUT,HEX,S.S.(10)
7542455
Unavailable
32
Washer
7555966
$2.63
32
Washer
7555966
$2.63
32
Washer
7555966
$2.63
33
STUD,MTG.PUMP Substituted by 5020880
5020804
Unavailable
33
STUD,MTG.PUMP Substituted by 5020880
5020804
Unavailable
33
STUD,MTG.PUMP Substituted by 5020880
5020804
Unavailable
34
WASHER, FLAT(10)
7555841
Unavailable
35
BRKT,STRG.CABLE
5241741
Unavailable
36
PIPE,WATER BILGE
5020835
Unavailable
37
SEAL,SIPHON TUBE
5411016
Unavailable
38
SEAL,WATER PIPE
5411107
Unavailable
39
WASHER, FLAT(10)
7555846
$5.59
