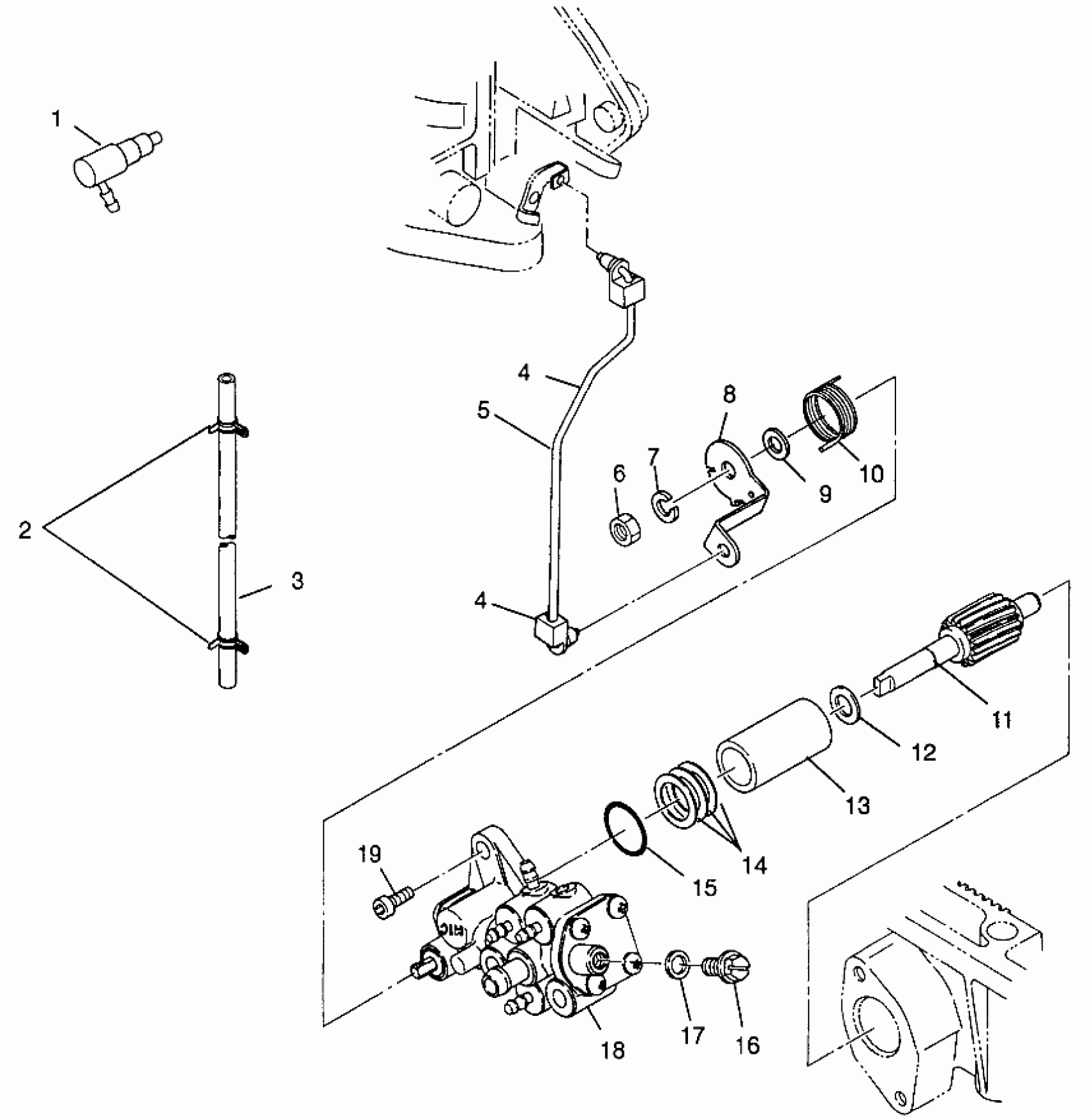

Polaris SL 780 - B964087 OIL PUMP SL 780 B964087 and Intl. SL 780 I964087 (4935523552C005) Diagram

#

Description
Price

1

VALVE, CHECK Substituted by 3086785

3083337

$56.65

2

Clamp, Hose

----

Unavailable

3

PIPE,VINYL,OIL(310 MM.) (330mm) (Incl. 2)

3240244

$15.56

4

BUSHING,LINKAGE

3240234

Unavailable

4

BUSHING,LINKAGE

3240234

Unavailable

5

ROD

3240267

$8.57

6

NUT

3240232

Unavailable

7

WASHER,SPRING

3240233

$0.95

8

LEVER,CONTROL

3240231

Unavailable

9

COLLAR,CAMSHAFT

3240229

$4.21

10

SPRING,RETURN

3240242

$7.38

11

GEAR,SMALL,OIL PUMP

3083131

$94.99

12

SPACER

3083130

$1.59

13

BUSHING

3240101

Unavailable

14

SPACER #3 (0.6mm)

3083673

Unavailable

14

SPACER #2 (0.3mm)

3083672

Unavailable

14

SPACER #1 (0.15mm)

3083671

Unavailable

15

O RING

3083127

Unavailable

16

SCREW,AIR VENT

3240096

Unavailable

17

PACKING(10)

3083126

$4.03

18

PUMP, OIL (Incl. 6-10, 15-17)

3240266

Unavailable

19

BOLT, SKT.HD.

3240198

$0.71
