HULL and BODY SL 780 B964087 and Intl. SL 780 I964087 (4935523552A006)

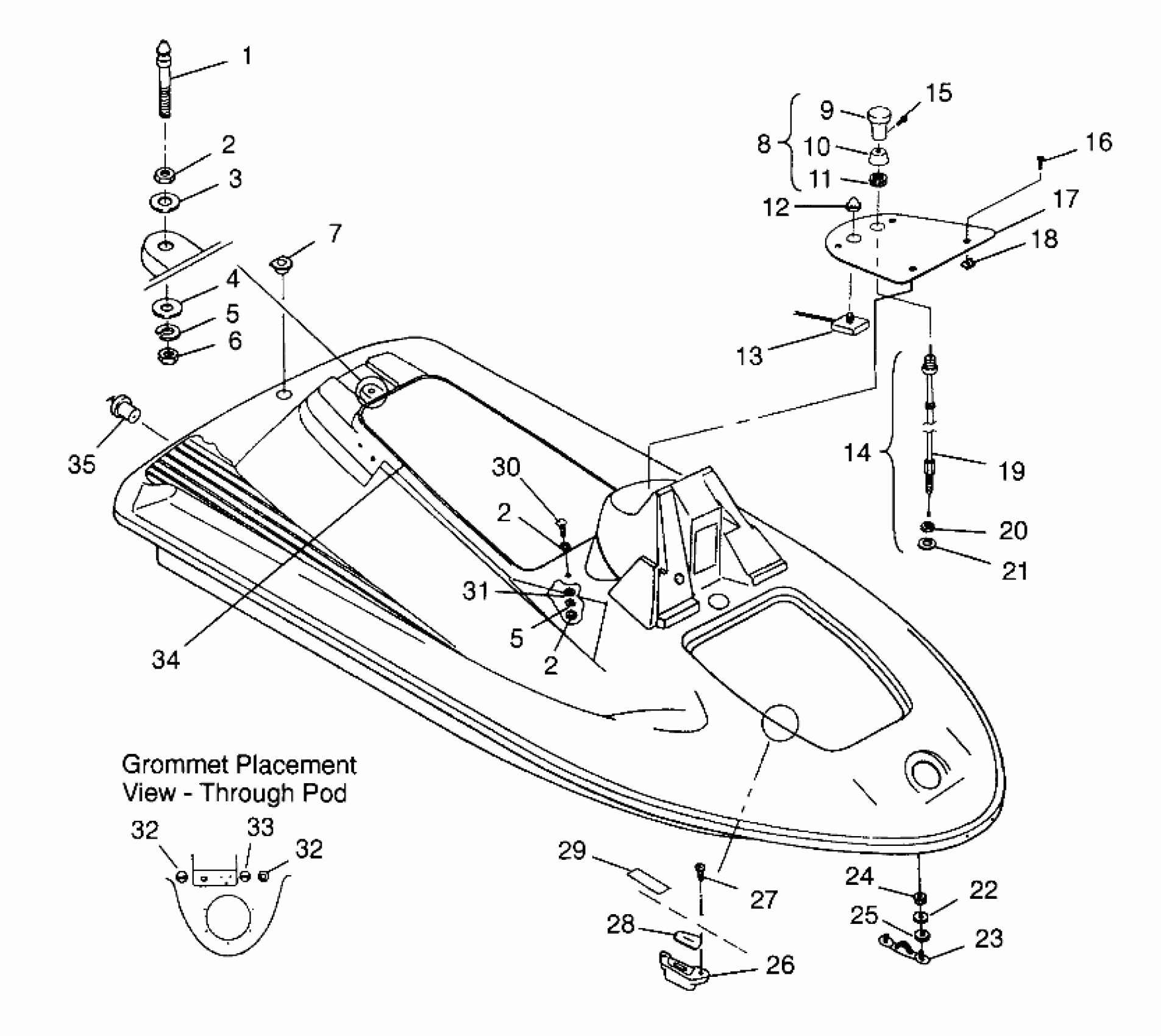

Polaris SL 780 - B964087 HULL and BODY SL 780 B964087 and Intl. SL 780 I964087 (4935523552A006) Diagram
#
1
PLUNGER,LATCH
5020753
Unavailable
2
NUT, HEX, S.S.,(10)
7542454
Unavailable
2
NUT, HEX, S.S.,(10)
7542454
Unavailable
2
NUT, HEX, S.S.,(10)
7542454
Unavailable
3
WASHER, FLAT(10)
7555845
Unavailable
4
WASHER, FLAT(10)
7555846
$5.59
5
WASHER, LOCK, S.S.(10)
7552607
Unavailable
5
WASHER, LOCK, S.S.(10)
7552607
Unavailable
6
NUT,HEX,S.S.(10)
7542455
Unavailable
7
EYELET,R.PUR.WAVE
5431404-214
Unavailable
8
KIT, CHOKE, (PWC) (Incl. 9-11, 15)
2200428
Unavailable
9
KNOB,CHOKE
2080004
Unavailable
10
COVER
2080003
Unavailable
11
NUT
2080002
Unavailable
12
NUT,WATERPROOF,STARTER SWITCH
7080513
Unavailable
13
SWITCH,STARTER
4110163
Unavailable
14
CONTROL ASM,CHOKE (Incl. 9-11, 15, 19)
2080011
Unavailable
15
Screw
2080005
Unavailable
16
SCREW, SS.(10)
7512047
Unavailable
17
PANEL,INST,P.RED (U.S.)
5431783-136
Unavailable
17
PANEL,INST,P.RED,ENG.FOG. (Intl.)
5432366-136
Unavailable
18
CLIP,'U',S.S.(10)
7670077
Unavailable
19
CABLE,CHOKE
7080505
Unavailable
20
NUT
2010125
Unavailable
21
WASHER
2010126
Unavailable
22
WASHER, FLAT, S.S.(10)
7555839
Unavailable
23
STRAP, BOW
2670150
Unavailable
24
NUT,NYLOK,S.S.(10)
7542133
Unavailable
25
WASHER,RUBBER(10)
7555870
Unavailable
26
STOP,DOOR SUPPORT
5431960
Unavailable
27
SCREW(10)
7512049
Unavailable
28
SEAL,DOOR SUPPORT
5810571
Unavailable
29
DECAL,DOOR,COMPARTMENT
7073717
Unavailable
30
BOLT,SPECIAL,SS.(10)
7515518
Unavailable
31
WASHER, FLAT(10)
7555841
Unavailable
32
GROMMET,BOOT
5410989
Unavailable
32
GROMMET,BOOT
5410989
Unavailable
33
GROMMET,BOOT
5410990
Unavailable
34
Seal, Seat (See Pg., Ref.)
-------
Unavailable
35
PLUG, BAIL
7010046
Unavailable
