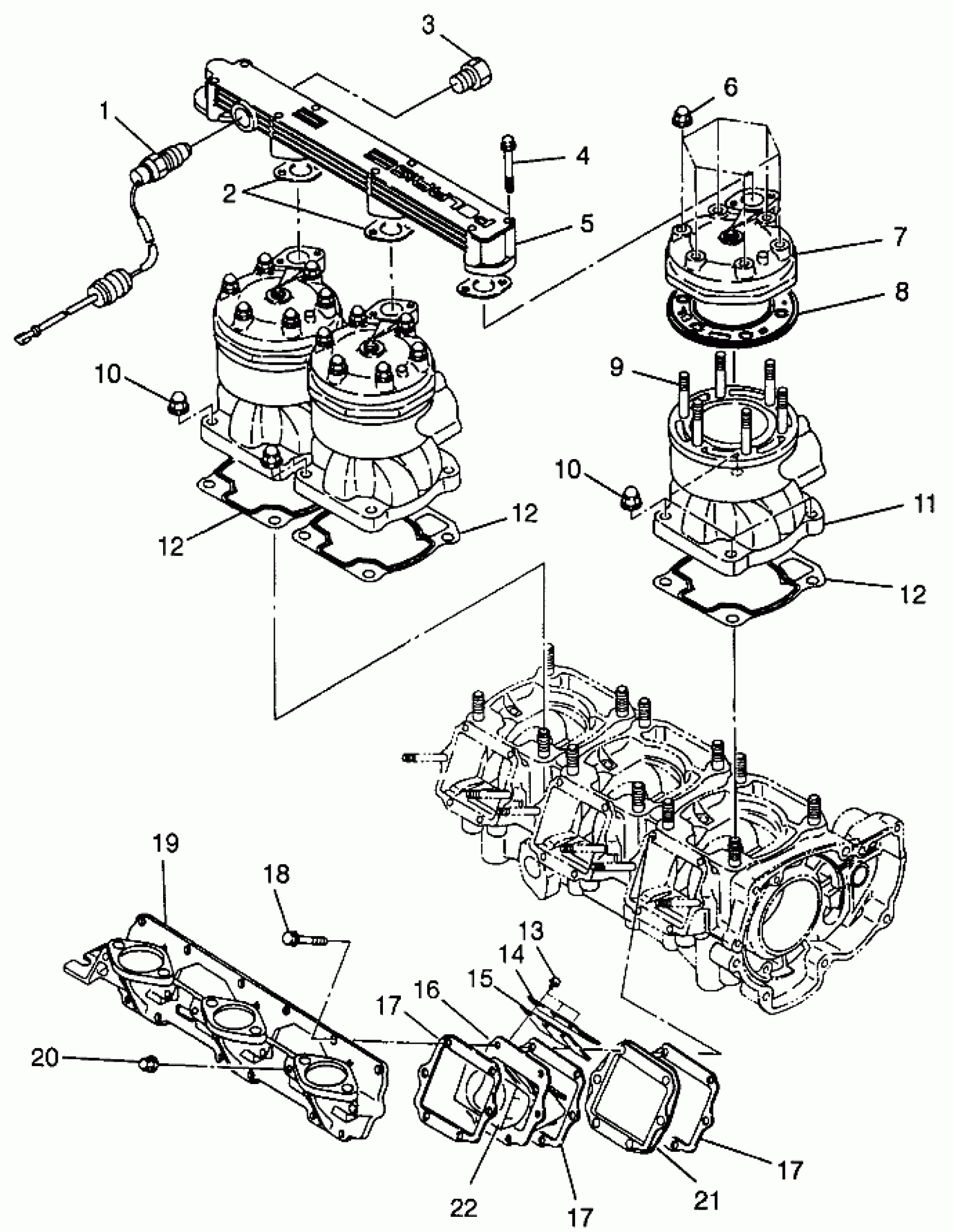

Polaris SL 780 - B964087 CYLINDER & MANIFOLD SL 780 B964087 and Intl. SL 780 I964087 (4935523552C001) Diagram

#

Description
Price

1

SWITCH,THERMO

3240223

Unavailable

2

GASKET(10)

3082937

Unavailable

3

PLUG

3240219

$12.21

4

BOLT Substituted by 3240075

3240259

Unavailable

5

MANIFOLD,WATER OUTLET

3240258

$247.99

6

NUT,FLANGE CAP

3240252

Unavailable

7

HEAD, CYL.

3240250

Unavailable

8

GASKET, HEAD (Head)

3240251

$41.27

9

STUD

3240211

Unavailable

10

NUT,FLANGE CAP

3240253

$6.35

10

NUT,FLANGE CAP

3240253

$6.35

11

CYLINDER (Incl. 9)

3240248

Unavailable

12

GASKET, CYL.

3240249

Unavailable

12

GASKET, CYL.

3240249

Unavailable

12

GASKET, CYL.

3240249

Unavailable

13

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

14

Stopper

3240065

Unavailable

15

VALVE, REED(10)

3240064

Unavailable

16

VALVE ASM., REED (Incl. 13-15)

3084147

Unavailable

17

GASKET, REED VALVE,(10) (0.5mm)

3084148

Unavailable

17

GASKET, REED VALVE,(10) (0.5mm)

3084148

Unavailable

17

GASKET, REED VALVE,(10) (0.5mm)

3084148

Unavailable

18

BOLT

3240255

Unavailable

19

PIPE,INTAKE,(3 CYL.)

3240254

$157.43

20

NUT,FLANGE CAP

3240256

$3.97

21

SPACER,REED VALVE (9.5mm)

3240257

$26.19

22

STUFFER,(REED VALVE ASM.)

3240164

$12.39
