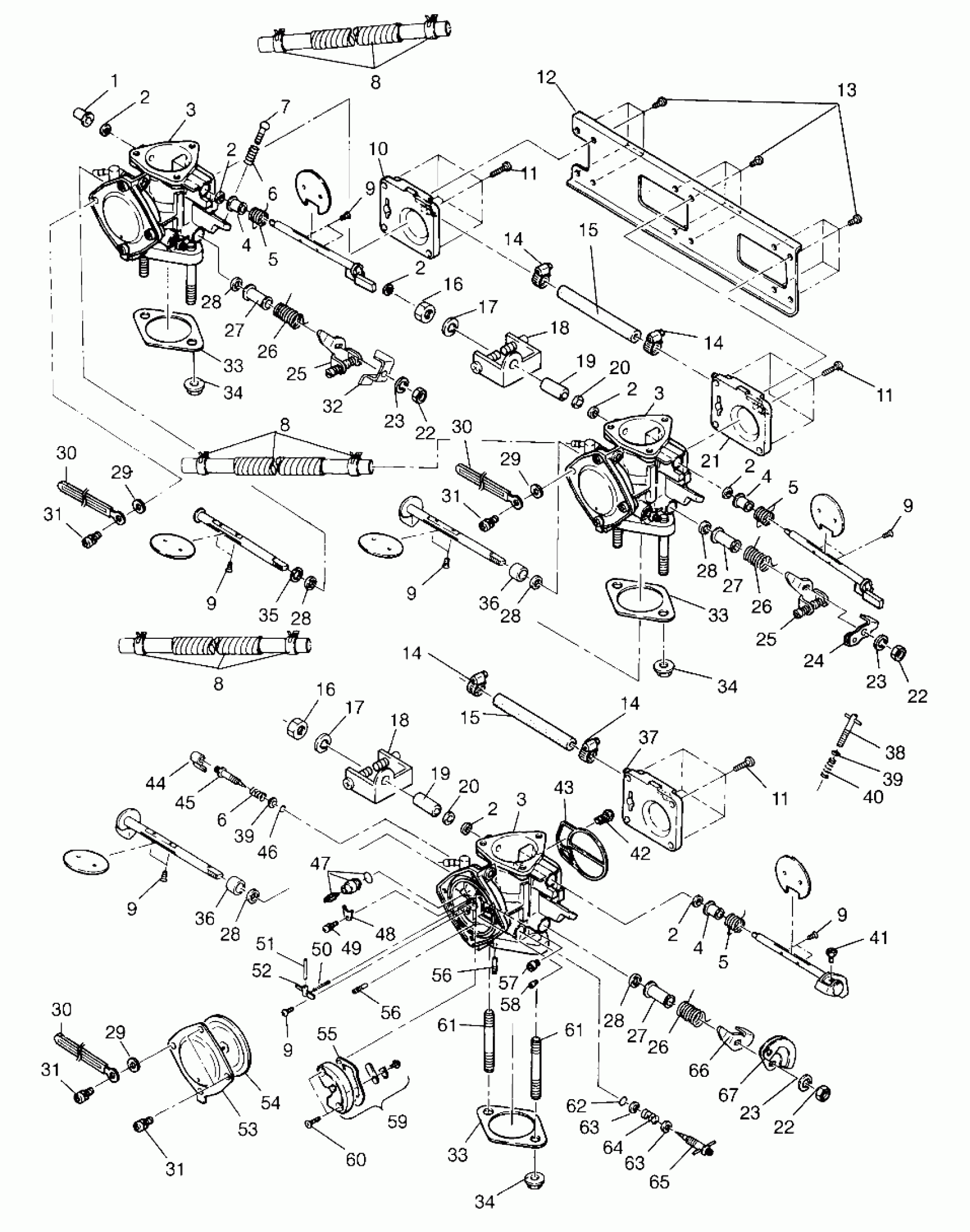

Polaris SL 780 - B964087 CARBURETOR ASSEMBLY SL 780 B964087 and Intl. SL 780 I964087 (4935523552C003) Diagram

#

Description
Price

1

RING

3140025

$1.67

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

3

CARBURETOR ASM,3 CYL. [No Longer Available] (Incl. 1-32, 35-67)

3140113

$727.99

3

CARBURETOR ASM,3 CYL. [No Longer Available] (Incl. 1-32, 35-67)

3140113

$727.99

3

CARBURETOR ASM,3 CYL. [No Longer Available] (Incl. 1-32, 35-67)

3140113

$727.99

4

RING

3140021

Unavailable

4

RING

3140021

Unavailable

4

RING

3140021

Unavailable

5

SPRING

3140020

$4.92

5

SPRING

3140020

$4.92

5

SPRING

3140020

$4.92

6

SPRING

3140054

$1.83

6

SPRING

3140054

$1.83

7

SCREW

3140027

$1.90

8

PIPE ASM,VINYL,3 (Incl. Spiral Tube, 2 Clamps)

3140109

$20.63

8

PIPE ASM,VINYL,3 (Incl. Spiral Tube, 2 Clamps)

3140109

$20.63

8

PIPE ASM,VINYL,3 (Incl. Spiral Tube, 2 Clamps)

3140109

$20.63

9

SCREW(10)

3140065

Unavailable

9

SCREW(10)

3140065

Unavailable

9

SCREW(10)

3140065

Unavailable

9

SCREW(10)

3140065

Unavailable

9

SCREW(10)

3140065

Unavailable

9

SCREW(10)

3140065

Unavailable

9

SCREW(10)

3140065

Unavailable

10

COVER ASM.

3140099

$58.24

11

SCREW

3140098

$3.65

11

SCREW

3140098

$3.65

11

SCREW

3140098

$3.65

12

PLATE

3140008

$81.75

13

SCREW

3140009

$1.59

14

CLAMP

3140028

$9.52

14

CLAMP

3140028

$9.52

14

CLAMP

3140028

$9.52

14

CLAMP

3140028

$9.52

15

HOSE

3140029

Unavailable

15

HOSE

3140029

Unavailable

16

NUT

3140079

Unavailable

16

NUT

3140079

Unavailable

17

WASHER, SPRING

3140078

Unavailable

17

WASHER, SPRING

3140078

Unavailable

18

LEVER ASM,CHOKE

3140101

Unavailable

18

LEVER ASM,CHOKE

3140101

Unavailable

19

RING

3140076

$3.33

19

RING

3140076

$3.33

20

RING

3140080

Unavailable

20

RING

3140080

Unavailable

21

COVER ASM.

3140102

$58.24

22

NUT

3140011

$2.70

22

NUT

3140011

$2.70

23

WASHER, SPRING

3140012

Unavailable

23

WASHER, SPRING

3140012

Unavailable

23

WASHER, SPRING

3140012

Unavailable

24

LEVER, THROTTLE

3140081

$10.63

25

LEVER ASM,THROTTLE

3140088

Unavailable

25

LEVER ASM,THROTTLE

3140088

Unavailable

26

SPRING

3140003

Unavailable

26

SPRING

3140003

Unavailable

26

SPRING

3140003

Unavailable

27

RING

3140002

$2.62

27

RING

3140002

$2.62

27

RING

3140002

$2.62

28

SEAL

3140001

Unavailable

28

SEAL

3140001

Unavailable

28

SEAL

3140001

Unavailable

28

SEAL

3140001

Unavailable

28

SEAL

3140001

Unavailable

28

SEAL

3140001

Unavailable

29

WASHER

3140091

Unavailable

29

WASHER

3140091

Unavailable

29

WASHER

3140091

Unavailable

30

PLATE

3140090

Unavailable

30

PLATE

3140090

Unavailable

30

PLATE

3140090

Unavailable

31

SCREW Substituted by 3140027

3140100

Unavailable

31

SCREW Substituted by 3140027

3140100

Unavailable

31

SCREW Substituted by 3140027

3140100

Unavailable

31

SCREW Substituted by 3140027

3140100

Unavailable

32

LEVER, THROTTLE

3140070

$4.92

33

GASKET,CARBURETOR,(10)

3240128

Unavailable

33

GASKET,CARBURETOR,(10)

3240128

Unavailable

33

GASKET,CARBURETOR,(10)

3240128

Unavailable

34

NUT, FLANGE,(10)

3240058

Unavailable

34

NUT, FLANGE,(10)

3240058

Unavailable

34

NUT, FLANGE,(10)

3240058

Unavailable

35

PACKING

3140030

Unavailable

36

Ring

3140032

Unavailable

36

Ring

3140032

Unavailable

37

COVER ASM.

3140095

$61.99

38

SCREW

3140096

Unavailable

39

WASHER

3140014

Unavailable

39

WASHER

3140014

Unavailable

40

SPRING

3140013

Unavailable

41

SCREW

3140019

Unavailable

42

FILTER

3140039

$7.84

43

O-RING,(GASKET)

3140006

$48.99

44

CAP

3140047

$4.13

45

ADJUSTER

3140048

Unavailable

46

RING

3140049

$9.70

47

NEEDLEVALVE ASM.

3140040

Unavailable

48

PLATE

3140037

Unavailable

49

SCREW,(10)

3140038

$1.43

50

SPRING(10)

3130491

Unavailable

51

PIN

3140036

Unavailable

52

ARM

3140041

$9.84

53

COVER

3140045

$2.46

54

DIAPHRAGM ASM.

3140044

Unavailable

55

GASKET

3140043

Unavailable

56

SCREW,(1)

3140018

Unavailable

56

SCREW,(1)

3140018

Unavailable

57

JET,MAIN,#107.5,RD.HD. (#107.5)

3140114

Unavailable

58

JET,PILOT,#72.5 (#72.5)

3140072

Unavailable

59

BODY ASM.

3140035

$40.48

60

SCREW,(10)

3140034

Unavailable

61

BOLT

3140026

$19.05

61

BOLT

3140026

$19.05

62

O-Ring

3140053

$5.65

63

WASHER

3140052

Unavailable

63

WASHER

3140052

Unavailable

64

SPRING

3140051

$1.83

65

ADJUSTER

3140050

Unavailable

66

LEVER, THROTTLE

3140004

$12.30

67

LEVER ASM,THROTTLE

3140010

$13.89
