STEERING ASSEMBLY SL 750 B954070 (4930523052A013)

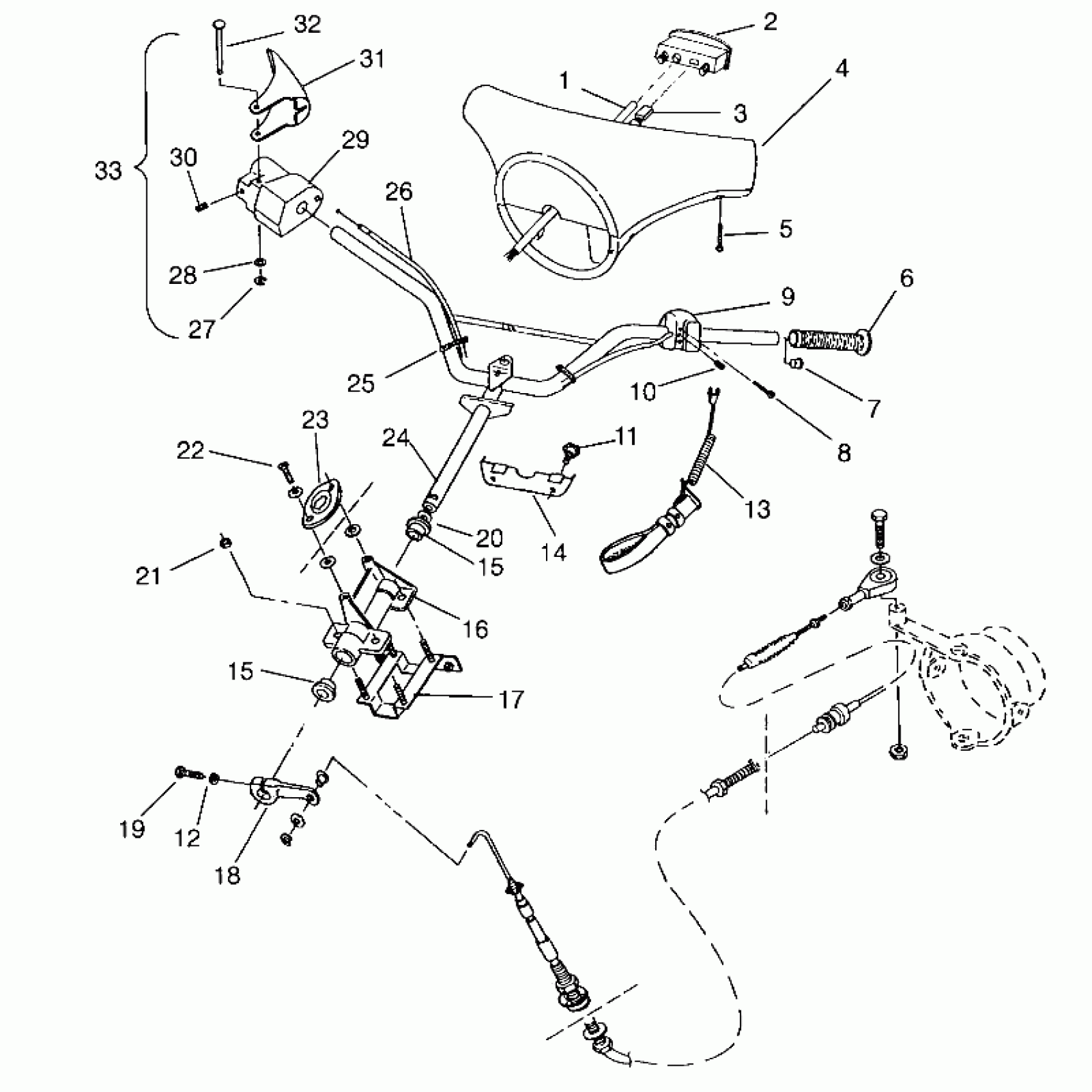

Polaris SL 750 - B954070 STEERING ASSEMBLY SL 750 B954070 (4930523052A013) Diagram
#
Description
Price
1
LINE,FUEL Substituted by 8450058-277
8450058-235
Unavailable
2
GAUGE,MULTI-FUNCTION Substituted by 3280252
3280202
Unavailable
3
HARNESS,WIRE,MFD(SL)
2460518
Unavailable
4
PAD,H'BAR,RUB.RED
5431957-182
Unavailable
5
SCREW, SS.(10)
7512047
Unavailable
6
GRIP,H'BAR,PURP.VELVET Substituted by 5410638-214
5410638-194
Unavailable
7
CAPLUG(10)
7080467
Unavailable
8
SCREW(10)
7516602
Unavailable
9
SWITCH,STOP/TRIM/TETHER
4110162
Unavailable
10
SCREW, S.S.(10)
7516601
Unavailable
11
BOLT,SHOULDER(10)
7515387
Unavailable
12
WASHER, LOCK, S.S.(10)
7552610
Unavailable
13
CORD, TETHER Substituted by 7080675
7080518
Unavailable
14
STOP, STEERING
5222677
Unavailable
15
BUSHING,STRG.SUPPORT
5431382
Unavailable
15
BUSHING,STRG.SUPPORT
5431382
Unavailable
16
SUPPORT,STRG.HUB,BLK. Substituted by 5131509
5130974-067
Unavailable
17
PLATE, BOLT
1060101
Unavailable
18
ARM, STRG.
5131127
Unavailable
19
BOLT, S.S.(10)
7515375
Unavailable
20
BUSH.(10)
7555875
Unavailable
21
NUT, HEX, S.S.(10)
7542335
Unavailable
22
SCREW,S.S.(10)
7512074
Unavailable
23
BRKT, RECEIVER
5431427
Unavailable
24
POST,STEERING,W/H'BAR
1823175
Unavailable
25
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
26
CABLE, THROTTLE
7080449
Unavailable
27
RING,RETAIN.EXT.,S.S.(10)
7710426
Unavailable
28
WASHER, FLAT, S.S.(10)
7555840
$3.35
29
BLOCK,THROTTLE CONTROL
5431396
Unavailable
30
SCREW, SET, S.S.(10)
7515115
Unavailable
31
LEVER,THROTTLE CONTROL
5431397
Unavailable
32
Pin, Retaining
7661628
Unavailable
33
THROTTLE CONTROL ASM. (Incl. 27-32)
2010122
Unavailable
