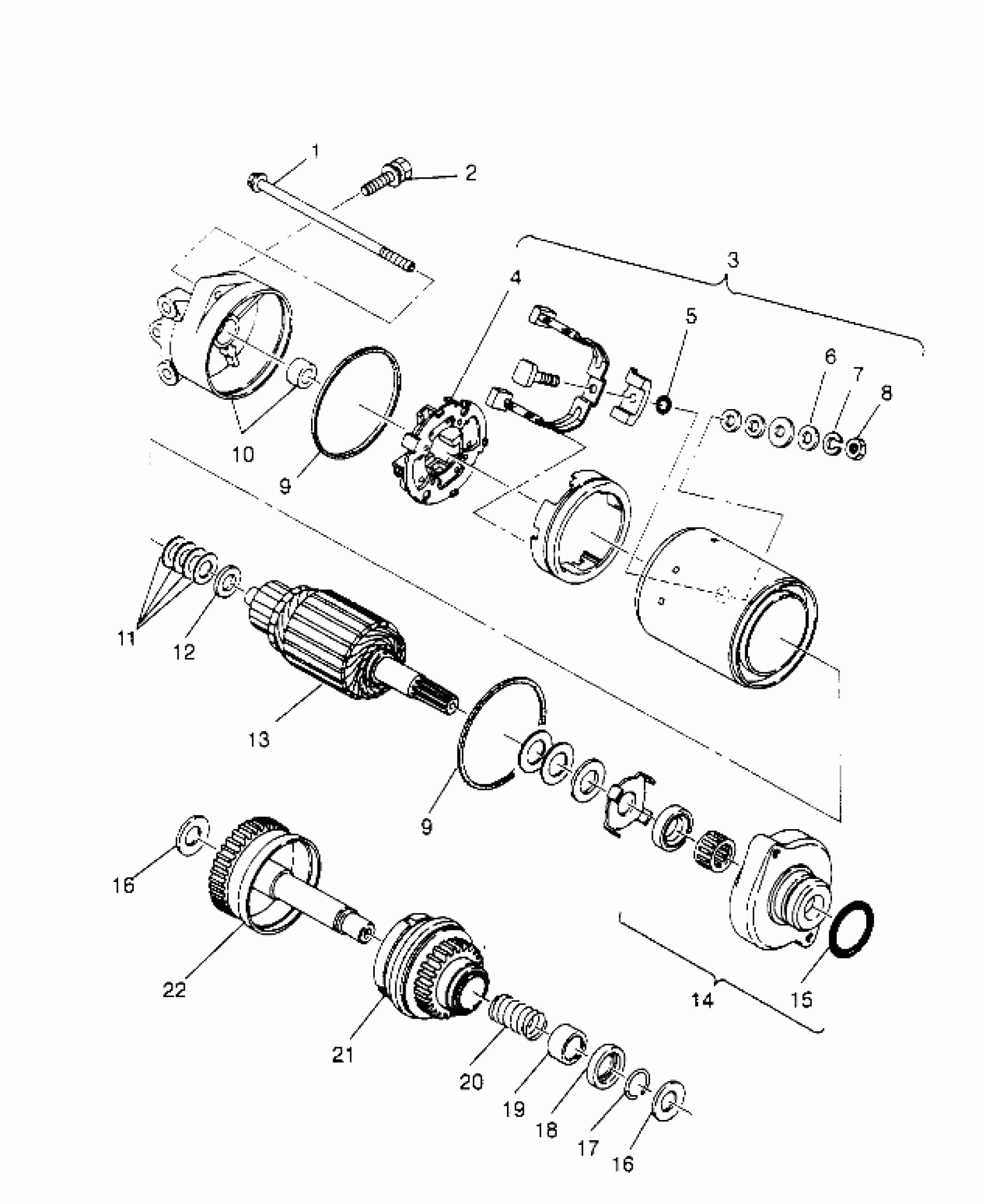

Polaris SL 750 - B954070 STARTING MOTOR ASSEMBLY SL 750 B954070 (4930523052C006) Diagram

#

Description
Price

1

Bolt, Through

3240113

Unavailable

2

BOLT, FLANGE

3240062

Unavailable

3

BRUSH, COMPL. (Incl. 4-8, 12)

3240115

Unavailable

4

Spring, Brush

3240111

Unavailable

5

O-RING

3084408

Unavailable

6

WASHER(10)

3240119

Unavailable

7

WASHER, SPRING(10)

3240117

Unavailable

8

NUT(10)

3240116

Unavailable

9

RING, RUBBER

3084405

Unavailable

9

RING, RUBBER

3084405

Unavailable

10

BRACKET ASM,REAR

3240207

Unavailable

11

WASHER, THRUST(10)

3240118

Unavailable

12

Washer, Thrust

3240112

Unavailable

13

ARMATURE ASM.

3240205

Unavailable

14

BRACKET ASM,FRONT (Incl. 15)

3240206

Unavailable

15

O-Ring

3240114

$5.59

16

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

16

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

17

SNAP RING

3240126

Unavailable

18

Stopper

3240125

Unavailable

19

Cover

3240123

Unavailable

20

SPRING

3240124

Unavailable

21

GEAR ASM. Substituted by 3240120

3240122

Unavailable

22

GEAR ASM. Substituted by 4060119 (Incl. 16-21)

3240120

Unavailable

22

MOTOR ASM,STARTER (Incl. 1, 3-13, 15)

3240110

Unavailable

22

SHAFT COMPL.

3240121

Unavailable
