Description

Price

1

SEAT ASM,RUBINE RED,(PWC) (Incl. 8, 15-24)

2681725-182

Unavailable

2

STRAP,SEAT,RUB.RED

2690095-182

Unavailable

3

SCREW(10) Substituted by 7512052

7512055

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

Unavailable

5

NUT, WELD

7541935

Unavailable

6

SHIELD,RH SEAT,RUB.RED

5432125-182

Unavailable

6

SHIELD,LH SEAT,RUB.RED

5432124-182

Unavailable

7

SCREW(10)

7512089

Unavailable

8

COVER,SEAT,RUB.RED

2681726-182

Unavailable

9

Desc not available [No Longer Available]

5431375

Unavailable

10

CLIP,SEAT RETAINER

5222694

Unavailable

11

RIVET(50)

7661834

$5.99

12

RIVET(50)

7621479

$1.99

13

PLATE, RETAINER

5211347

Unavailable

14

DUCT, AIR OUTLET

5431369

Unavailable

15

BOLT, SS.(10)

7515123

Unavailable

16

WASHER, LOCK, S.S.(10)

7555838

Unavailable

17

WASHER, FLAT, S.S.(10)

7555839

Unavailable

18

PLATE,LATCH,BOT.SEAT BASE

5431357

Unavailable

19

PLATE,SEATBASE LATCH

5211314

Unavailable

20

SEAL, SEAT Substituted by 2200760

5521288

Unavailable

21

SPRING,SEATBASE LATCH

7042036

Unavailable

22

HANDLE, SEAT

5431358

Unavailable

23

PLATE,TOP,SEATBASE LATCH

5431359

Unavailable

24

NUT, TEE(10)

7542137

Unavailable

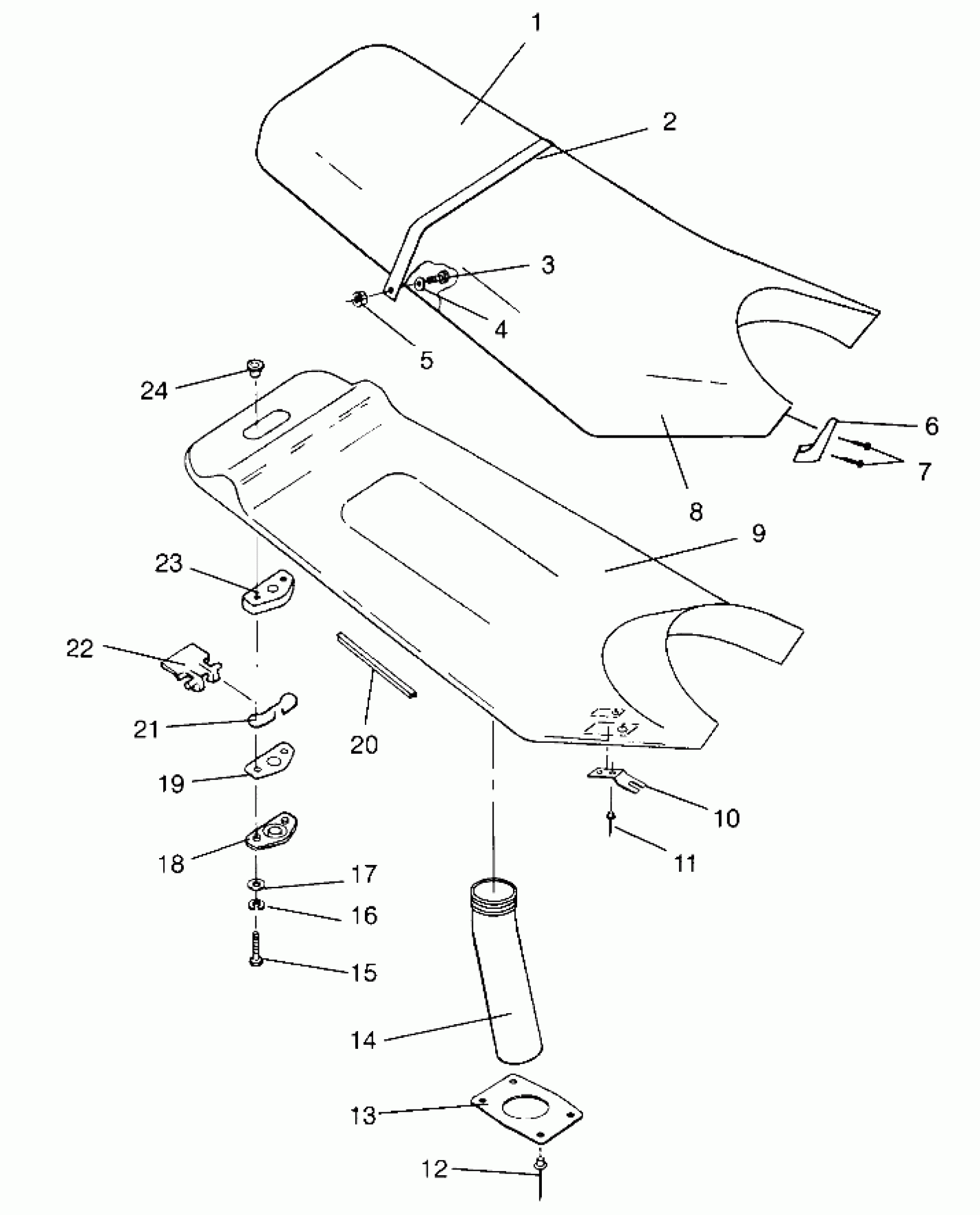

Polaris SL 750 - B954070 SEAT ASSEMBLY SL 750 B954070 (4930523052A011) Diagram

SEAT ASM,RUBINE RED,(PWC) (Incl. 8, 15-24)

STRAP,SEAT,RUB.RED

SCREW(10) Substituted by 7512052

WASHER, FLAT, S.S.(10)

NUT, WELD

SHIELD,RH SEAT,RUB.RED

SHIELD,LH SEAT,RUB.RED

SCREW(10)

COVER,SEAT,RUB.RED

Desc not available [No Longer Available]

CLIP,SEAT RETAINER

RIVET(50)

RIVET(50)

PLATE, RETAINER

DUCT, AIR OUTLET

BOLT, SS.(10)

WASHER, LOCK, S.S.(10)

WASHER, FLAT, S.S.(10)

PLATE,LATCH,BOT.SEAT BASE

PLATE,SEATBASE LATCH

SEAL, SEAT Substituted by 2200760

SPRING,SEATBASE LATCH

HANDLE, SEAT

PLATE,TOP,SEATBASE LATCH

NUT, TEE(10)
