HULL and BODY ASSEMBLY SL 750 B954070 (4930523052A006)

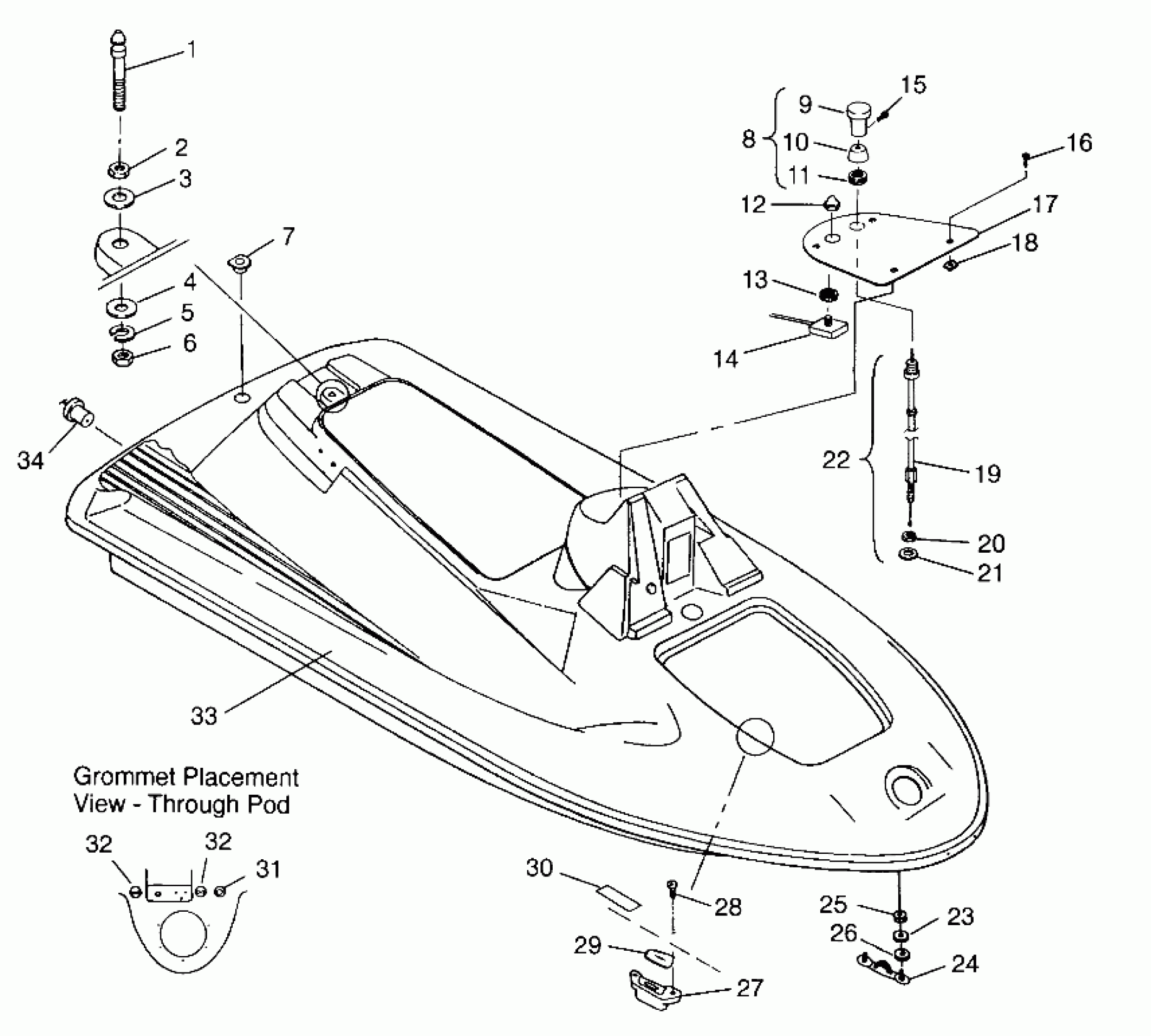

Polaris SL 750 - B954070 HULL and BODY ASSEMBLY SL 750 B954070 (4930523052A006) Diagram
#
Description
Price
1
PLUNGER,LATCH
5020753
Unavailable
2
NUT, HEX, S.S.,(10)
7542454
Unavailable
3
WASHER, FLAT(10)
7555845
Unavailable
4
WASHER, FLAT(10)
7555846
$5.59
5
WASHER, LOCK, S.S.(10)
7552607
Unavailable
6
NUT,HEX,S.S.(10)
7542455
Unavailable
7
EYELET,R.PURP.VELVET
5431404-194
Unavailable
8
KIT, CHOKE, (PWC) (Incl. 9-11, 15)
2200428
Unavailable
9
KNOB,CHOKE
2080004
Unavailable
10
COVER
2080003
Unavailable
11
NUT
2080002
Unavailable
12
NUT,WATERPROOF,STARTER SWITCH
7080513
Unavailable
13
NUT,BRASS,(10)
7544501
Unavailable
14
SWITCH,STARTER
4110163
Unavailable
15
Screw
2080005
Unavailable
16
SCREW, SS.(10)
7512047
Unavailable
17
PANEL,INST,PURP.VIOL.
5431783-194
Unavailable
18
CLIP,'U',S.S.(10)
7670077
Unavailable
19
CABLE, CHOKE
7080448
Unavailable
20
NUT
2010125
Unavailable
21
WASHER
2010126
Unavailable
22
CONTROL ASM, CHOKE (Incl. 9-11, 15, 19)
2080001
Unavailable
23
WASHER, FLAT, S.S.(10)
7555839
Unavailable
24
STRAP, BOW
2670150
Unavailable
25
NUT,NYLOK,S.S.(10)
7542133
Unavailable
26
WASHER,RUBBER(10)
7555870
Unavailable
27
STOP,DOOR SUPPORT
5431960
Unavailable
28
SCREW(10)
7512049
Unavailable
29
SEAL,DOOR SUPPORT
5810571
Unavailable
30
DECAL,DOOR,COMPARTMENT
7073717
Unavailable
31
GROMMET,BOOT
5410990
Unavailable
32
GROMMET,BOOT
5410989
Unavailable
32
GROMMET,BOOT
5410989
Unavailable
33
BOAT BODY ASM. [No Longer Available] (Incl. 2, 4-7, Housing Shaft & Thru-Hull)
2631618
Unavailable
34
PLUG, BAIL
7010046
Unavailable
