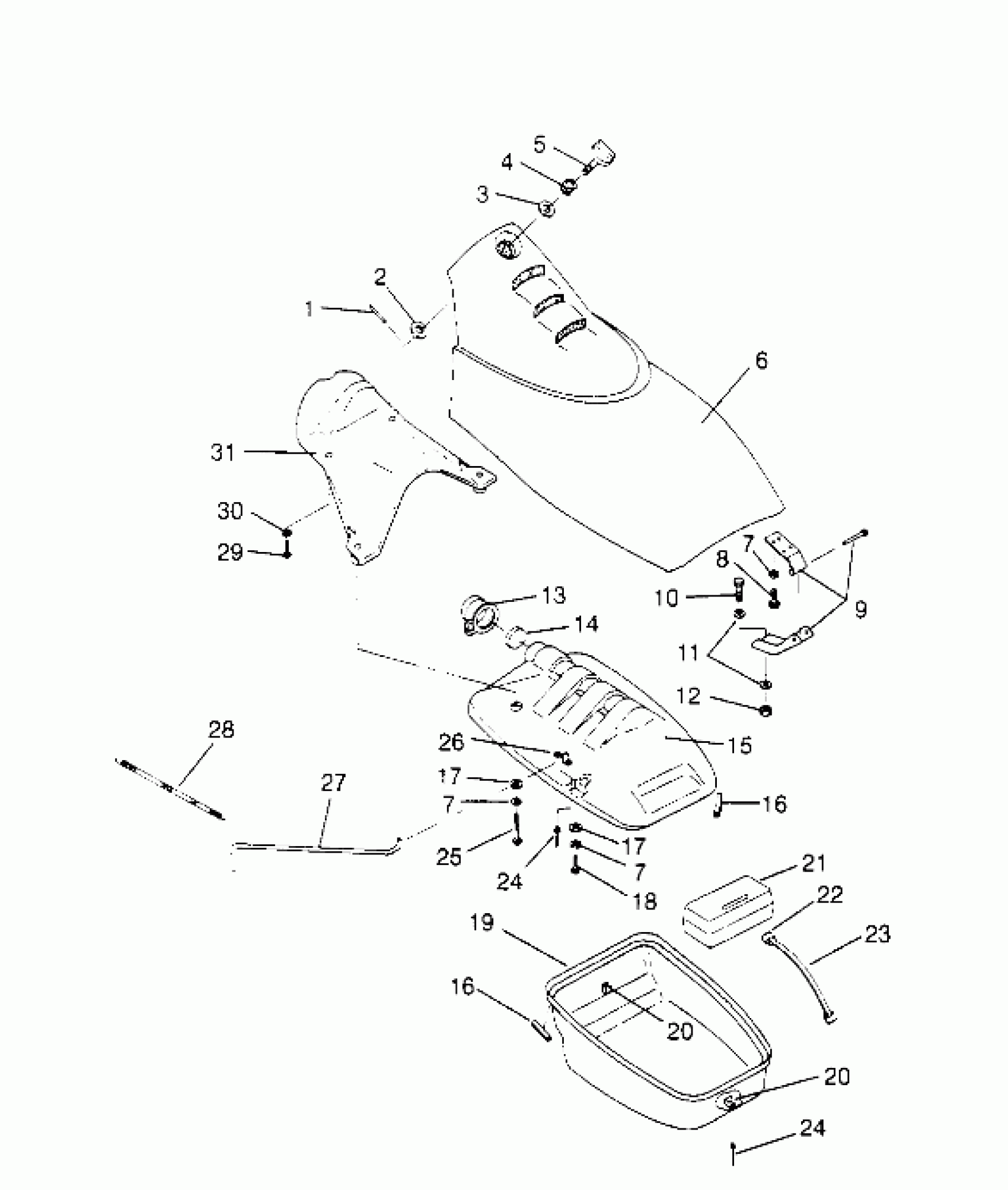

Polaris SL 750 - B954070 FRONT STORAGE COMPARTMENT SL 750 B954070 (4930523052A008) Diagram

#

Description
Price

1

PIN, GROOVED, S.S.(10)

7661630

Unavailable

2

CUSHION, VIBRATION

5810570

Unavailable

3

WASHER, WEAR

5431426

Unavailable

4

SPRING,COMPRESSION

7041275

$15.48

5

KNOB,DOOR COMP,PURP.VEL.

5431383-194

Unavailable

6

DOOR,COMP,PURP.VELVET Substituted by 2201145-194

5431324-194

Unavailable

7

WASHER, LOCK, S.S.(10)

7555838

Unavailable

7

WASHER, LOCK, S.S.(10)

7555838

Unavailable

7

WASHER, LOCK, S.S.(10)

7555838

Unavailable

8

BOLT, S.S.(10)

7515121

$0.59

9

HINGE ASM,COMPARTMENT

2635012

Unavailable

10

BOLT, S.S.

7515365

Unavailable

11

WASHER, FLAT, S.S.(10)

7555831

Unavailable

12

NUT, HEX, S.S.(10)

7542335

Unavailable

13

CAP,FIRE EXT.,YELLOW

5431398-053

$5.71

14

PAD,FOAM,FIRE EXT.

5810799

Unavailable

15

LID,BCKT,FR.STORAGE Substituted by 5432579

5431489

Unavailable

16

SEAL,FR.STORAGE BKT.

5521252

Unavailable

16

SEAL,FR.STORAGE BKT.

5521252

Unavailable

17

WASHER, FLAT, S.S.(10)

7555839

Unavailable

17

WASHER, FLAT, S.S.(10)

7555839

Unavailable

18

BOLT(10)

7515127

Unavailable

19

BUCKET,FR.STORAGE Substituted by 5432526

5431394

Unavailable

20

Clip

5240187

$6.35

20

Clip

5240187

$6.35

21

BOX, TOOL

5431508

Unavailable

22

HOOK,'D',SST/SS,(10)

5224472

Unavailable

23

STRAP-BATTERY

5430621

Unavailable

24

RIVET

7621478

Unavailable

24

RIVET

7621478

Unavailable

25

BOLT(10)

7515130

Unavailable

26

RETAINER,DOOR SUPPORT

5222782

$1.19

27

SUPPORT,DOOR,COMPART.

5224471

$19.68

28

SPRING,DOOR SUPPORT

7042038

Unavailable

29

SCREW(10)

7512049

Unavailable

30

WASHER, FLAT, S.S.(10)

7555837

$1.59

31

BAFFLE,AIR INTAKE

5431546

$10.63
