Description

Price

1

INTAKE,UPPER MANIFOLD

5431406-157

Unavailable

2

SCREW(10)

7512060

Unavailable

3

SCREEN, INTAKE

5222779

Unavailable

4

GASKET,INT.SCREEN

5410687

Unavailable

5

INTAKE ASM,LOW,W/OIL FITTING

1253129

Unavailable

6

BOLT(10)

7516801

Unavailable

7

WASHER, LOCK(10)

7552613

Unavailable

8

GASKET,ARRESTOR/CARB.

5830013

Unavailable

9

BRKT, FUEL PUMP,WELD.

1060103

Unavailable

10

BOLT, S.S.(10)

7515121

Unavailable

11

WASHER, LOCK, S.S.(10)

7555838

Unavailable

12

BOLT(10)

7515127

Unavailable

13

BOLT(10)

7515129

Unavailable

14

CLAMP, HOSE, S.S.(10)

7080457

Unavailable

15

DUCT,INLET,AIR(SHORT) (Short)

5432063

Unavailable

16

DUCT,INTAKE,(HULL AIR)

5432065

Unavailable

17

RETAINER,FUEL VENT(10)

5521342

Unavailable

18

RETAINER,VENT OIL(10)

5521339

Unavailable

19

SEAL,AIR INT.DUCT

5410650

Unavailable

20

RIVET(50)

7621479

$1.99

21

Check Valve (See Pg. , Ref. )

-------

Unavailable

22

Vinyl Pipe (See Pg. , Ref. )

-------

Unavailable

23

T-CLIP(10)

7080471

$3.59

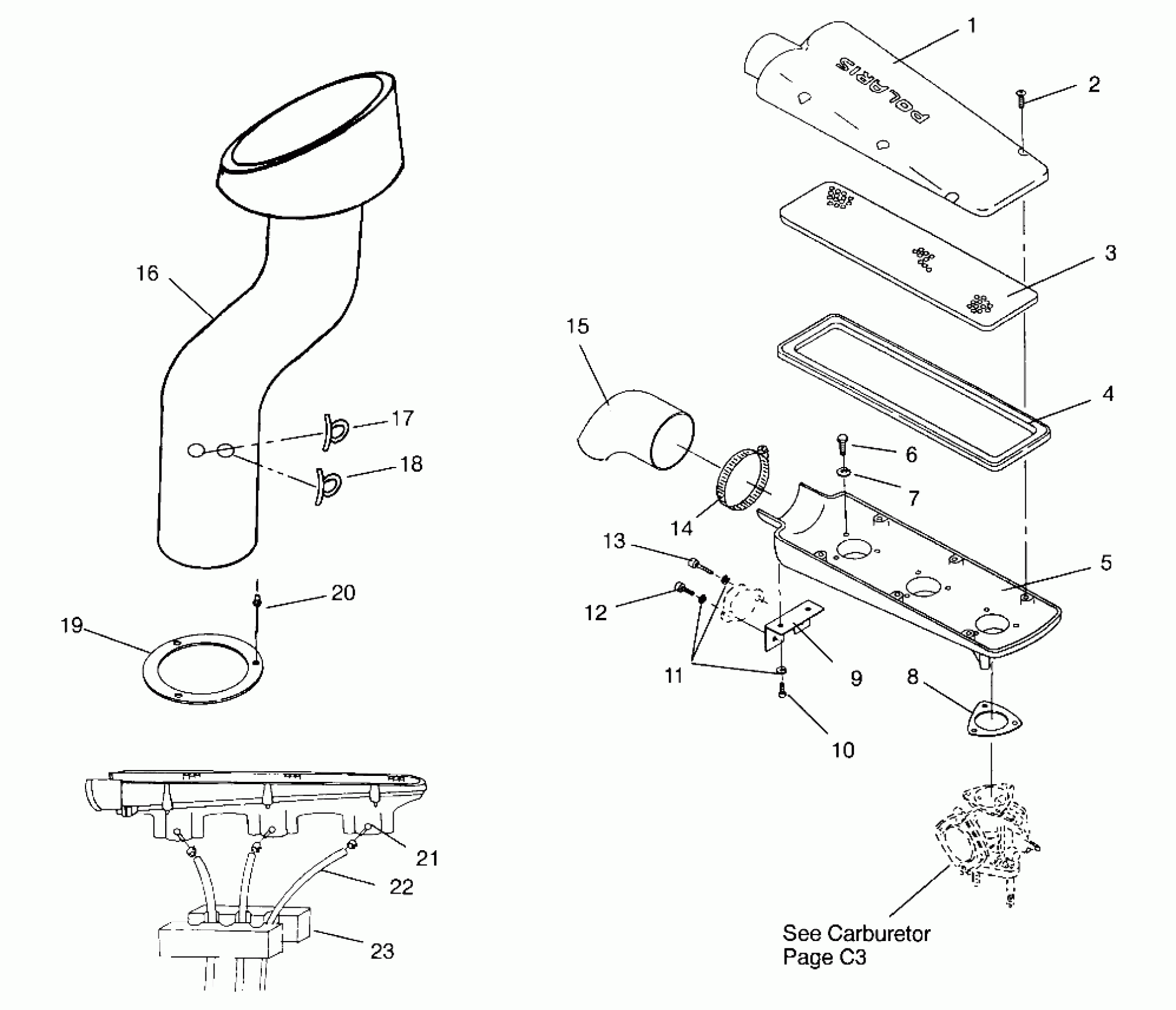

Polaris SL 750 - B954070 AIR VENT SL 750 B954070 (4930523052B007) Diagram

INTAKE,UPPER MANIFOLD

SCREW(10)

SCREEN, INTAKE

GASKET,INT.SCREEN

INTAKE ASM,LOW,W/OIL FITTING

BOLT(10)

WASHER, LOCK(10)

GASKET,ARRESTOR/CARB.

BRKT, FUEL PUMP,WELD.

BOLT, S.S.(10)

WASHER, LOCK, S.S.(10)

BOLT(10)

BOLT(10)

CLAMP, HOSE, S.S.(10)

DUCT,INLET,AIR(SHORT) (Short)

DUCT,INTAKE,(HULL AIR)

RETAINER,FUEL VENT(10)

RETAINER,VENT OIL(10)

SEAL,AIR INT.DUCT

RIVET(50)

Check Valve (See Pg. , Ref. )

Vinyl Pipe (See Pg. , Ref. )

T-CLIP(10)
