HULL and BODY ASSEMBLY SL 750 B944070 (4927012701002A)

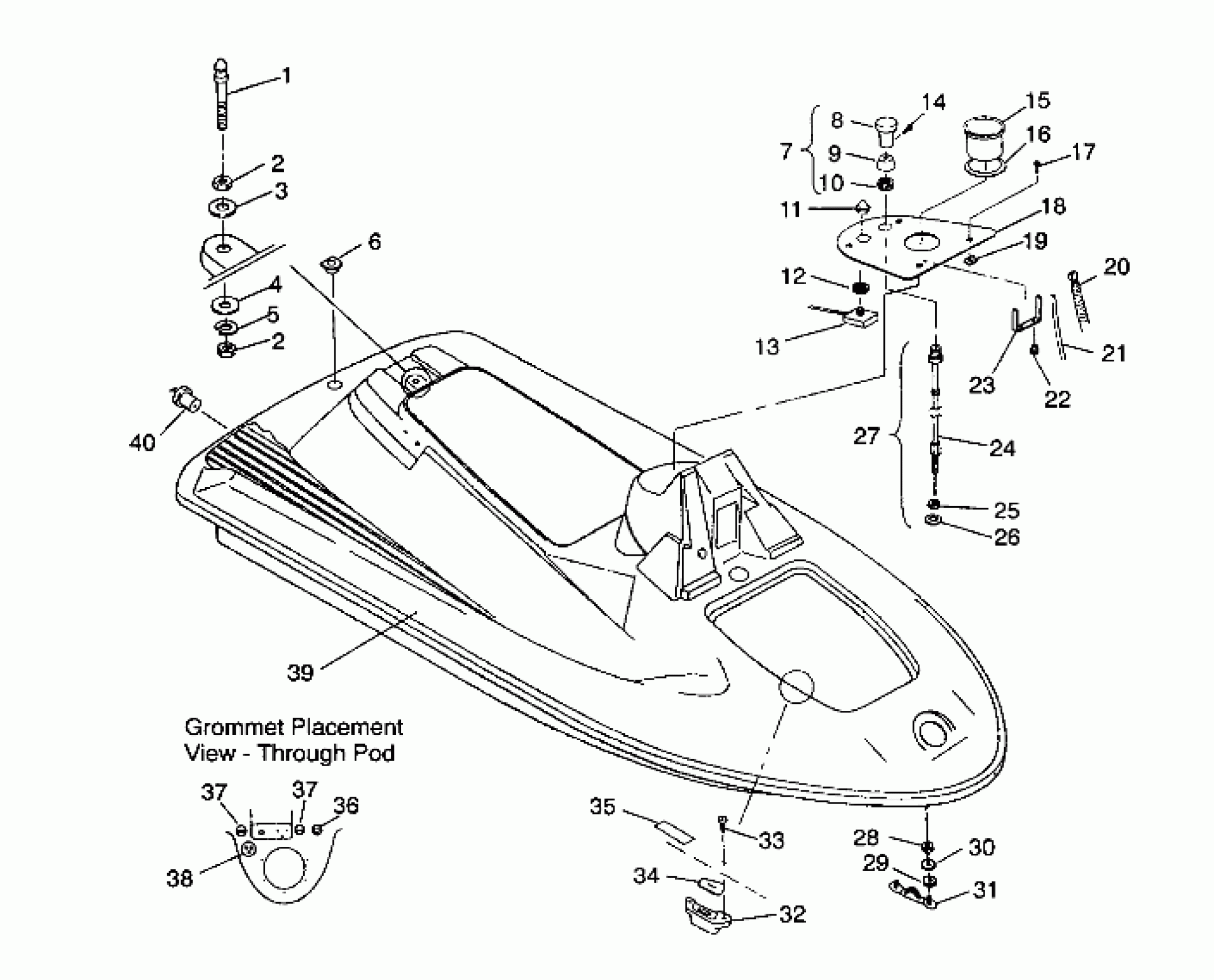

Polaris SL 750 - B944070 HULL and BODY ASSEMBLY SL 750 B944070 (4927012701002A) Diagram
#
1
PLUNGER,LATCH
5020753
Unavailable
2
NUT, HEX, S.S.,(10)
7542454
Unavailable
2
NUT, HEX, S.S.,(10)
7542454
Unavailable
3
WASHER, FLAT(10)
7555845
Unavailable
4
WASHER, FLAT(10)
7555846
$5.59
5
WASHER, LOCK, S.S.(10)
7552607
Unavailable
6
EYELET,R.PURP.VELVET
5431404-194
Unavailable
7
KIT, CHOKE, (PWC) (Incl. 8-10,14)
2200428
Unavailable
8
KNOB,CHOKE
2080004
Unavailable
9
COVER
2080003
Unavailable
10
NUT
2080002
Unavailable
11
BOOT,THREADED,WATER
7080477
Unavailable
12
NUT,BRASS,(10)
7544501
Unavailable
13
SWITCH,STARTER
4110163
Unavailable
14
Screw
2080005
Unavailable
15
GAUGE,MULTI-FUNCTION
3280147
Unavailable
16
GASKET,GAUGE
5810989
Unavailable
17
SCREW, SS.(10)
7512047
Unavailable
18
PANEL,INST,WHITE
5431757-133
Unavailable
19
CLIP,'U',S.S.(10)
7670077
Unavailable
20
HARNESS,WIRE,MFD.
2460480
Unavailable
21
FUEL LINE,(196 CM.) Substituted by 8450058-427
8450058-196
Unavailable
22
NUT,LOCK,NYLON,(10)
7542142
Unavailable
23
BRKT,MOUNTING
5240411
Unavailable
24
CABLE, CHOKE
7080448
Unavailable
25
NUT
2010125
Unavailable
26
WASHER
2010126
Unavailable
27
CONTROL ASM, CHOKE (Incl. 8-10,14,24)
2080001
Unavailable
28
NUT,NYLOK,S.S.(10)
7542133
Unavailable
29
WASHER,RUBBER(10)
7555870
Unavailable
30
WASHER, FLAT, S.S.(10)
7555839
Unavailable
31
STRAP, BOW
2670150
Unavailable
32
STOP,DOOR SUPPORT Substituted by 5431960
5431446
Unavailable
33
SCREW(10)
7512049
Unavailable
34
SEAL,DOOR SUPPORT
5810571
Unavailable
35
DECAL,DOOR,COMPARTMENT
7073717
Unavailable
36
GROMMET
5410718
Unavailable
37
GROMMET,CONTROL CABLE
5410635
Unavailable
37
GROMMET,CONTROL CABLE
5410635
Unavailable
38
GROMMET,FUEL LINE
5410669
Unavailable
39
BOAT BODY ASM. [No Longer Available] (Incl.2,4-6, Housing Shaft & Thru-Hull)
2631618
Unavailable
40
PLUG, BAIL
7010046
Unavailable
