HULL and BODY ASSEMBLY SL 750 B944070 (4927012701001A)

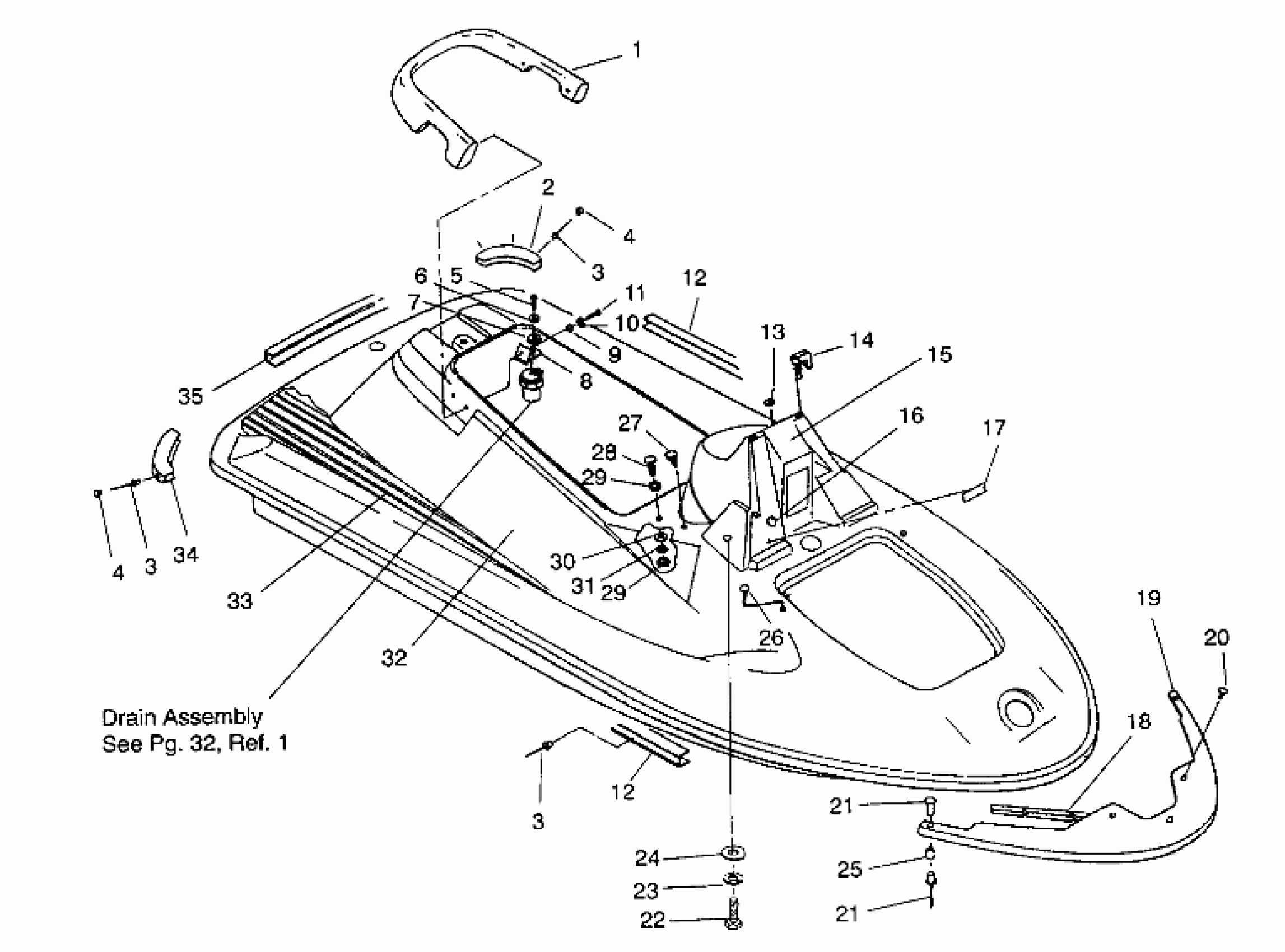

Polaris SL 750 - B944070 HULL and BODY ASSEMBLY SL 750 B944070 (4927012701001A) Diagram
#
1
HANDLE,GRAB,RUB.RED Substituted by 5431729-182
5431392-182
Unavailable
2
BUMPER,LH,R.,PUR.VEL. Substituted by 2201026-194
5431561-194
Unavailable
3
RIVET(50)
7621480
Unavailable
3
RIVET(50)
7621480
Unavailable
3
RIVET(50)
7621480
Unavailable
4
PLUG,R.BUMPER Substituted by 5431994-194
5431560-194
Unavailable
4
PLUG,R.BUMPER Substituted by 5431994-194
5431560-194
Unavailable
5
SCREW, S.S.(10)
7516805
Unavailable
6
WASHER, LOCK(10)
7552613
Unavailable
7
WASHER(10)
7555882
$2.07
8
BRKT,SEPARATOR,WATER
5431825
Unavailable
9
WASHER, FLAT, S.S.,(10)
7555835
Unavailable
10
WASHER, LOCK, S.S.(10)
7552610
Unavailable
11
BOLT(10)
7515374
Unavailable
12
RAIL,RUB,SIDE,PURP.VELVET
5521309-194
Unavailable
12
RAIL,RUB,SIDE,PURP.VELVET
5521309-194
Unavailable
13
GROMMET
5410720
$5.75
14
BUMPER,CORNER
5431740
Unavailable
15
POD,STRG,METAL.BLK. Substituted by 5432146-177
5431586-177
Unavailable
16
Grommet, Vent
5410682
Unavailable
17
DECAL,RECOMMEND.OIL Substituted by 7074959
7073469
Unavailable
18
FILLER, F.BUMPER
5431595
Unavailable
19
BUMPER,FR,PUR.VEL.
5410631-194
Unavailable
20
CLIP,PLASTIC DART(10) Substituted by 7670084-194
7670084
Unavailable
21
FASTENER,2PC,(10)
7621506
Unavailable
21
FASTENER,2PC,(10)
7621506
Unavailable
22
BOLT(10)
7515127
Unavailable
23
WASHER, LOCK, S.S.(10)
7555838
Unavailable
24
WASHER,S.S.(10)
7555891
Unavailable
25
SPACER,FR.BUMPER
5431474
Unavailable
26
BUMPER,DECK
5431741
Unavailable
27
CLIP, XMASTREE(10)
7080514
Unavailable
28
BOLT,SPECIAL,SS.(10)
7515518
Unavailable
29
NUT, HEX, S.S.,(10)
7542454
Unavailable
29
NUT, HEX, S.S.,(10)
7542454
Unavailable
30
WASHER, FLAT(10)
7555841
Unavailable
31
WASHER, LOCK, S.S.(10)
7552607
Unavailable
32
PAD,SIDE,PURP.VELVET
5810860-194
Unavailable
33
PAD,R.FOOTWELL,PURP.VELVET
5810549-194
Unavailable
34
BUMPER,RH,R.,PUR.VEL. Substituted by 2201026-194
5431562-194
Unavailable
35
RAIL,RUB,REAR,PURP.VELVET
5521310-194
Unavailable
