Partiron

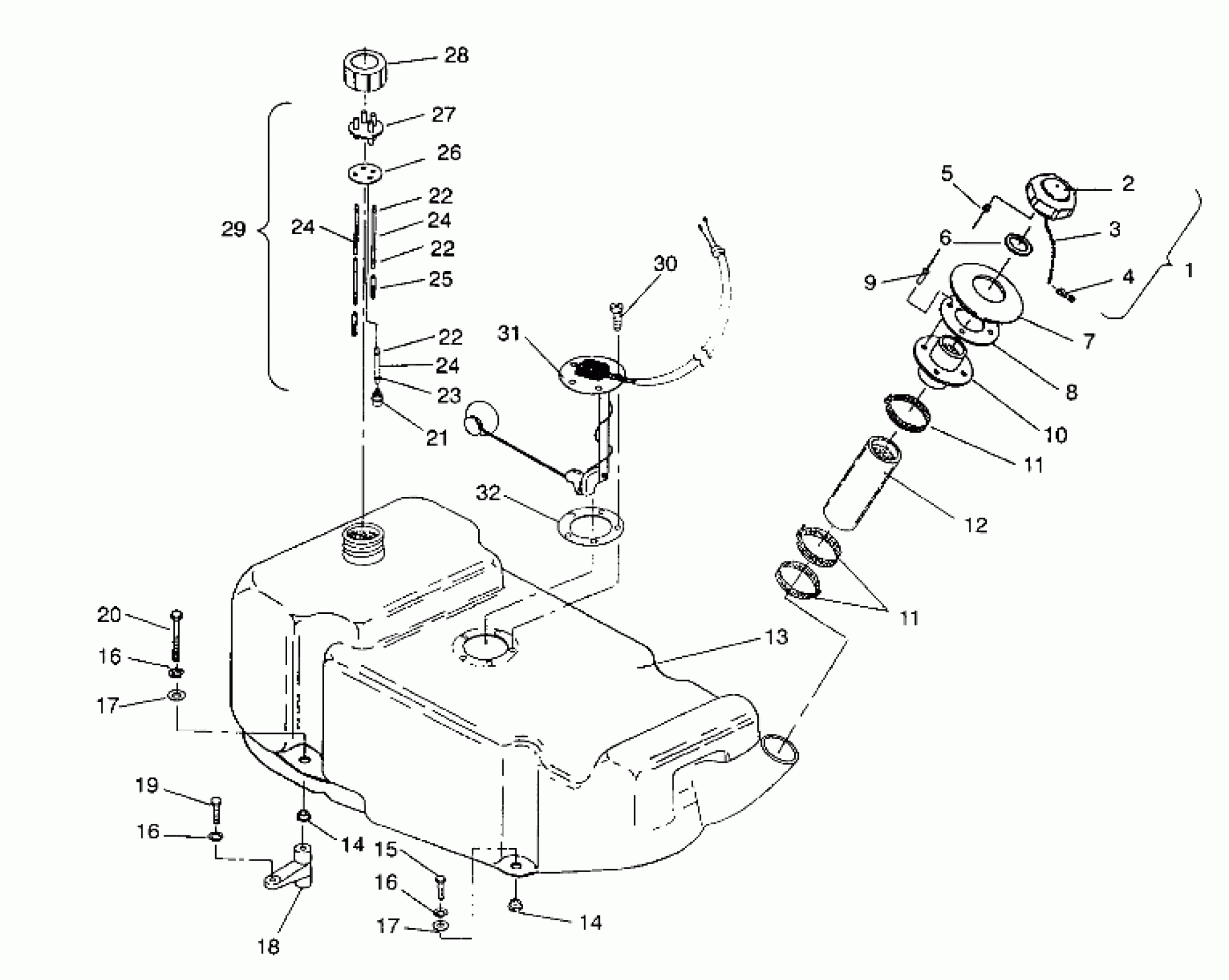

Polaris SL 750 - B944070 FUEL TANK SL 750 B944070 (4927012701005A) Diagram

#

Description
Price

1

CHAIN/FUELCAP ASM (Incl. 2-4)

2653004-133

Unavailable

2

CAP,FUEL,BR.WHITE

2511195-133

Unavailable

3

CHAIN Substituted by 7080710

7080440

Unavailable

4

Coupling

7080442

Unavailable

5

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

6

Gasket, Fuel Cap

5810512

$9.11

7

DESC NOT_AVAILABLE

5410640-170

Unavailable

8

SEAL, FUEL INLET

5810714

Unavailable

9

RIVET(50)

7621479

$1.99

10

INLET,FUEL,WATERCRAFT

5431343

Unavailable

11

CLAMP, HOSE(10)

7080439

$9.59

11

CLAMP, HOSE(10)

7080439

$9.59

12

HOSE, FILL FUEL

5410637

Unavailable

13

TANK,FUEL,W/SEND.UNIT

2511237

Unavailable

14

BUSHING,FUEL,TANK(10)

5333114

Unavailable

14

BUSHING,FUEL,TANK(10)

5333114

Unavailable

15

BOLT, S.S.

7515365

Unavailable

16

WASHER, LOCK, S.S.(10)

7552610

Unavailable

16

WASHER, LOCK, S.S.(10)

7552610

Unavailable

16

WASHER, LOCK, S.S.(10)

7552610

Unavailable

17

WASHER, S.S.(10)

7555834

Unavailable

17

WASHER, S.S.(10)

7555834

Unavailable

18

SUPPORT, FUEL TANK

5630414

Unavailable

19

BOLT(10)

7515374

Unavailable

20

BOLT, S.S.(10)

7515373

Unavailable

21

VALVE,CHECK,2-WAY

7051012

Unavailable

22

RING, COMPRESSION(10)

7080402

$1.60

22

RING, COMPRESSION(10)

7080402

$1.60

22

RING, COMPRESSION(10)

7080402

$1.60

23

CLAMP, HOSE, S.S.(10)

7080476

$6.39

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

25

FUELPICKUP,W/STRAINER

7052037

$12.94

26

GASKET,DROPTUBE HOLDER

5810511

Unavailable

27

HOLDER, DROPTUBE

5431347

Unavailable

28

RETAINER,DROPTUBE HOLDER Substituted by 5020801

5431346

Unavailable

29

HOLDER ASM,DROP TUBE

2520123

Unavailable

30

SCREW(10)

7512056

Unavailable

31

SENDER ASM,FUEL LEVEL

2410032

Unavailable

32

GASKET,SENDING UNIT

5810858

$74.99
