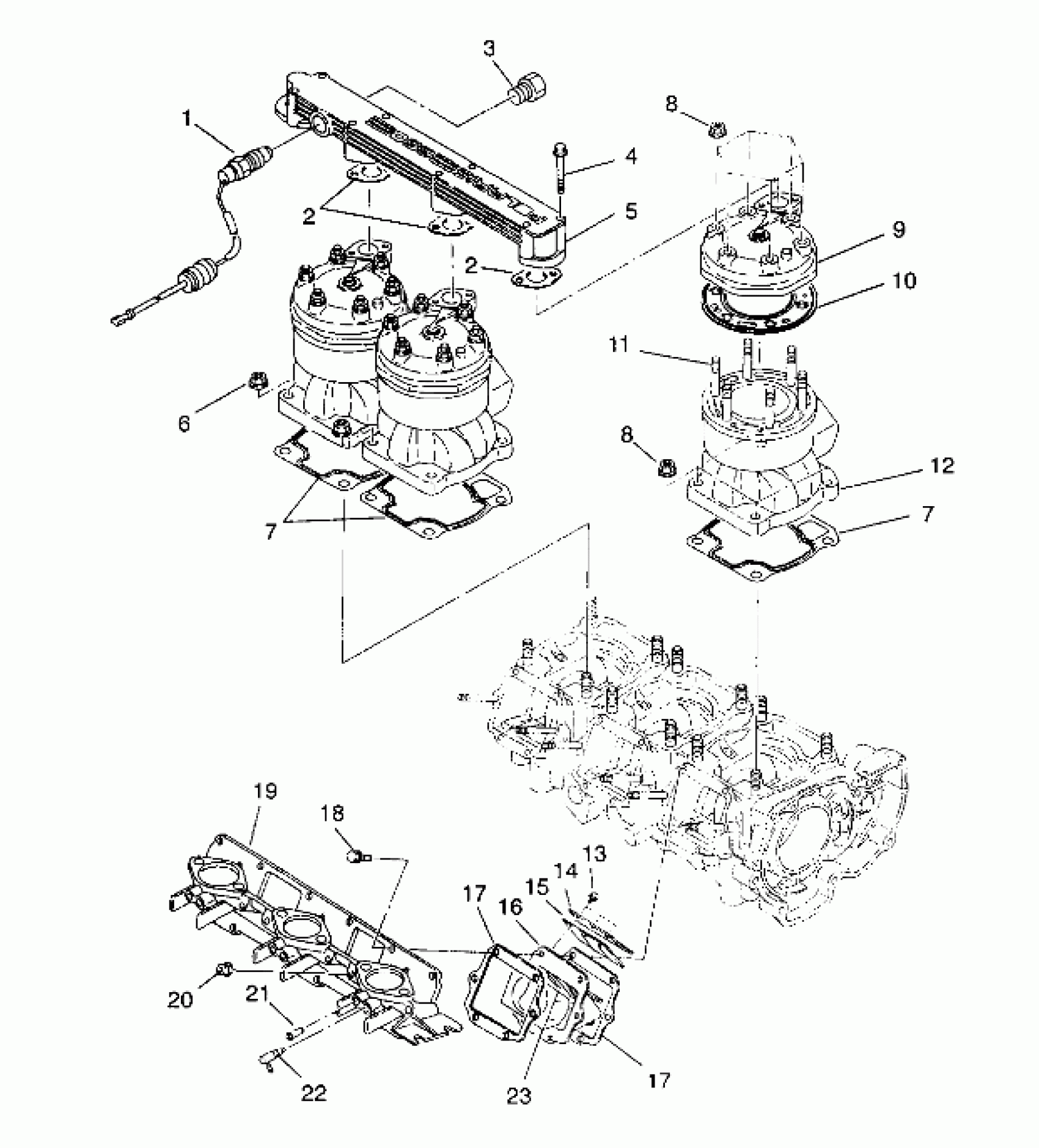

Polaris SL 750 - B944070 CYLINDER and MANIFOLD SL 750 B944070 (4927012701024A) Diagram

#

Description
Price

1

SWITCH,THERMO

3240197

Unavailable

2

GASKET(10)

3082937

Unavailable

2

GASKET(10)

3082937

Unavailable

3

PLUG

3240219

Unavailable

4

BOLT, FLANGE

3240075

Unavailable

5

OUTLET, WATER MANIFOLD

3240218

Unavailable

6

NUT, FLANGE Substituted by 7546906

3240059

Unavailable

7

GASKET, CYLINDER

3240055

Unavailable

7

GASKET, CYLINDER

3240055

Unavailable

8

NUT, FLANGE,(10)

3240058

Unavailable

8

NUT, FLANGE,(10)

3240058

Unavailable

9

HEAD, CYLNDER

3240212

Unavailable

10

GASKET, HEAD

3240213

Unavailable

11

STUD

3240211

Unavailable

12

CYLINDER ASM.

3240210

Unavailable

13

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

14

Stopper

3240065

Unavailable

15

VALVE, REED(10)

3240064

Unavailable

16

VALVE ASM., REED (Incl. 13-15)

3084147

Unavailable

17

GASKET, REED VALVE,(10)

3084148

Unavailable

17

GASKET, REED VALVE,(10)

3084148

Unavailable

18

BOLT, FLANGE

3240062

Unavailable

19

PIPE, INTAKE (Incl. 21,22)

3240192

Unavailable

20

NUT, FLANGE

3240063

Unavailable

21

PIPE

3240061

Unavailable

22

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

23

STUFFER,(REED VALVE ASM.)

3240164

$9.91
