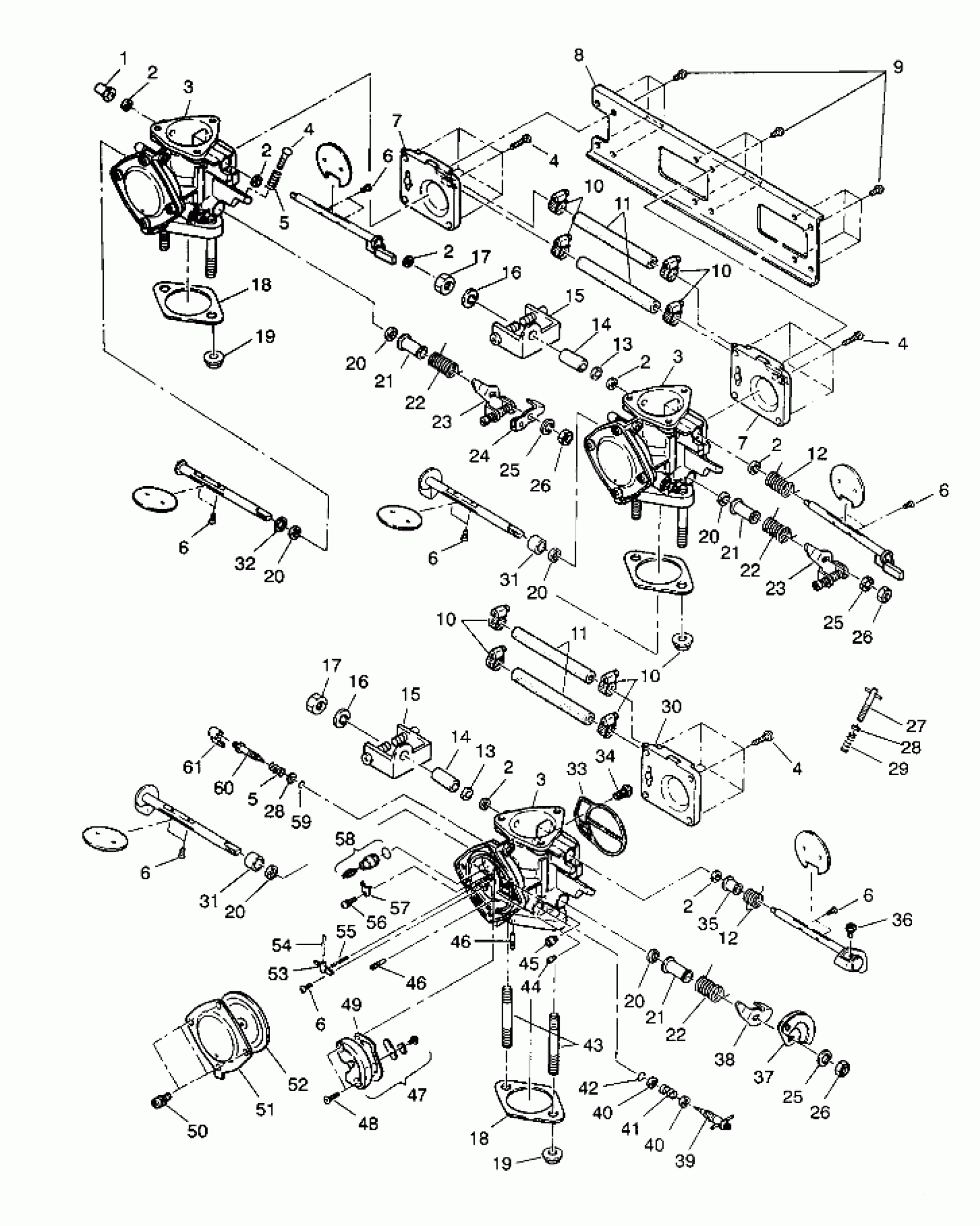

Polaris SL 750 - B944070 CARBURETOR ASSEMBLY SL 750 B944070 (4927012701027A) Diagram

#

Description
Price

1

RING

3140025

$1.67

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

2

SEAL

3140022

$4.92

3

CARBURETOR ASM. (Incl. 1-4, 6-12,20-23,25-61)

3140083

Unavailable

3

CARBURETOR ASM. (Incl. 1-4, 6-12,20-23,25-61)

3140083

Unavailable

3

CARBURETOR ASM. (Incl. 1-4, 6-12,20-23,25-61)

3140083

Unavailable

4

SCREW

3140027

$1.90

4

SCREW

3140027

$1.90

4

SCREW

3140027

$1.90

4

SCREW

3140027

$1.90

5

SPRING

3140054

$1.83

5

SPRING

3140054

$1.83

6

SCREW Substituted by 3140065

3140005

Unavailable

6

SCREW Substituted by 3140065

3140005

Unavailable

6

SCREW Substituted by 3140065

3140005

Unavailable

6

SCREW Substituted by 3140065

3140005

Unavailable

6

SCREW Substituted by 3140065

3140005

Unavailable

6

SCREW Substituted by 3140065

3140005

Unavailable

6

SCREW Substituted by 3140065

3140005

Unavailable

7

COVER

3140075

$49.52

7

COVER

3140075

$49.52

8

PLATE

3140008

$81.75

9

SCREW

3140009

$1.59

10

CLAMP

3140028

$9.52

10

CLAMP

3140028

$9.52

10

CLAMP

3140028

$9.52

10

CLAMP

3140028

$9.52

11

HOSE

3140029

Unavailable

11

HOSE

3140029

Unavailable

12

SPRING

3140020

$4.92

12

SPRING

3140020

$4.92

13

RING

3140080

Unavailable

13

RING

3140080

Unavailable

14

RING

3140076

$3.33

14

RING

3140076

$3.33

15

SHAFT ASM,CHOKE

3140077

$29.84

15

SHAFT ASM,CHOKE

3140077

$29.84

16

WASHER, SPRING

3140078

Unavailable

16

WASHER, SPRING

3140078

Unavailable

17

NUT

3140079

Unavailable

17

NUT

3140079

Unavailable

18

GASKET,CARBURETOR,(10)

3240128

Unavailable

18

GASKET,CARBURETOR,(10)

3240128

Unavailable

19

NUT, FLANGE,(10)

3240058

Unavailable

19

NUT, FLANGE,(10)

3240058

Unavailable

20

SEAL

3140001

Unavailable

20

SEAL

3140001

Unavailable

20

SEAL

3140001

Unavailable

20

SEAL

3140001

Unavailable

20

SEAL

3140001

Unavailable

20

SEAL

3140001

Unavailable

21

RING

3140002

$2.62

21

RING

3140002

$2.62

21

RING

3140002

$2.62

22

SPRING

3140003

Unavailable

22

SPRING

3140003

Unavailable

22

SPRING

3140003

Unavailable

23

LEVER ASM, THROTTLE

3140031

Unavailable

23

LEVER ASM, THROTTLE

3140031

Unavailable

24

LEVER, THROTTLE

3140081

$10.63

25

WASHER, SPRING

3140012

Unavailable

25

WASHER, SPRING

3140012

Unavailable

25

WASHER, SPRING

3140012

Unavailable

26

NUT

3140011

$2.70

26

NUT

3140011

$2.70

26

NUT

3140011

$2.70

27

SCREW ASM.

3140015

$17.46

28

WASHER

3140014

Unavailable

28

WASHER

3140014

Unavailable

29

SPRING

3140013

Unavailable

30

COVER

3140082

$53.17

31

Ring

3140032

Unavailable

31

Ring

3140032

Unavailable

32

PACKING

3140030

Unavailable

33

O-RING,(GASKET)

3140006

$48.99

34

FILTER

3140039

$7.84

35

RING

3140021

Unavailable

36

SCREW

3140019

Unavailable

37

LEVER ASM,THROTTLE

3140010

$13.89

38

LEVER, THROTTLE

3140004

$12.30

39

ADJUSTER

3140050

Unavailable

40

WASHER

3140052

Unavailable

40

WASHER

3140052

Unavailable

41

SPRING

3140051

$1.83

42

O-Ring

3140053

$5.65

43

BOLT

3140026

$19.05

44

JET,PILOT,#75 (#75)

3140063

Unavailable

45

JET,MAIN,#90 (#90)

3140084

Unavailable

46

SCREW,(1)

3140018

Unavailable

46

SCREW,(1)

3140018

Unavailable

47

BODY ASM.

3140066

Unavailable

48

SCREW,(10)

3140034

Unavailable

49

GASKET

3140043

Unavailable

50

SCREW,(10)

3140046

$2.06

51

COVER

3140045

$2.46

52

DIAPHRAGM ASM.

3140044

Unavailable

53

ARM

3140041

$9.84

54

PIN

3140036

Unavailable

55

SPRING(10)

3130491

Unavailable

56

SCREW,(10)

3140038

$1.43

57

PLATE

3140037

Unavailable

58

NEEDLEVALVE ASM.

3140040

Unavailable

59

RING

3140049

$9.70

60

ADJUSTER

3140048

Unavailable

61

CAP

3140047

$4.13
