Description

Price

1

INTAKE,UPPER MANIFOLD

5431406-157

Unavailable

2

SCREW(10)

7512060

Unavailable

3

SCREEN, INTAKE

5222779

Unavailable

4

GASKET,INT.SCREEN

5410687

Unavailable

5

MANIFOLD,INTAKE,LOW.

5131020

Unavailable

6

BOLT(10)

7516801

Unavailable

7

WASHER, LOCK(10)

7552613

Unavailable

7

WASHER, LOCK(10)

7552613

Unavailable

8

GASKET,ARRESTOR/CARB.

5830013

Unavailable

9

BRKT, FUEL PUMP,WELD.

1060103

Unavailable

10

BOLT, S.S.(10)

7515121

Unavailable

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

BOLT(10)

7515127

Unavailable

13

BOLT(10)

7515129

Unavailable

14

CLAMP, HOSE, S.S.(10)

7080457

Unavailable

15

DUCT,AIR INLET Substituted by 5432063

5431867

Unavailable

16

BOLT, S.S.(10)

7512041

Unavailable

17

WASHER, FLAT, S.S.(10)

7555837

Unavailable

18

SEAL,AIR INT.DUCT

5410650

Unavailable

19

NUT, WELL(10)

7541901

$6.39

20

DUCT,AIR INTAKE Substituted by 5432065

5431737

Unavailable

21

RETAINER, VENT HOSE

5521266

Unavailable

22

RIVET(50)

7621479

$1.99

23

CLAMP-HOSE, 1.750-SS

7080560

$11.19

23

CLAMP-HOSE, 1.750-SS

7080560

$11.19

24

HOSE,DRAIN,AIR INTAKE DUCT

5410873

Unavailable

25

FITTING,THRU-HULL

1060113

Unavailable

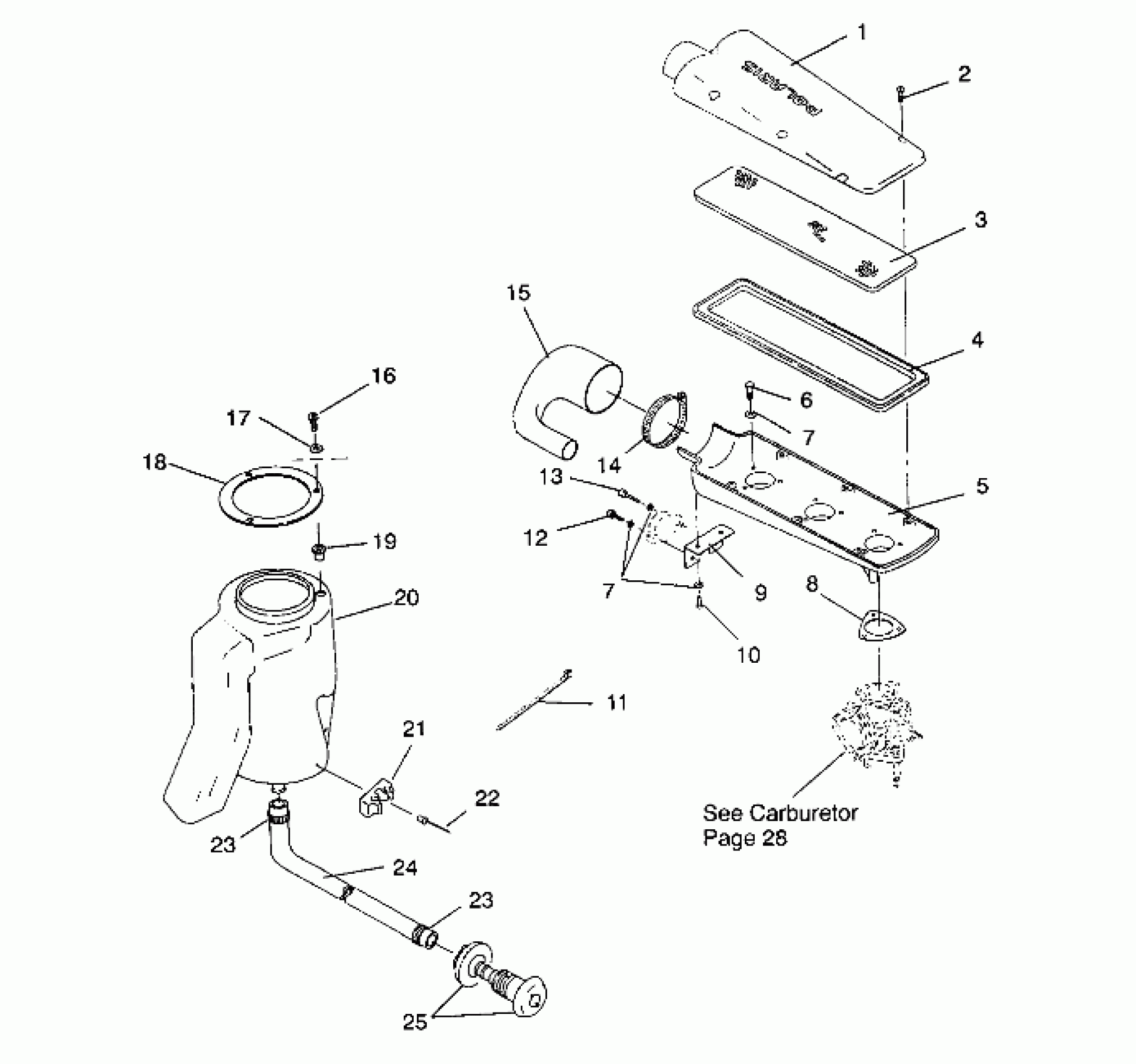

Polaris SL 750 - B944070 AIR VENT SL 750 B944070 (4927012701017A) Diagram

INTAKE,UPPER MANIFOLD

SCREW(10)

SCREEN, INTAKE

GASKET,INT.SCREEN

MANIFOLD,INTAKE,LOW.

BOLT(10)

WASHER, LOCK(10)

WASHER, LOCK(10)

GASKET,ARRESTOR/CARB.

BRKT, FUEL PUMP,WELD.

BOLT, S.S.(10)

CABLE-TIE,DIA12-50MM,WTHR-RES.

BOLT(10)

BOLT(10)

CLAMP, HOSE, S.S.(10)

DUCT,AIR INLET Substituted by 5432063

BOLT, S.S.(10)

WASHER, FLAT, S.S.(10)

SEAL,AIR INT.DUCT

NUT, WELL(10)

DUCT,AIR INTAKE Substituted by 5432065

RETAINER, VENT HOSE

RIVET(50)

CLAMP-HOSE, 1.750-SS

CLAMP-HOSE, 1.750-SS

HOSE,DRAIN,AIR INTAKE DUCT

FITTING,THRU-HULL
