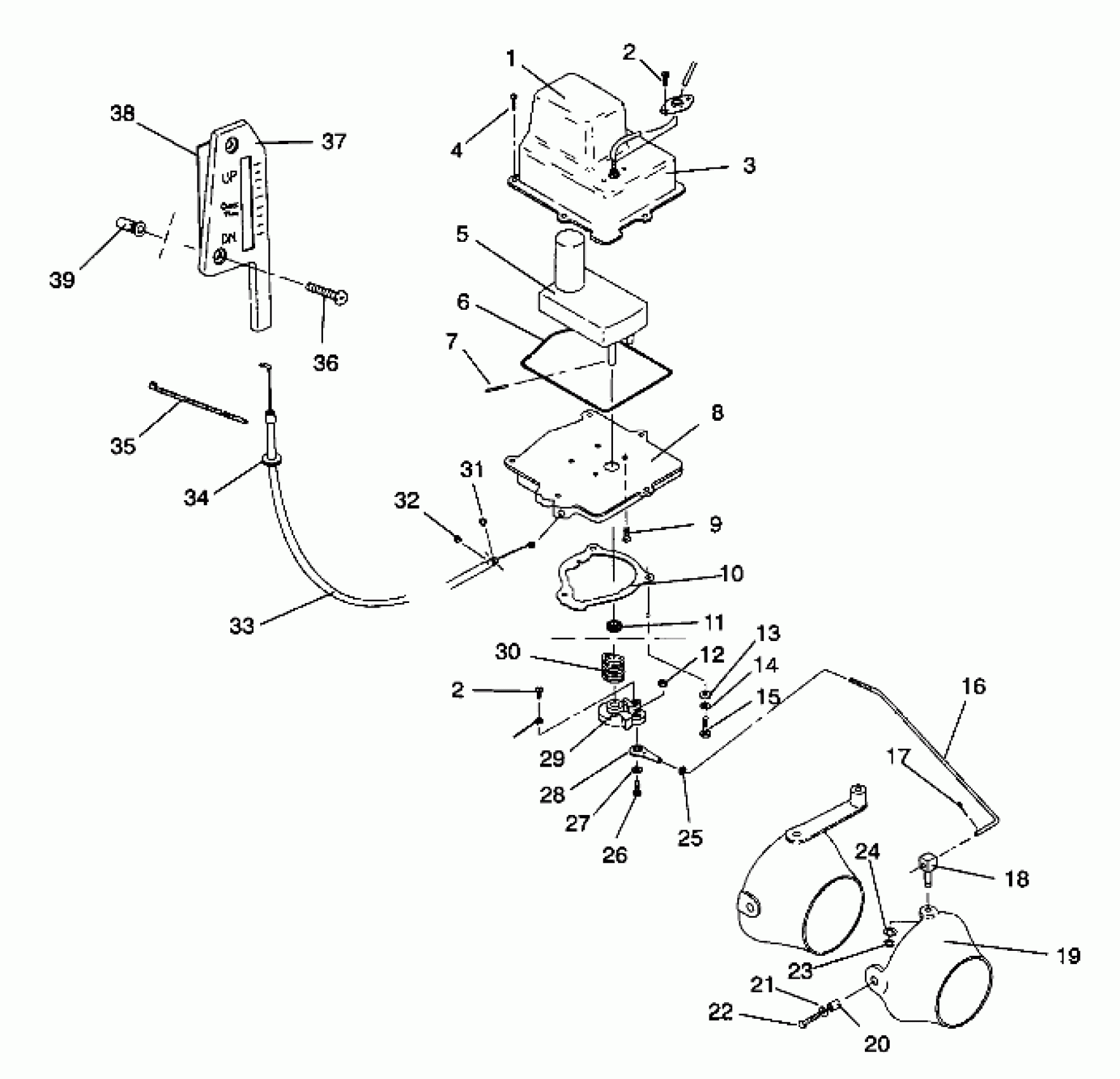

Polaris SL 750 - B934070 TRIM PACKAGE SL 750 / B934070 (4924752475014A) Diagram

#

Description
Price

1

COVER,TRIM MTR.

5431551

$77.99

2

SCREW(10)

7511873

Unavailable

3

HARNESS, TRIM

2460411

Unavailable

4

SCREW(10) Substituted by 7512052

7512055

Unavailable

5

GEAR ASM, MOTOR

4170004

Unavailable

6

O RING,MTR.COVER

5410756

Unavailable

7

PIN, DRIVE Substituted by 7661418

7661417

Unavailable

8

BASE, MOTOR

5630448

$15.87

9

SCREW(10)

7511872

$2.54

10

GASKET, MOTOR BASE

5810818

Unavailable

11

SEAL, OIL Substituted by 3610042

3610041

Unavailable

12

NUT, HEX, S.S.(10)

7541931

$5.99

13

WASHER, FLAT, S.S.(10)

7555839

Unavailable

14

WASHER, LOCK, S.S.(10)

7555838

Unavailable

15

BOLT(10)

7515127

Unavailable

16

LINKAGE,THREADED

5224492

Unavailable

17

PIN, COTTER(10)

7661010

$1.19

18

SWIVEL, ROD END Substituted by 5131463

5130939

Unavailable

19

NOZZLE, TRIM

5431558

Unavailable

20

Collar

5130938

Unavailable

21

WASHER,FLAT,S.S.(10)

7555874

$2.38

21

WASHER,FLAT,S.S.(10)

7555874

$2.38

22

BOLT, S.S.(10)

7515361

$2.19

23

RING-E,RET.(10)

7710427

Unavailable

24

WASHER(10)

7555866

Unavailable

25

NUT (10)

1860102

Unavailable

26

BOLT, S.S.(10)

7512041

$2.54

27

WASHER, FLAT, S.S.(10)

7555837

$1.59

28

ROD END, S.S.

7060154

Unavailable

29

LEVER, TRIM

5431550

$10.63

30

SPRING,GEAR RETAINING Substituted by 7041469

7041298

Unavailable

31

RING,RETAINING(10)

7710429

$2.54

32

RING,RETAINING,EXT.(10)

7710428

Unavailable

33

CABLE,TRIM INDICATOR

7080497

Unavailable

34

GROMMET,TRIM MOTOR

5410771

Unavailable

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

36

BOLT, SS.(10)

7512045

$4.99

37

TRIM,INDIC.,WHITE

5431564-133

Unavailable

38

DECAL, INDICATOR

7073866

Unavailable

39

INSERT, BRASS(10)

7541932

$3.65
