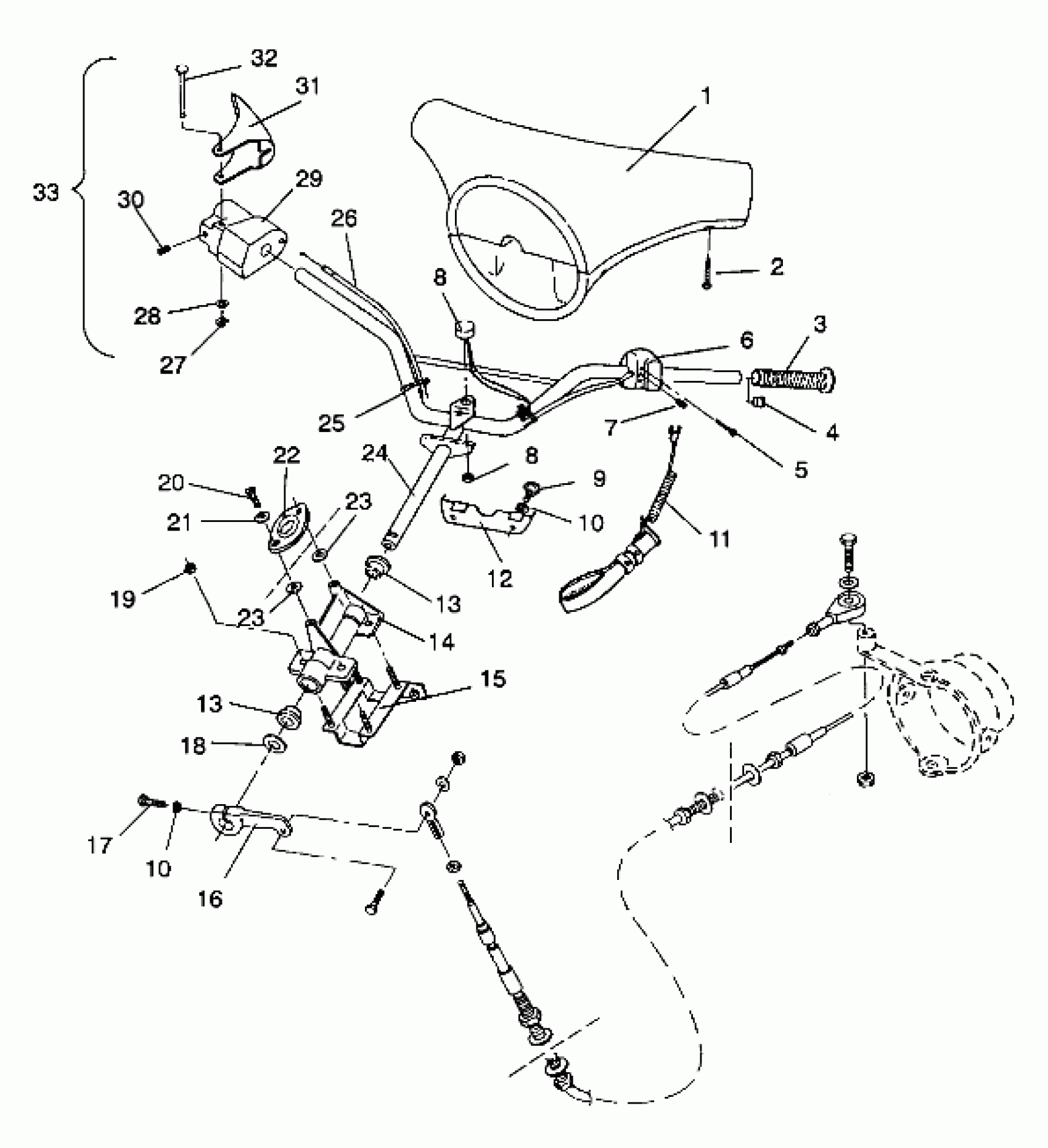

Polaris SL 750 - B934070 STEERING ASSEMBLY SL 750 / B934070 (4924752475009A) Diagram

#

Description
Price

1

PAD,H'BAR,COOLBLUE Substituted by 5432791-164

5431629-164

Unavailable

2

SCREW, SS.(10)

7512047

$1.99

3

GRIP,H'BAR,COOLBLUE

5410638-164

Unavailable

4

CAPLUG(10)

7080467

Unavailable

5

SCREW(10)

7516602

$3.33

6

SWITCH, STOP/TRIM

4110144

$166.67

7

SCREW, S.S.(10)

7516601

$3.17

8

INDICATOR'OILTEMP'

4040030

$56.99

8

INDICATOR'OILTEMP'

4040030

$56.99

9

BOLT, SHOULDER(10) Substituted by 7515387

7515371

$7.94

10

WASHER, LOCK, S.S.(10)

7552610

Unavailable

10

WASHER, LOCK, S.S.(10)

7552610

Unavailable

11

CORD, TETHER Substituted by 7080675

7080518

Unavailable

12

STOP, STEERING

5222677

Unavailable

13

BUSHING,STRG.SUPPORT

5431382

Unavailable

13

BUSHING,STRG.SUPPORT

5431382

Unavailable

14

SUPPORT,HUB,STRG. Substituted by 5130974-067

5130832-067

Unavailable

15

PLATE, BOLT

1060101

Unavailable

16

ARM,STEERING,BLK. Substituted by 5131441

5130958-067

$113.99

17

BOLT(10)

7515370

$2.68

18

BUSH.(10)

7555875

$7.94

19

NUT, HEX, S.S.(10)

7542335

Unavailable

20

SCREW, S.S.(10)

7512051

$1.27

21

WASHER, FLAT, S.S.(10)

7555837

$1.59

22

BRKT, RECEIVER

5431427

Unavailable

23

WASHER, FLAT(10)

7555861

Unavailable

23

WASHER, FLAT(10)

7555861

Unavailable

24

POST,STEERING,W/H'BAR. Substituted by 1823175

1823160

Unavailable

25

CABLE, TIE

7080346

Unavailable

26

CABLE, THROTTLE

7080449

Unavailable

27

RING,RETAIN.EXT.,S.S.(10)

7710426

Unavailable

28

WASHER, FLAT, S.S.(10)

7555840

$3.33

29

BLOCK,THROTTLE CONTROL

5431396

Unavailable

30

SCREW, SET, S.S.(10)

7515115

Unavailable

31

LEVER,THROTTLE CONTROL

5431397

Unavailable

32

Pin, Retaining

7661628

Unavailable

33

THROTTLE CONTROL ASM. (Incl.27-32)

2010122

Unavailable
