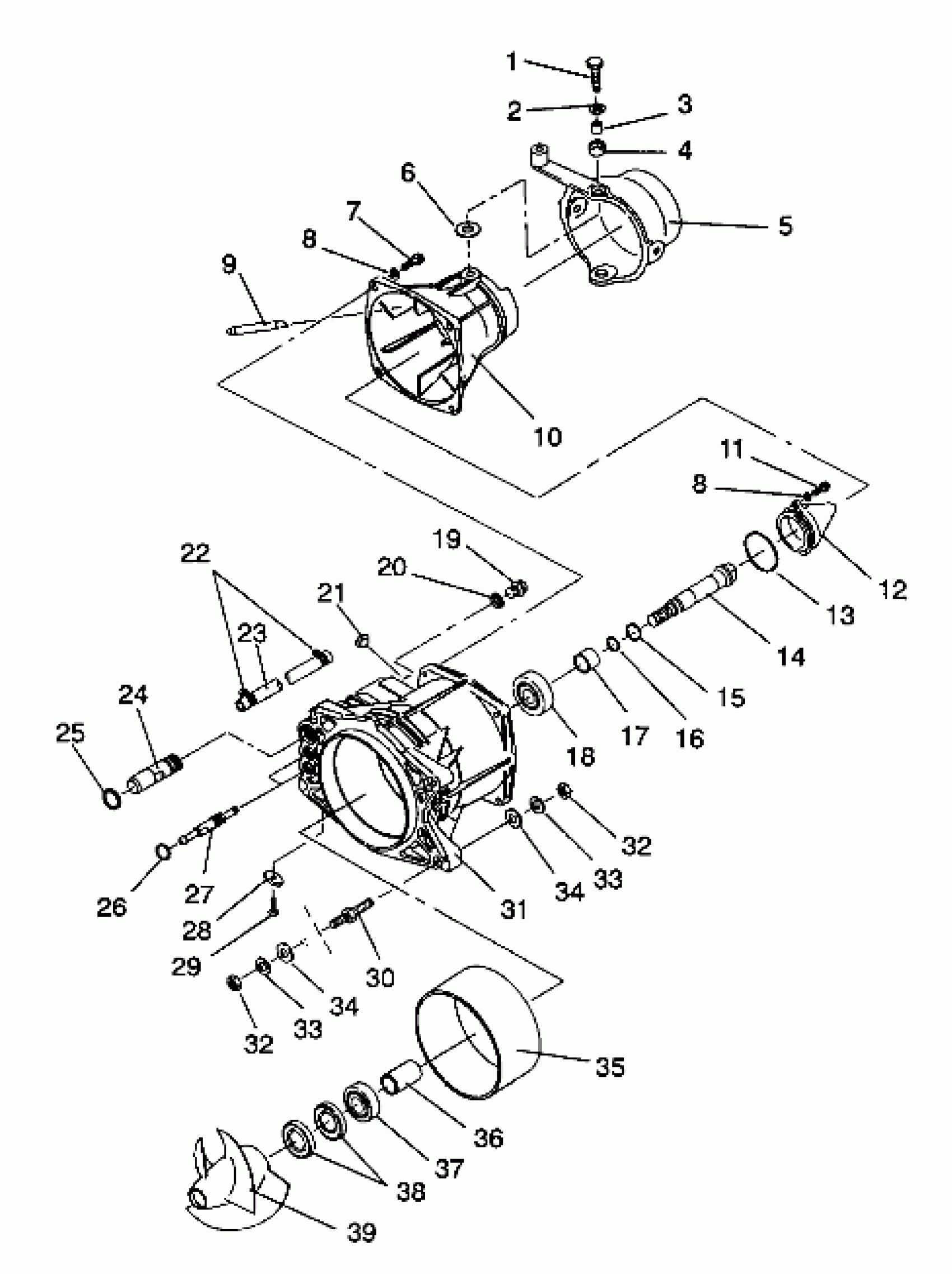

Polaris SL 750 - B934070 PROPULSION SL 750 / B934070 (4924752475013A) Diagram

#

Description
Price

1

BOLT

3240185

$2.06

2

WASHER

3240186

Unavailable

3

COLLAR

3240021

Unavailable

4

BEARING, SLEEVE

3240019

Unavailable

5

NOZZLE, STEERING,(SL750) (Incl. 4)

3240149

$113.99

6

WASHER, FRICTION

3240022

Unavailable

7

BOLT(10)

7516717

$3.33

8

WASHER, LOCK(10)

7552613

Unavailable

8

WASHER, LOCK(10)

7552613

Unavailable

9

PIPE, WATER

3240013

$72.62

10

NOZZLE, OUTLET (Incl. 9)

3240012

Unavailable

11

BOLT(10)

7516718

$1.59

12

CONE, TAIL

3240025

$42.46

13

O-RING,TAIL CONE

3240026

$1.67

14

SHAFT, STUB

3240139

Unavailable

15

O-RING,STUB SHAFT

3240015

$1.19

16

O-RING,STUB SHAFT

3240016

$1.67

17

COLLAR 2,STUB SHAFT

3240017

$57.19

18

BALLBEARING

3240007

Unavailable

19

BOLT, PLUG

7517101

$9.59

20

SEAL, COPPER

3610036

Unavailable

21

PLUG

3240138

Unavailable

22

CLAMP-HOSE,.875-SS

7080474

$8.54

23

HOSE 2, WATER

3240027

Unavailable

24

PIPE, WATER

3240008

Unavailable

25

O RING,(10)

5410735

$0.79

26

O-RING (10)

5410734

Unavailable

27

PIPE, BILGE

3240009

Unavailable

28

PLATE,ZINC

3240131

Unavailable

29

SCREW(10)

3240160

Unavailable

30

STUD,PUMP MTG. Substituted by 5020804

5020614

Unavailable

31

HOUSING,IMPELLER (Incl. 35)

3240136

$389.37

32

NUT, HEX, S.S.,(10)

7542454

Unavailable

32

NUT, HEX, S.S.,(10)

7542454

Unavailable

33

WASHER, LOCK, S.S.(10)

7552607

$1.39

33

WASHER, LOCK, S.S.(10)

7552607

$1.39

34

WASHER, FLAT(10)

7555841

Unavailable

34

WASHER, FLAT(10)

7555841

Unavailable

35

RING, WEAR

3240137

Unavailable

36

COLLAR 1,STUB SHAFT

3240005

$12.30

37

BALLBEARING

3240004

Unavailable

38

SEAL,OIL,STUB SHAFT

3240006

Unavailable

39

IMPELLER,(17/20 DEG.)

5130949

Unavailable
