FUEL TANK SL 750 / B934070 (4924752475005A)

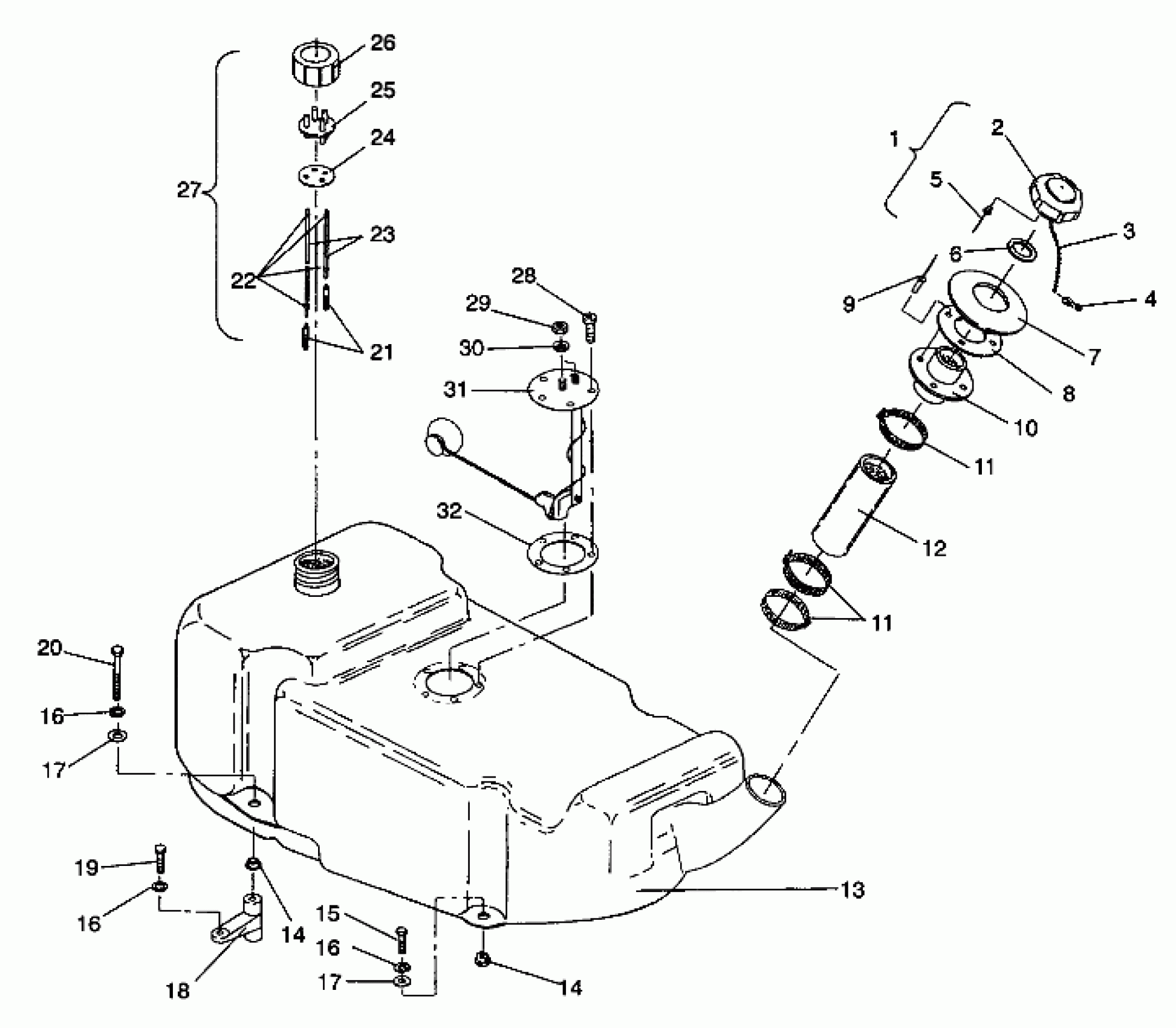

Polaris SL 750 - B934070 FUEL TANK SL 750 / B934070 (4924752475005A) Diagram
#
1
CHAIN ASM,FUELCAP RETAINER [No Longer Available] (Incl. 2-4)
2653004
Unavailable
2
CAP,FUEL,BR.WHITE
2511195-133
Unavailable
3
CHAIN Substituted by 7080710
7080440
Unavailable
4
Coupling
7080442
Unavailable
5
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
6
Gasket, Fuel Cap
5810512
$9.11
7
GROMMET
5410640-157
Unavailable
8
SEAL, FUEL INLET
5810714
Unavailable
9
RIVET(50)
7621479
$1.99
10
INLET,FUEL,WATERCRAFT
5431343
Unavailable
11
CLAMP, HOSE(10)
7080439
$9.59
11
CLAMP, HOSE(10)
7080439
$9.59
12
HOSE, FILL FUEL
5410637
Unavailable
13
FUELTANK,(PWC)
5431617
Unavailable
13
TANK,FUEL,W/SEND.UNIT
2511230
Unavailable
14
BUSHING,FUEL,TANK(10)
5333114
Unavailable
14
BUSHING,FUEL,TANK(10)
5333114
Unavailable
15
BOLT, S.S.
7515365
Unavailable
16
WASHER, LOCK, S.S.(10)
7552610
Unavailable
16
WASHER, LOCK, S.S.(10)
7552610
Unavailable
16
WASHER, LOCK, S.S.(10)
7552610
Unavailable
17
WASHER, S.S.(10)
7555834
Unavailable
17
WASHER, S.S.(10)
7555834
Unavailable
18
SUPPORT, FUEL TANK
5630414
Unavailable
19
BOLT(10)
7515374
Unavailable
20
BOLT, S.S.(10)
7515373
Unavailable
21
FUELPICKUP,W/STRAINER
7052037
$12.94
22
RING, COMPRESSION(10)
7080402
$1.60
23
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
24
GASKET,DROPTUBE HOLDER
5810511
Unavailable
25
HOLDER, DROPTUBE
5431347
Unavailable
26
RETAINER,DROPTUBE HOLDER Substituted by 5020801
5431346
Unavailable
27
HOLDER ASM,DROP TUBE
2520123
Unavailable
28
SCREW(10)
7512056
Unavailable
29
NUT, BRASS(10)
7541934
Unavailable
30
WASHER, LOCK(10)
7552615
$4.99
31
SENDER ASM,FUEL LEVEL (Incl. 29,30)
2410018
Unavailable
32
GASKET,SENDING UNIT
5810858
$74.99
