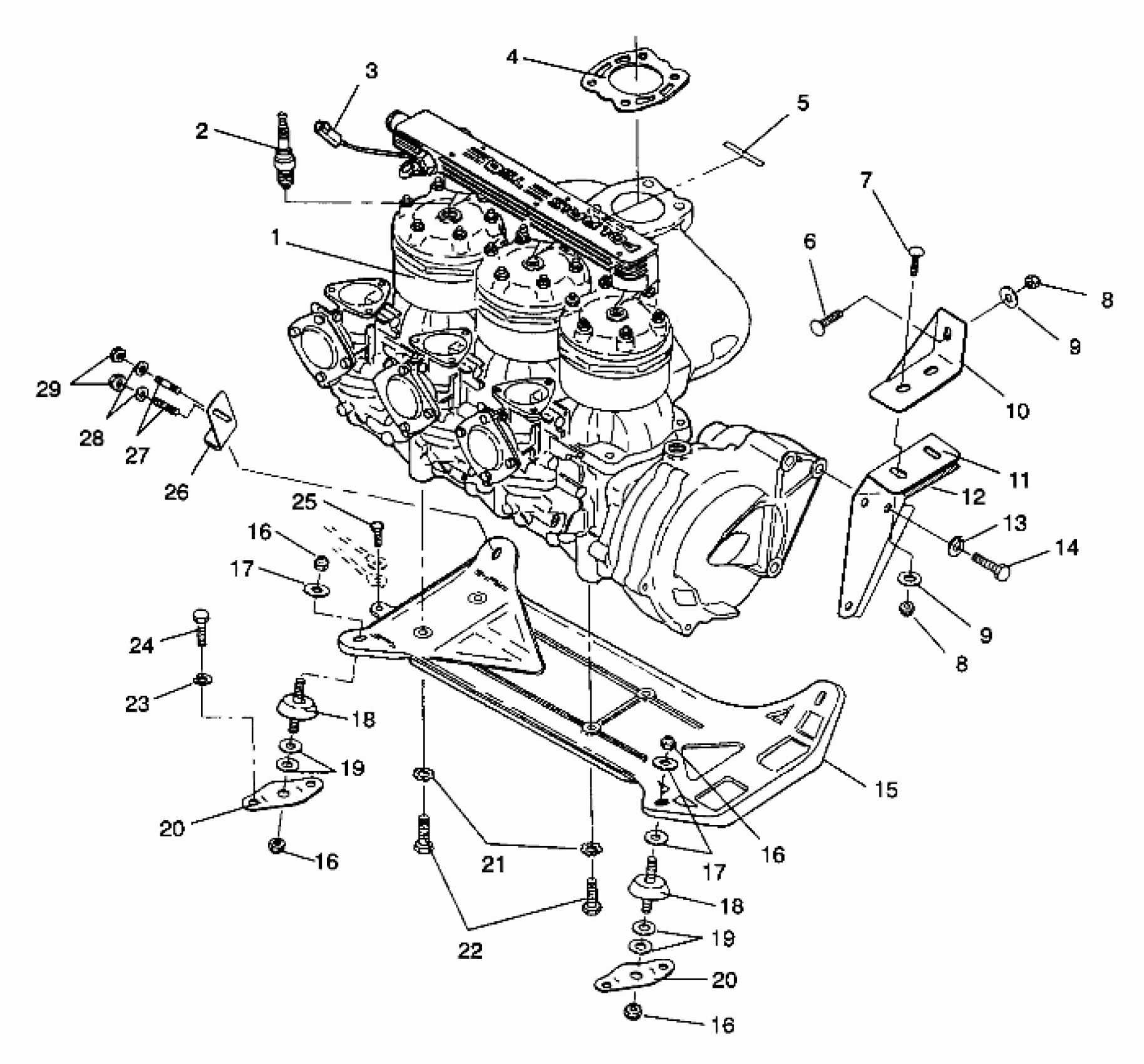

Polaris SL 750 - B934070 ENGINE MOUNTING SL 750 / B934070 (4924752475011A) Diagram

#

Description
Price

1

ENG.EC75-PW-01 [No Longer Available]

1211537

Unavailable

2

SPARKPLUG (10)

3070156

$3.97

3

SENSOR, TEMP.(105C)

2410019

Unavailable

4

GASKET, EXHAUST

5810553

Unavailable

5

DECAL,WARN.ELEC.OPER.

7073712

Unavailable

6

BOLT(10)

7515516

$7.14

7

BOLT(10)

7515517

Unavailable

8

NUT,HEX,S.S.(10)

7542455

Unavailable

8

NUT,HEX,S.S.(10)

7542455

Unavailable

9

WASHER, FLAT(10)

7555841

Unavailable

9

WASHER, FLAT(10)

7555841

Unavailable

10

MOUNT, WELD.

1060102

$113.99

11

BRACE,MUFFLER,LONG

5222959

Unavailable

12

Trim, Edge

8360012-10

$44.51

13

WASHER, LOCK, SS.(10)

7552608

$2.38

14

SCREW, S.S.

7516912

$9.52

15

PLATE, ENG.MOUNT

5630442-157

$240.78

16

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

$3.59

16

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

$3.59

16

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

$3.59

16

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

$3.59

17

WASHER, FLAT, S.S.(10)

7555848

Unavailable

17

WASHER, FLAT, S.S.(10)

7555848

Unavailable

18

MOUNT,RUBBER,ENGINE Substituted by 3110040

3110033

$73.81

18

MOUNT,RUBBER,ENGINE Substituted by 3110040

3110033

$73.81

19

WASHER, FLAT Substituted by 5211727

7555860

Unavailable

19

WASHER, FLAT Substituted by 5211727

7555860

Unavailable

20

BRACKET,ENGINE MT. Substituted by 3110040

5222671

$73.81

20

BRACKET,ENGINE MT. Substituted by 3110040

5222671

$73.81

21

WASHER, LOCK,S.S.(10)

7571625

$2.38

22

BOLT, S.S.(10)

7512573

$1.75

23

WASHER, LOCK, S.S.(10)

7552610

Unavailable

24

BOLT, S.S.(10)

7515361

$2.19

25

SCREW, S.S.(10)

7515114

$3.81

26

BRKT, R.MUFFLER

5222772

$13.21

27

STUD, SPECIAL,S.S.

7515367

$6.35

28

WASHER, FLAT, S.S.(10)

7555831

Unavailable

29

NUT, HEX, S.S.(10)

7542335

Unavailable
