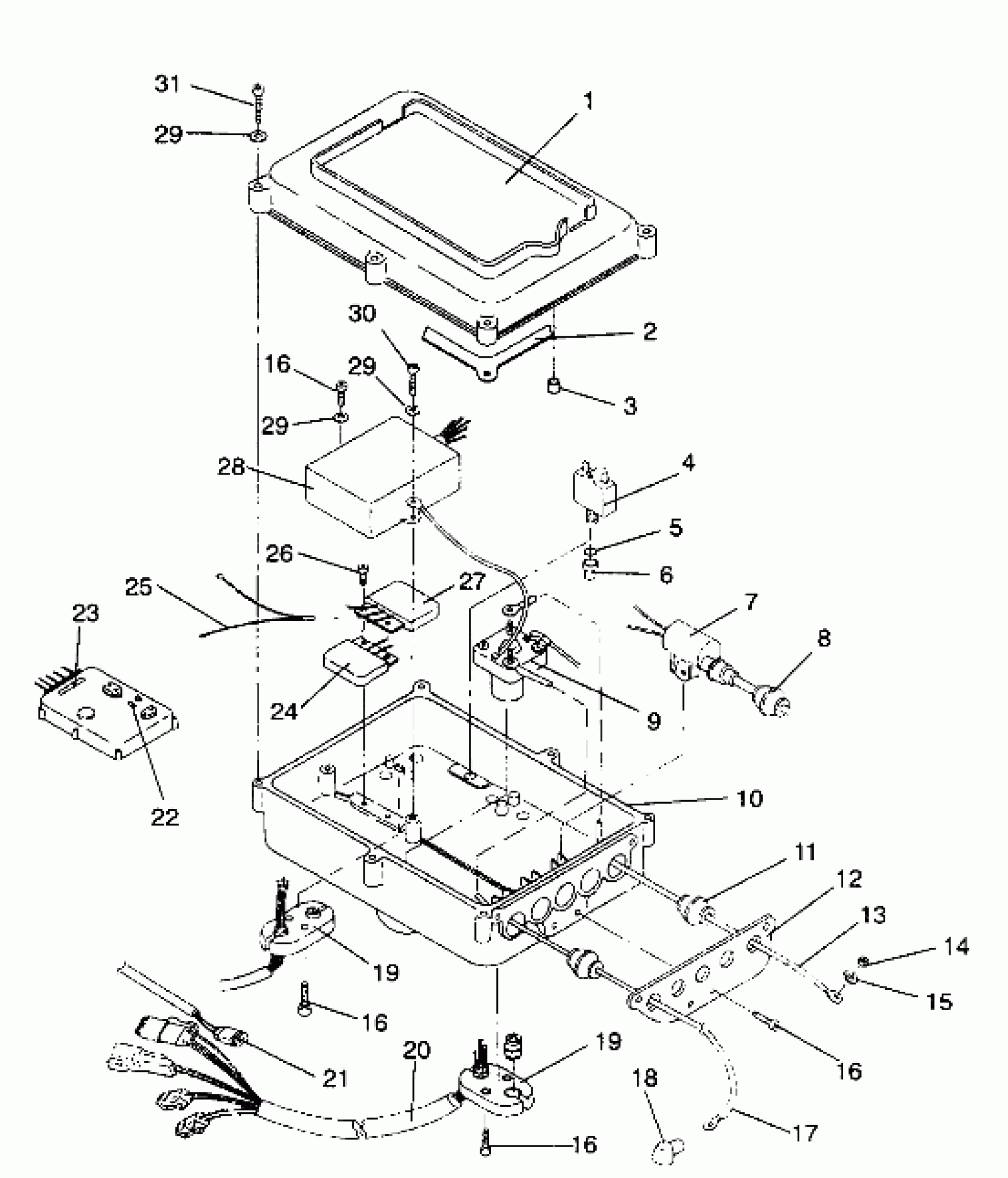

Polaris SL 750 - B934070 ELECTRICAL BOX SL 750 / B934070 (4924752475021A) Diagram

#

Description
Price

1

COVER,ELEC.BOX Substituted by 2200787

5630417

$135.30

2

SEAL,ELECTRIC BOX

5410680

Unavailable

3

BUMPER,ELECT.BOX COVER

5410683

$0.60

4

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

5

O-RING

5410725

$1.03

6

BOOT,THREADED,RED

7080461

$13.99

7

COIL, IGNITION

3240107

Unavailable

8

GROMMET, COIL

5410677

Unavailable

9

SWITCH, MAGNETIC

3240109

Unavailable

10

BASE,ELEC.BOX,MACH.

5130951

Unavailable

11

GROMMET, 16 GA.(10)

5410678

$2.14

12

PLATE, 5-HOLE

5630416

Unavailable

13

CABLE,RED,SOL./START.

4010081

Unavailable

14

NUT, 6 MM.,S.S.(10)

7546705

$4.76

15

WASHER, LOCK(10)

7552613

Unavailable

16

BOLT, S.S.(10)

7515118

Unavailable

16

BOLT, S.S.(10)

7515118

Unavailable

16

BOLT, S.S.(10)

7515118

Unavailable

16

BOLT, S.S.(10)

7515118

Unavailable

17

CABLE,RED,BATT/SOL.

4010082

Unavailable

18

INSULATOR-CABLE

5410346

$7.73

19

PLATE, 2-HOLE

5630415

$12.30

19

PLATE, 2-HOLE

5630415

$12.30

20

HARNESS, MAIN WIRE

2460412

Unavailable

21

HARNESS, FUEL SENSOR

2460413

Unavailable

22

DECAL,ELECT.BOX RESET

7073734

Unavailable

23

DECAL,WARN,HI.VOLT.

7073713

Unavailable

24

REGULATOR/RECTIFIER

4060097

$22.86

25

ADAPTOR, HARNESS

2460365

Unavailable

26

BOLT, S.S.(10)

7512042

Unavailable

27

SWITCH-RECTIFIER

4060101

Unavailable

28

CDI SYSTEM

3240177

Unavailable

29

WASHER(10)

7555836

$3.99

29

WASHER(10)

7555836

$3.99

29

WASHER(10)

7555836

$3.99

30

BOLT(10)

7515128

$1.43

31

BOLT(10)

7515132

Unavailable
