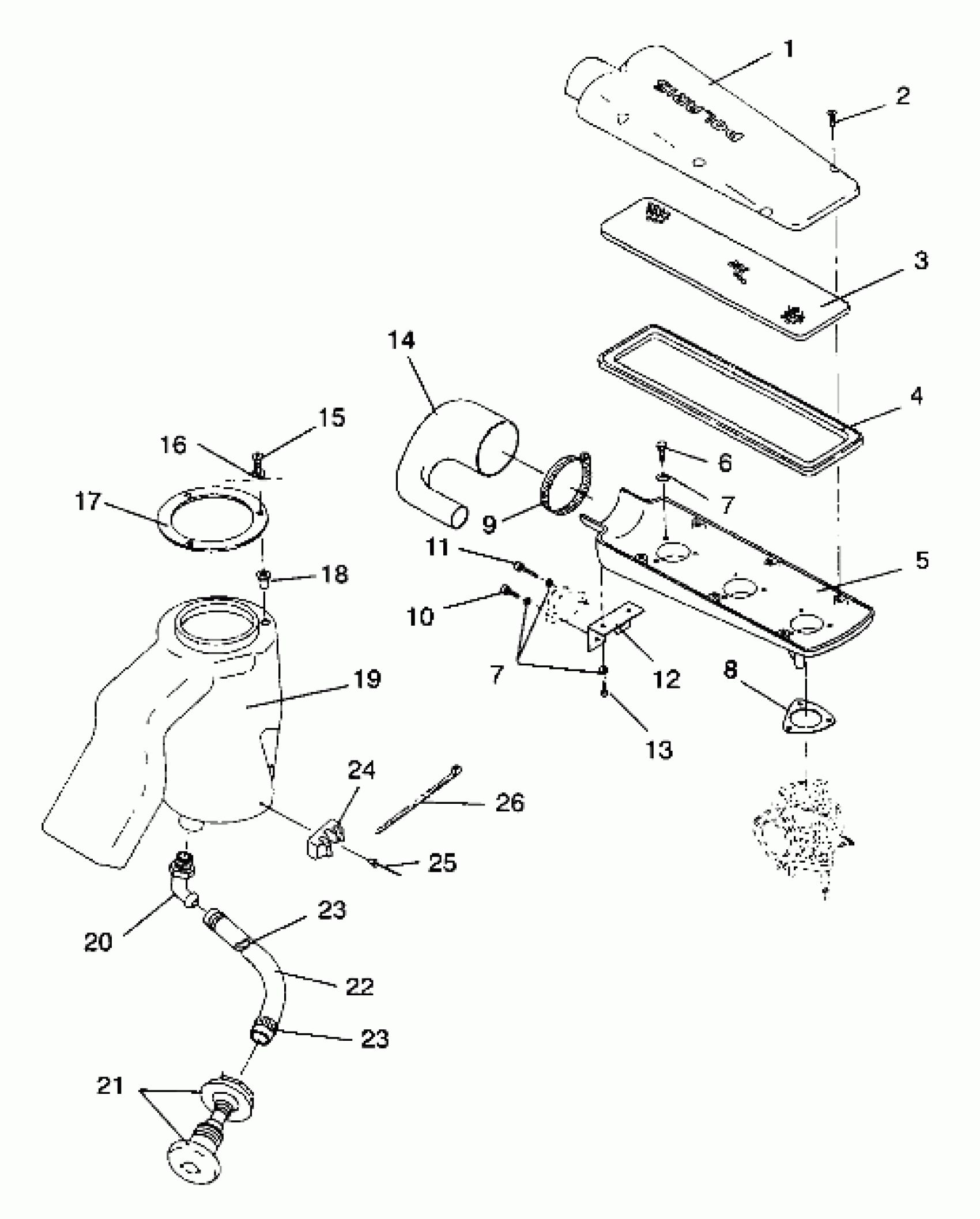

Polaris SL 750 - B934070 AIR VENT SL 750 / B934070 (4924752475017A) Diagram

#

Description
Price

1

INTAKE,UPPER MANIFOLD

5431406-157

Unavailable

2

SCREW(10)

7512052

Unavailable

3

SCREEN, INTAKE

5222779

Unavailable

4

GASKET,INT.SCREEN

5410687

Unavailable

5

MANIFOLD, INTAKE

5130873

$37.87

6

BOLT(10)

7516801

Unavailable

7

WASHER, LOCK, S.S.(10)

7555838

Unavailable

7

WASHER, LOCK, S.S.(10)

7555838

Unavailable

8

GASKET,ARRESTOR/CARB.

5830013

Unavailable

9

CLAMP, HOSE, S.S.(10)

7080457

$11.11

10

BOLT(10)

7515127

Unavailable

11

BOLT(10)

7515129

Unavailable

12

BRKT, FUEL PUMP,WELD.

1060103

Unavailable

13

BOLT, S.S.(10)

7515121

$0.59

14

DUCT, INLET AIR

5431599

$19.68

15

BOLT, S.S.(10)

7512041

$2.54

16

WASHER, FLAT, S.S.(10)

7555837

$1.59

17

SEAL,AIR INT.DUCT

5410650

$5.71

18

NUT, WELL(10)

7541901

$6.35

19

DUCT,LOW.AIR INTAKE

5431370

Unavailable

20

ELBOW

7052073

Unavailable

21

FITTING,THRU HULL,WATER Substituted by 5431444-133

5431444

Unavailable

22

HOSE,BULK,3/4,WATERLINE [No Longer Available]

2871057

Unavailable

23

CLAMP, S.S.(10)

7080470

Unavailable

23

CLAMP, S.S.(10)

7080470

Unavailable

24

RETAINER, VENT HOSE

5521266

Unavailable

25

RIVET(50)

7621479

$1.98

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
